Chapter 7: ECG
VS2000 Vital Signs Monitor Operation Manual 7-5
To change the primary lead:
1. On the ECG waveform menu, highlight LEAD and push the knob to access
the ECG leads submenu.
2. Highlight the desired primary ECG lead and push the knob to select. See the
following tables for the primary lead configuration.
ECG 5-LEAD CONFIGURATION
I Lead I Configuration RA-LA
II Lead II Configuration RA-LL
III Lead III Configuration LA-LL
V Lead V Configuration LA-V
AVF Augmented Lead AVF
AVL Augmented Lead AVL
AVR Augmented Lead AVR
3. Turn the rotary knob to “OK” or “Cancel” to save or delete your settings.
7.5.3 Choose the Waveform Size
If any of the displayed ECG waves is too small or clipped, you can change the
size of the ECG waveforms on the display. The selected size (X1/4, X1/2, X1, X2,
or X4) will appear in the waveform channel. The default size is times one (X1).

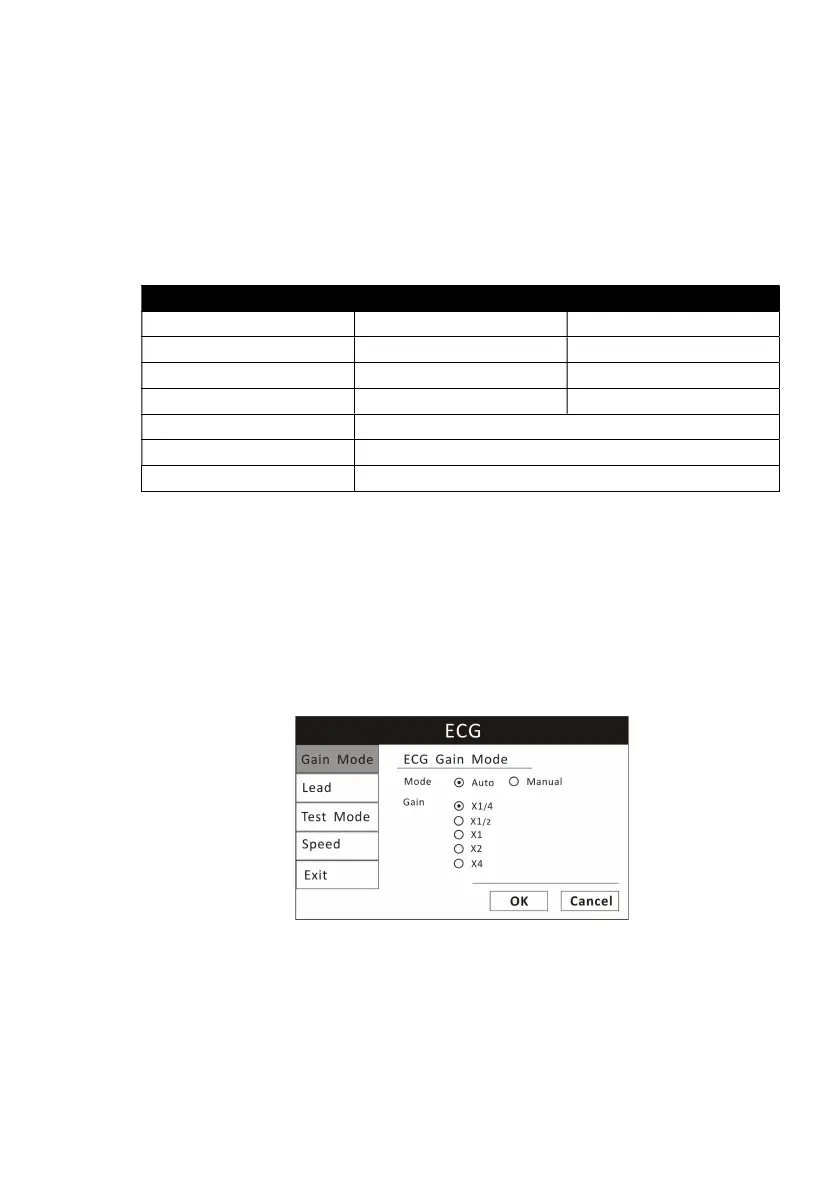

Figure 7.4: Choose Waveform Size
To change the size of the ECG waveform:
1. On the ECG waveform menu, highlight Gain Mode and push the knob to
select.
