Chapter 10: Respiration Rate
VS2000 Vital Signs Monitor Operation Manual 10-3
1. On the RESP waveform menu, highlight Gain Mode and push the knob to
select.
2. Highlight the desired size of the waveform (X1/2, X1, X2, or X4) and push
the knob to select.
3. Turn the rotary knob to “OK” or “Cancel” to save or delete your settings.
10.4.3 Choose the Waveform Speed
You can choose the speed at which the RESP waveform is updated.

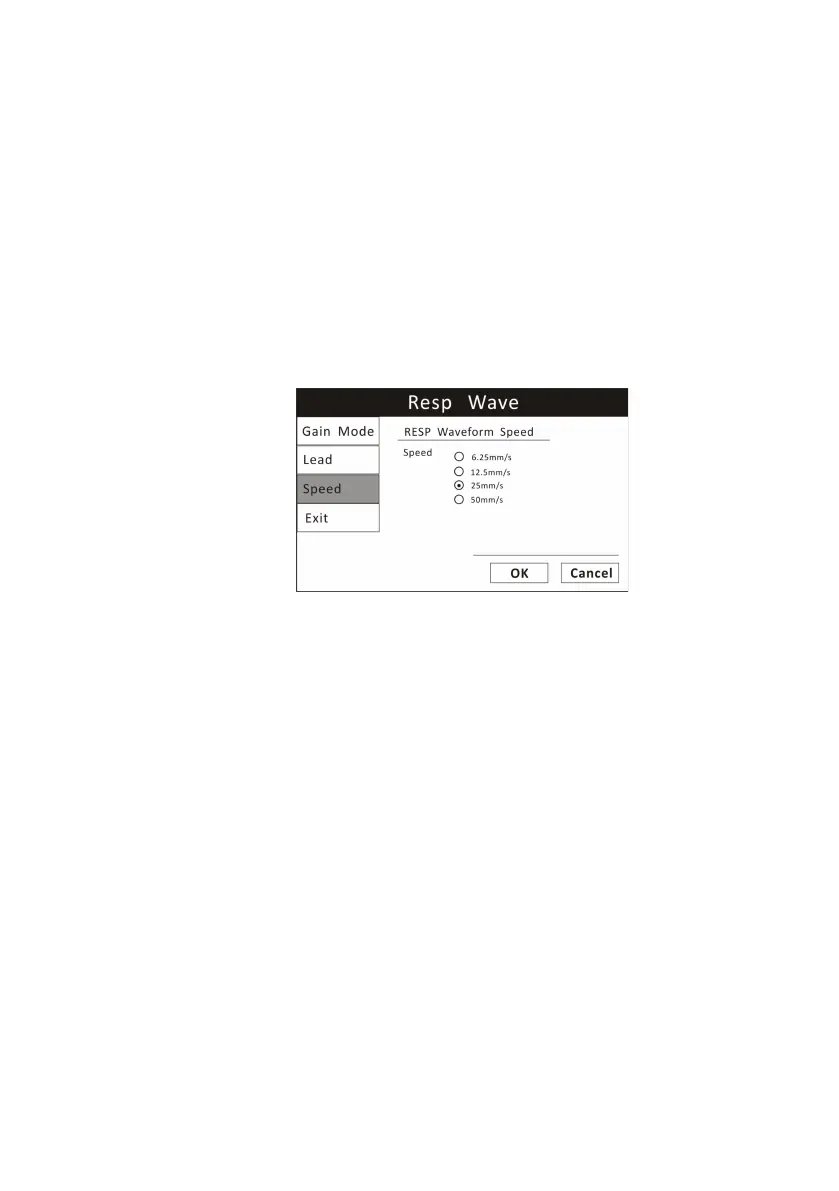

Figure 10.3: Choose RESP Waveform Speed
To change the speed of the RESP Waveform:
1. On the RESP Wave menu, highlight SPEED and push the knob to select.
2. Highlight the desired size of the waveform (6.25, 12.5, 25, or 50 mm/second)
and push the knob to select.
3. Turn the rotary knob to “OK” or “Cancel” to save or delete your settings.
10.5 Adjusting the Settings in the Parameter Box
10.5.1 RR Alarm Setup
