Chapter 10: Respiration Rate
10-2 VS2000 Vital Signs Monitor Operation Manual
You can choose one of the ECG lead as a source to measure the RR from lead I,
II, III. The selected lead will be displayed in the waveform channel.

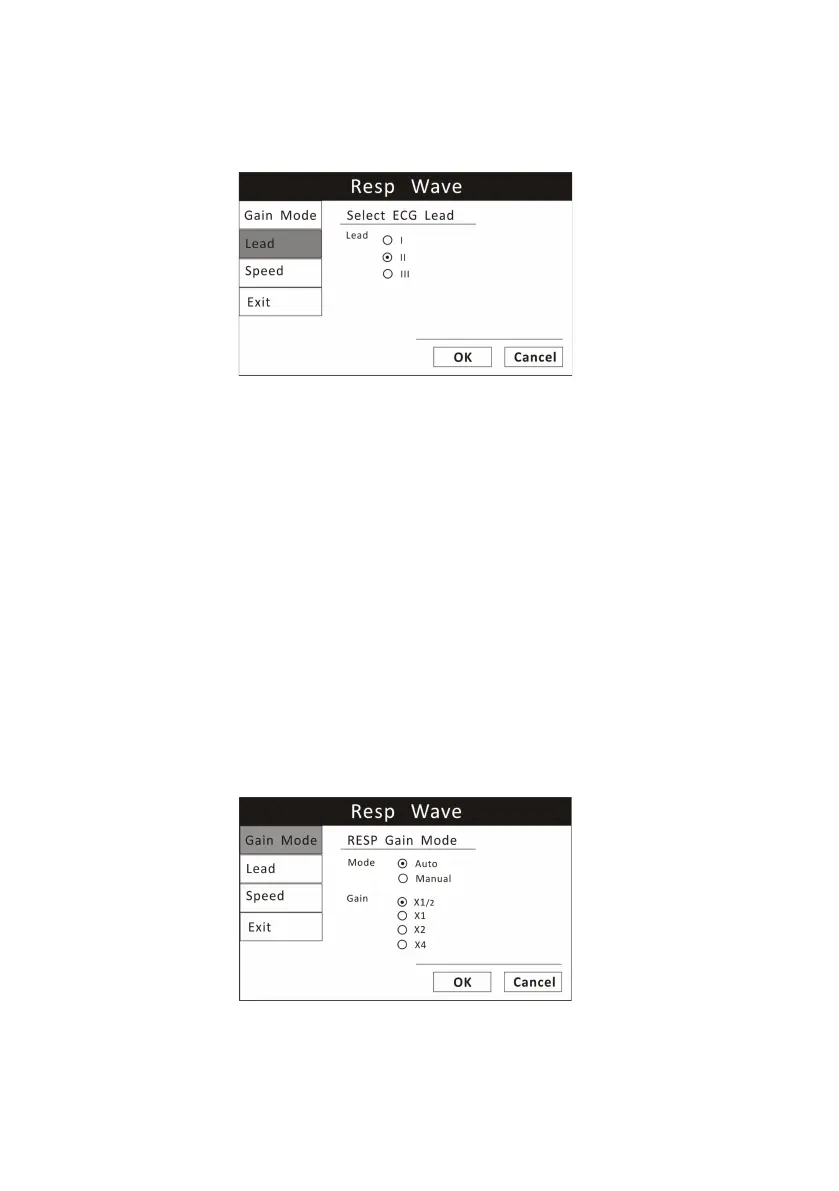

Figure 10.1: Select ECG Lead
To change the ECG lead:
1. On the RESP waveform menu, highlight LEAD and push the knob to access
the submenu.
2. Highlight the desired ECG lead and push the knob to select.
3. Turn the rotary knob to “OK” or “Cancel” to save or delete your settings.
10.4.2 Choose the Waveform Size
If any of the displayed RESP waves is too small or clipped, you can change the
size of the RESP waveforms on the display. The selected size (X1/2, X1, X2, or
X4) will appear in the waveform channel. The default size is times one (X1).
Figure 10.2: Choose RESP Waveform Size
To change the size of the RESP waveform:
