Chapter 4: Setting up the Monitor
VS2000 Vital Signs Monitor Operation Manual 4-11
4.7.1 Customize Display Modes
Besides the above four main display modes, user can also customize the
display modes and save as user format modes.

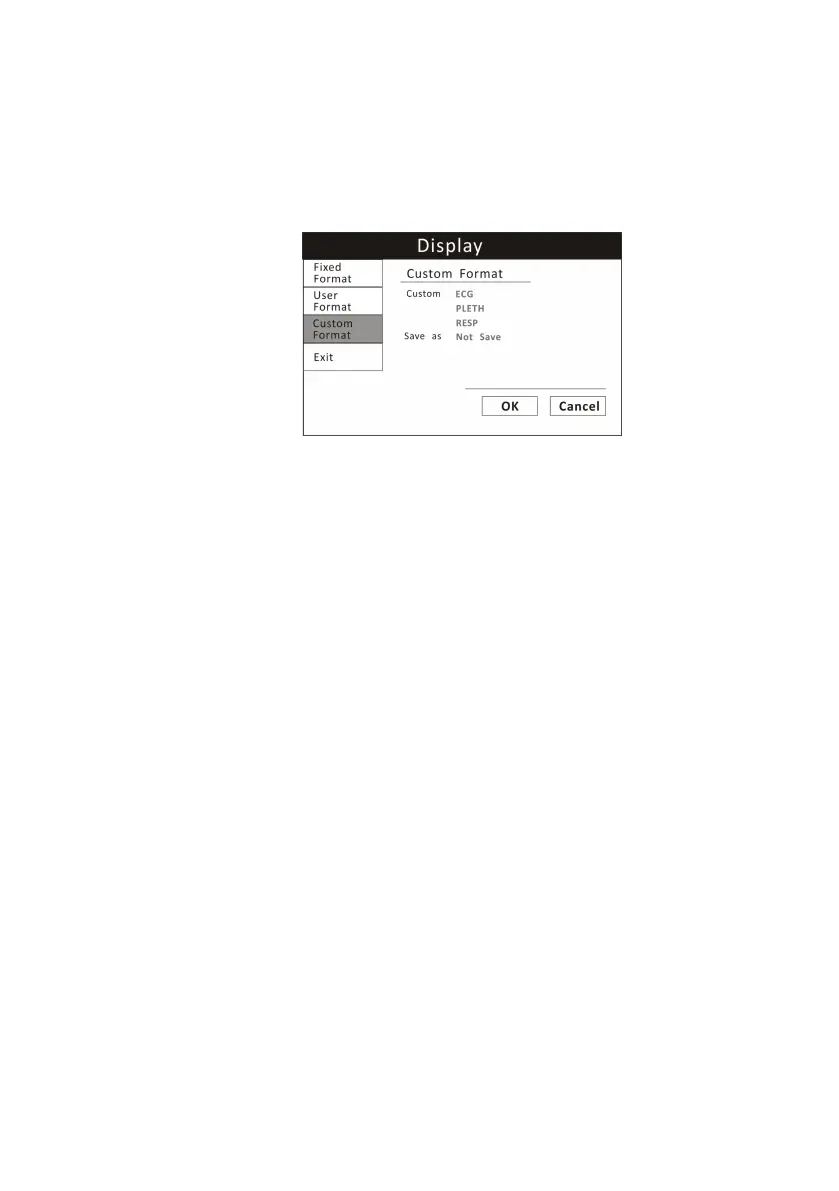

Figure 4.12: Custom Format
1. Press the menu key to pop up the main menu and turn the rotary knob to
move the cursor to the “Display” option.
2. Push the rotary knob to access the “Display” submenu. Turn the knob to
highlight the “Custom Format” option.
3. Push the rotary knob to access the custom format submenu. There are
three waveform channels. You can customize each channel by choosing from
ECG, PLETH, Graph, Table, RESP or blank.
4. Push the rotary knob to select and choose the desired display option.
5. Turn the rotary knob to highlight “Not Save”, push to select and turn knob
to choose a format such as Format 1 to save your settings.
6. Turn the rotary knob to “OK” or “Cancel” button and push it to save or
delete your settings.
