Vacon 10 User Manual

10 • vacon installation
Tel. +358 (0)201 2121 • Fax +358 (0)201 212205
3
3.1.1 Vacon 10 dimensions

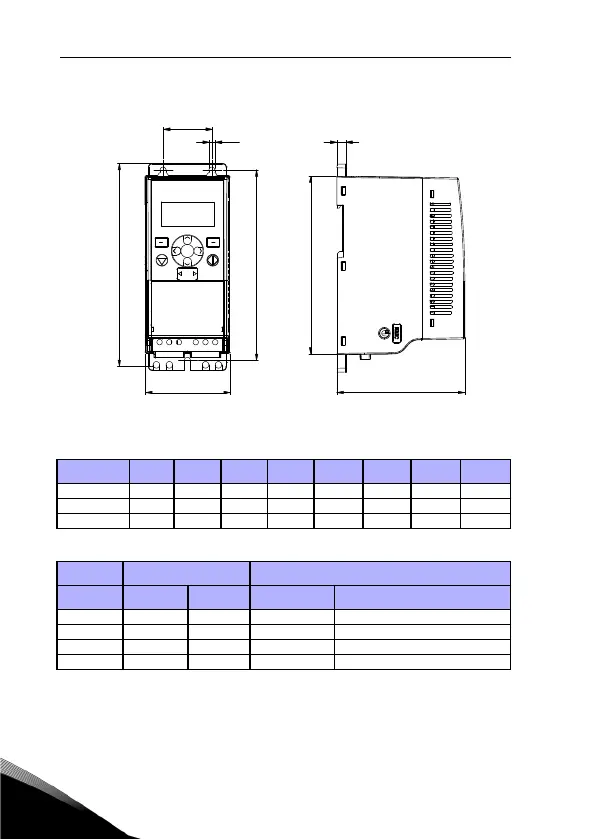

Figure 3.3: Vacon 10 dimensions, MI1 - MI3
Type H1 H2 H3 W1 W2 W3 D1 D2
MI1 160.1 147 137.3 65.5 37.8 4.5 98.5 7
MI2 195 183 170 90 62.5 5.5 101.5 7
MI3 254.3 244 229.3 100 75 5.5 108.5 7
Table 1: Vacon 10 dimensions in millimetres
Frame Dimensions(mm) Weight*
W H D (kg.)
MI1 66 157 98 0.5
MI2 90 195 102 0.7
MI3 100 262 109 1
*without shipping package
Table 2: Vacon 10 frame dimensions (mm) and weights (kg)
W1
D1
H3
D2
H1
W2
W3
H2
LOC
REM
BACK
RESET
OK
