parameter descriptions vacon • 87
24-hour support +358 (0) 201 212 575 • Email: vacon@vacon.com
9
9.10 Automatic reset (Control panel: Menu PAR -> P14)
14.1 AUTOMATIC RESET
Activate the Automatic reset after fault with this parameter.
NOTE: Automatic reset is allowed for certain faults only.
Fault: 1. Under voltage
2. Over voltage
3. Over current
4. Motor temperature
5. Under load
14.3 TRIAL TIME
The Automatic restart function restarts the frequency converter when the
faults have disappeared and the waiting time has elapsed.
The time count starts from the first autoreset. If the number of faults occur-
ring during the trial time exceeds three, the fault state becomes active. Oth-
erwise the fault is cleared after the trial time has elapsed and the next fault
starts the trial time count again. See Figure 9.16.
If a single fault remains during the trial time, a fault state is true.
Fault trigger
Motor stop signal
Motor
start signal
Super v is io n
Restart 1 Restart 2
Trial time
par.14.3
Fa u lt act i ve
RESET/
Fault reset
Autor
e
set function: (Trials = 2)
Wait time
pa r.14.2
Wait t ime
pa r.1 4.2
Wait t ime
pa r.14.2

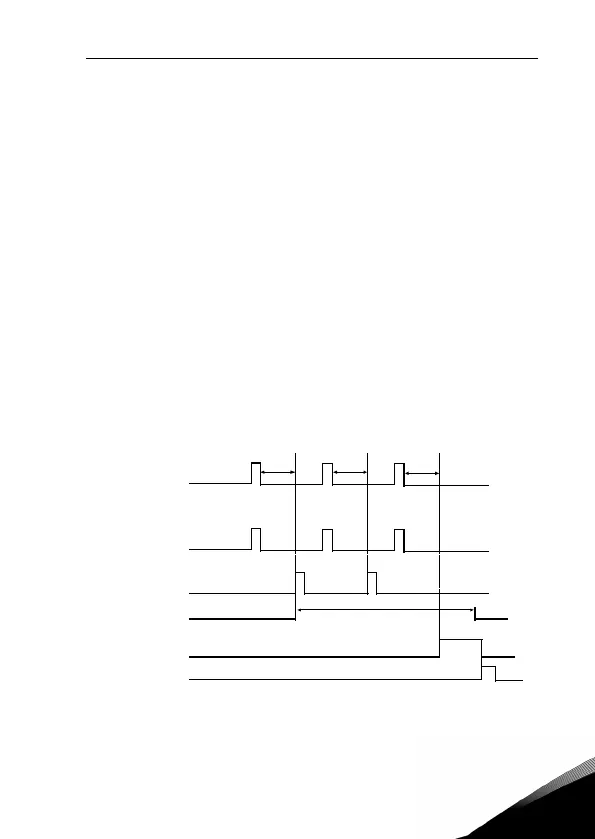

Figure 9.16: Example of Automatic restarts with two restarts
