installation
vacon
•
13
24-hour support (0)20
1 212 575 • Email: vacon@vacon.com
3
3.1.3 Power losses
If the operator wants to raise the switchin
g frequency of the drive for some reason
(typically e.g. in order to reduce the moto
r noise), this inevitably affects t
he power

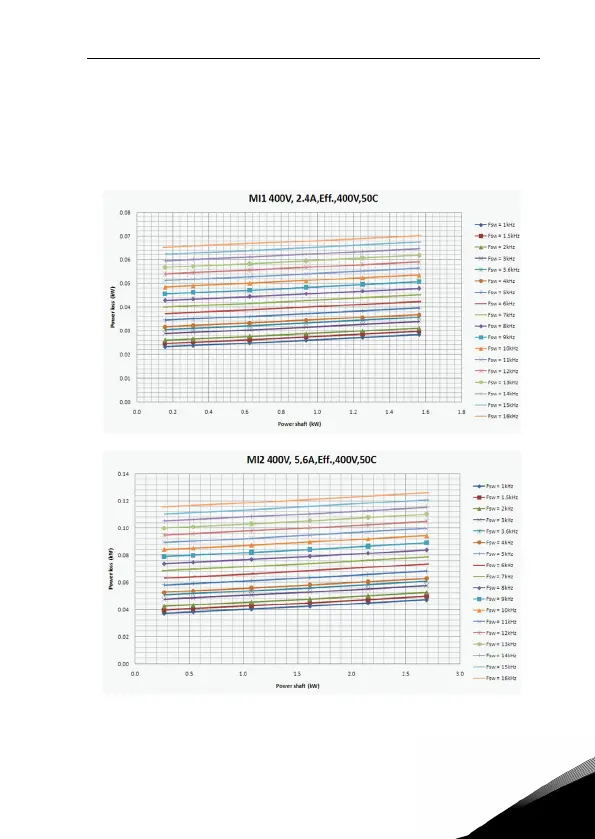

losses and cooling requirements, for different motor shaft power, operator can se-
lect the switching frequency according to the graphs below.
MI1 - MI3 3P 3
80 V POWER LOSS
15
17
