88 vacon parameter descriptions
Tel. +358 (0)201 2121 • Fax +358 (0)201 212205
9
9.11 PI control parameters (Control panel: Menu PAR -> P15)
15.7 P GAIN
This parameter defines the gain of the PI controller. If the value of the param-
eter is set to 100%, a change of 10% in the error value causes the controller
output to change by 10%.
15.8 I-TIME
This parameter defines the integration time of the PI controller. If this param-
eter is set to 1,00 second, the controller output is changed by a value corre-
sponding to the output caused from the gain every second. (Gain*Error)/s.
15.5 FEEDBACK VALUE MINIMUM
15.6 FEEDBACK VALUE MAXIMUM
This parameter sets the minimum and maximum scaling points for feedback
value.

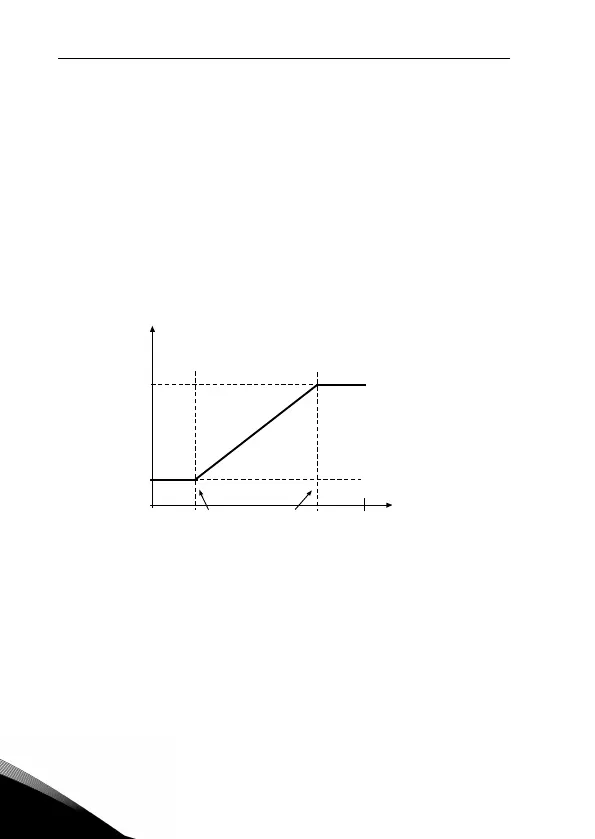

Figure 9.17: Feedback minimum and maximum
0V
0mA
par. 15.5
Custom min
par.6.2
/
6.6
Custom max
par. 15.6
10V
20mA
C ont rol ler
feedback(%)
Analogue input
with custom
min and max
scaling (%)
par.6.3 /6.7
