VAF instruments OILCON MARK 6M - Water and Airline Connections Skid

41

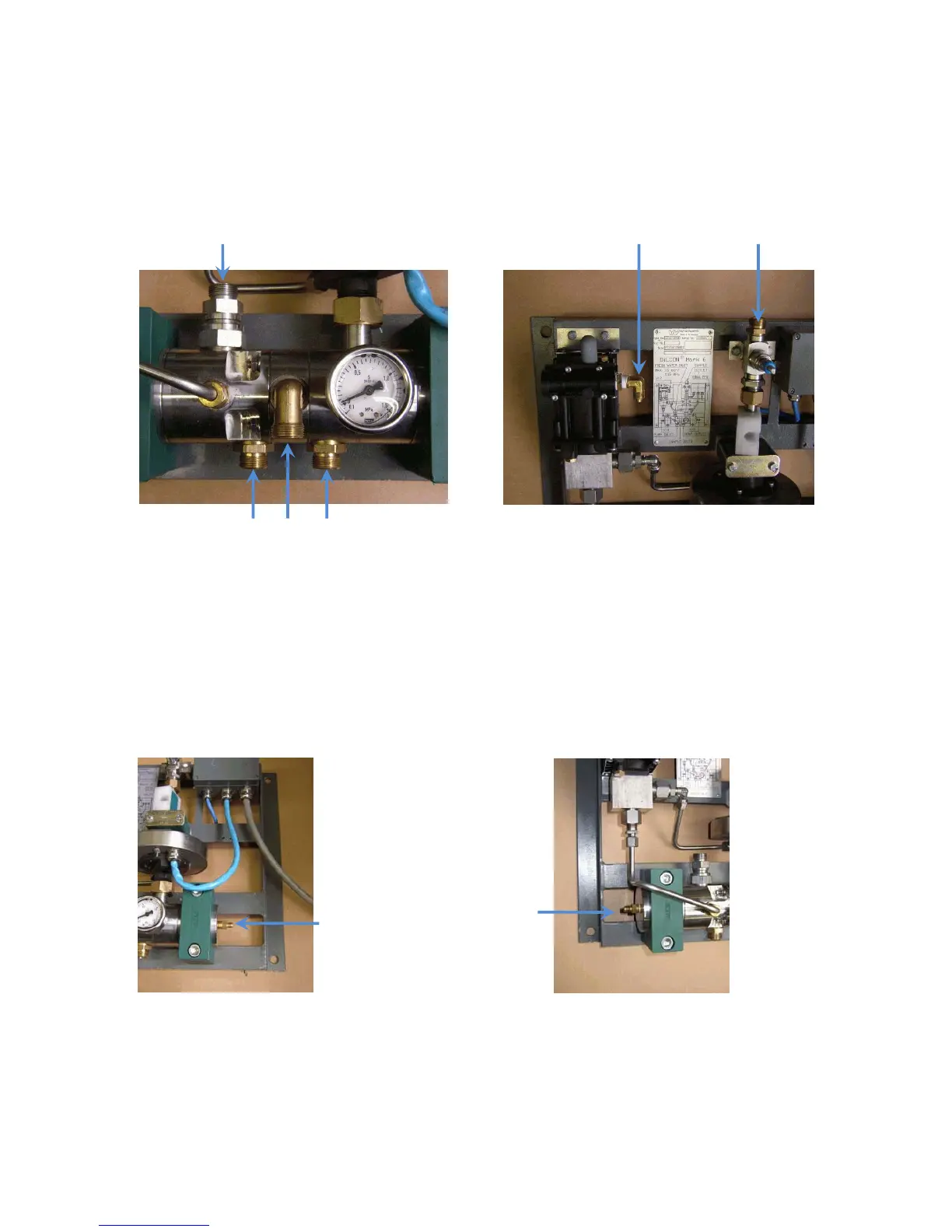

6.8.6 Water and Airline connections Skid
Reference drawings
 Dimensional drawing and parts list EPU 1-2 sample valves Mark 6M 0806-1287
 Dimensional drawing and parts list ballast skid Mark 6M 0806-1288
 Bulkhead penetration and piping diagram Mark 6M 0806-8038
AA
BB CC DD
EE FF
Figure 25 Figure 26
AA. Fresh water inlet
BB. To sample pump inlet
CC. Sample inlet from sample valve
DD. To sample pump outlet
EE. Airline from solenoid V12
FF. Sample outlet to slop tank
GG. Airline from solenoid V11
HH. Airline from solenoid V10
GG
HH
Figure 27 Figure 28
