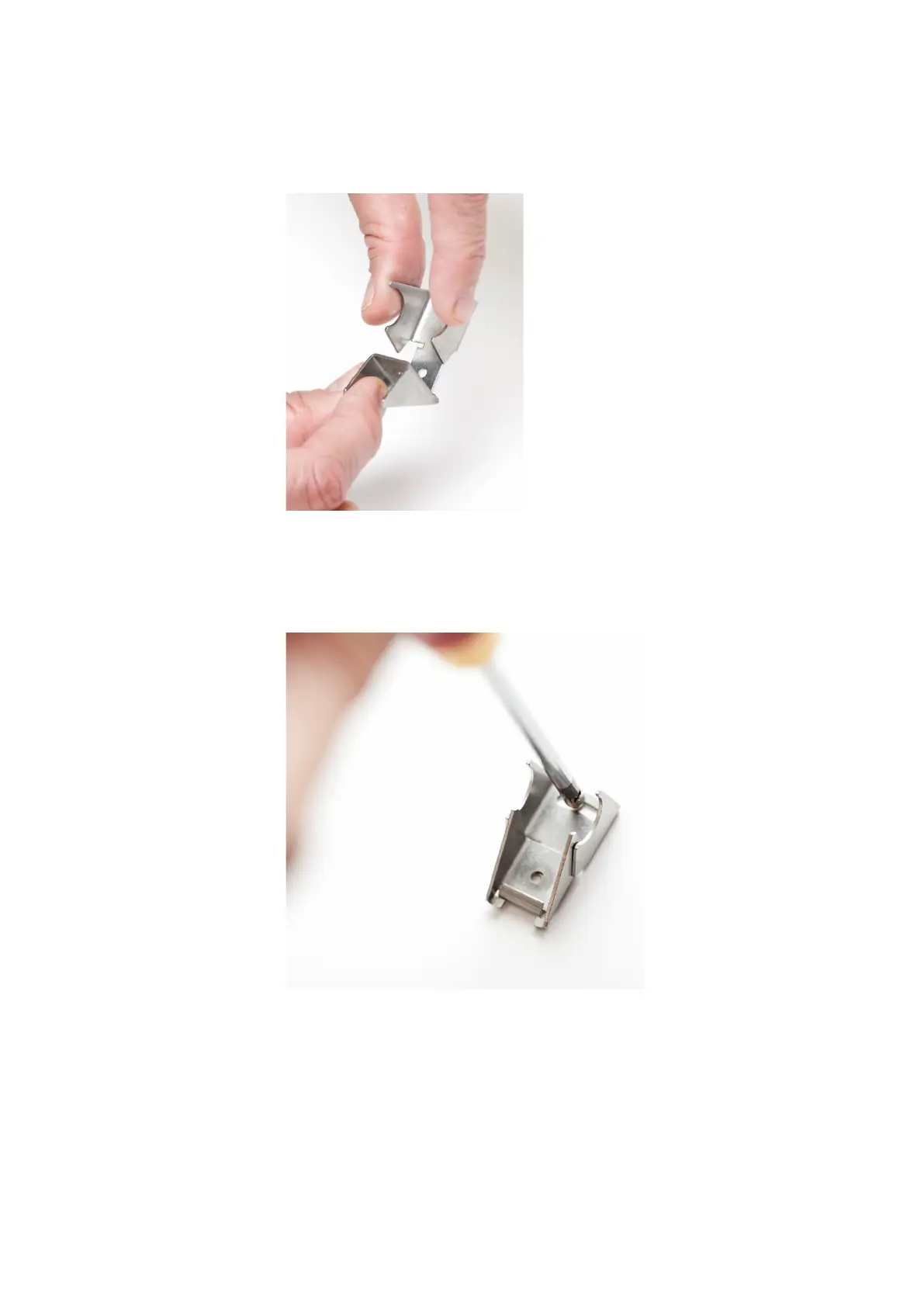

3. Place the clamp to the intended location and secure the upper clamp part with a screw.
4. Place the probe in the clamp.
5. Tighten the lower clamp part with a screw.
2.3.2 Probe mounting flange
The probe mounting flange is a silicone flange that you can use to hold the probe in a through-
wall installation. The flange is a general purpose mounting accessory for Ø 12 mm probes, and
comes with a sealing plug for coaxial cables that is not needed when you use the flange with
HMP60 and HMP110 series probes. For more information, see Mounting Flange for Humidity
Probes Quick Reference Guide (M211080EN).

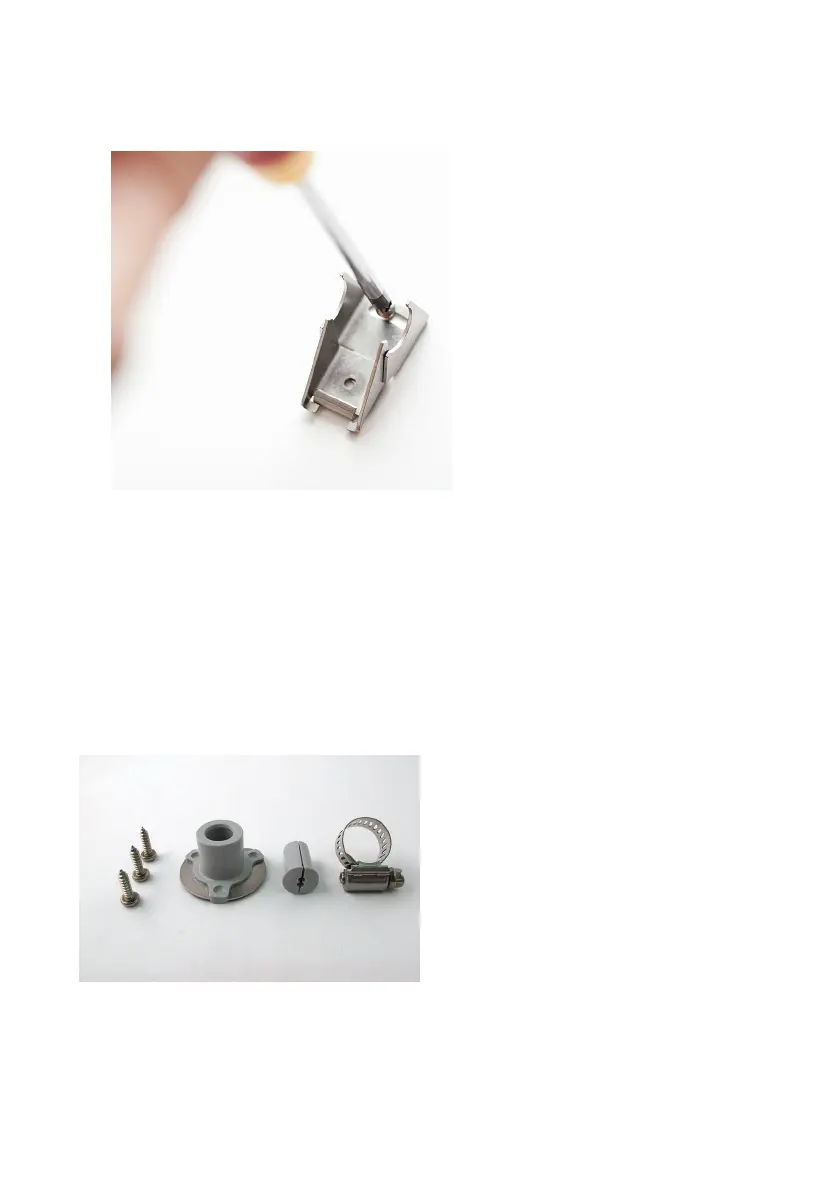

Figure 5 Probe mounting flange
HMP60 and HMP110 Series User Guide M211060EN-J
