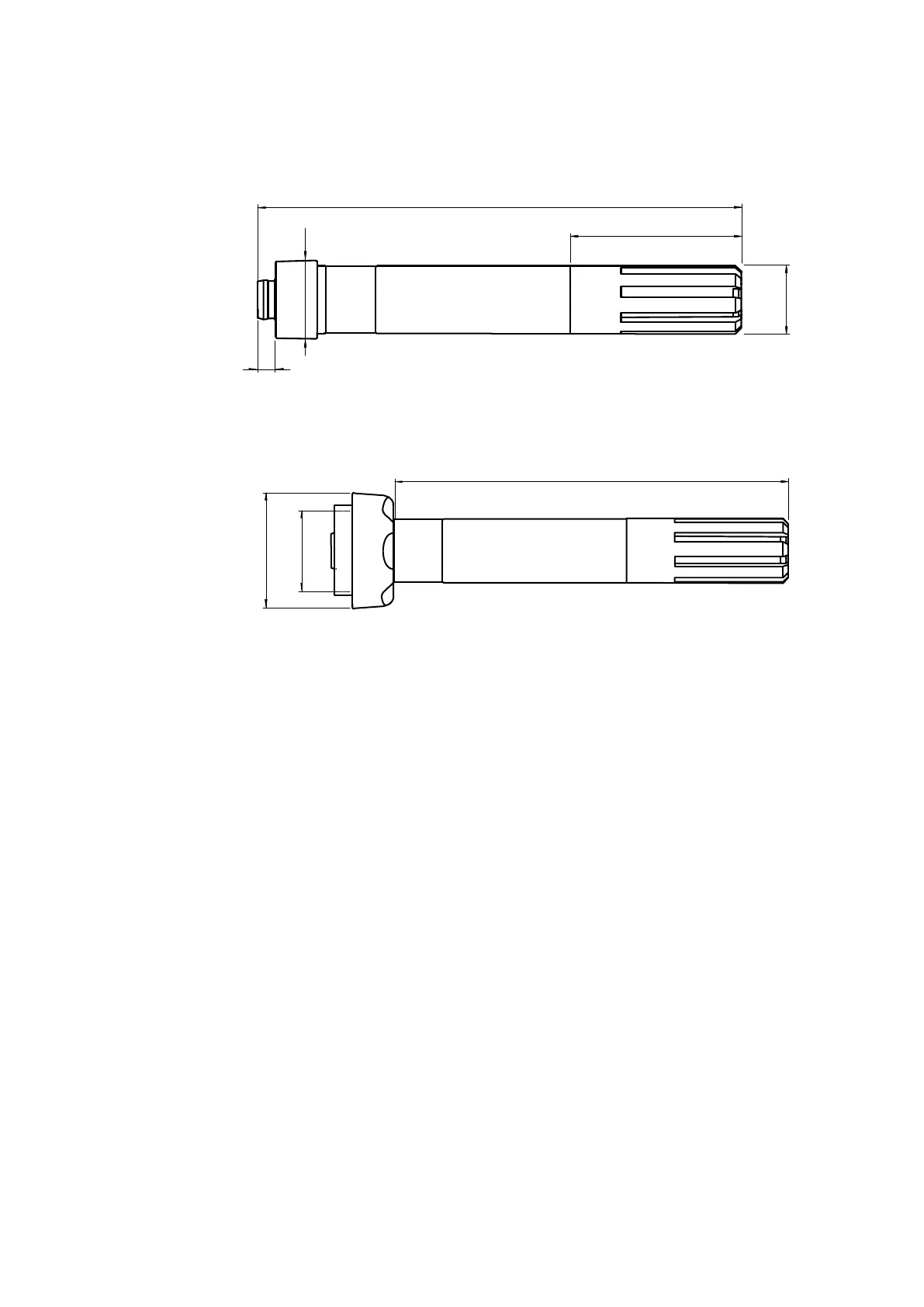

3.1 Mounting HMP60, HMP110, and HMP110T
probes
HMP60, HMP110, and HMP110T are designed to be mounted from the M12 thread on the probe
body or from the smooth part of the probe body. For a convenient installation, use the
optional installation accessories:
• Use the plastic mounting nuts to hold the probe in a through-wall installation
• Use the probe mounting clamp to hold the probe on a wall
• Use the probe mounting flange to hold the probe in a through-wall installation
Avoid placing the probe in a place where condensation can run onto the sensor.
3.1.1 Probe assembly with duct installation kit
1 2 3

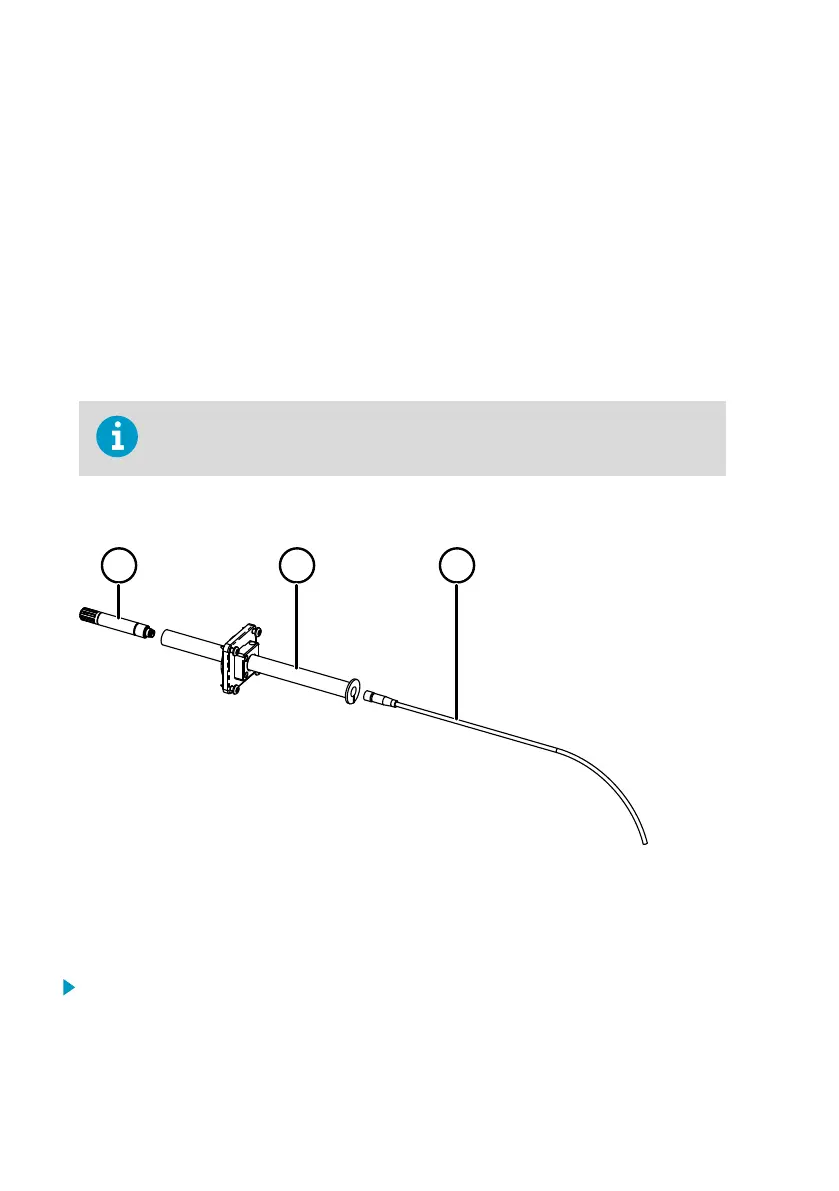

Figure 11 Assembly of the probe with duct installation kit
1
HMP60, HMP110, or HMP110T probe
2 Duct installation kit
3 Probe cable
1. Slide the probe cable through the duct installation kit plastic pipe.
2. Attach the cable to the probe.
3. Attach probe assembly to the duct.
