Vaisala HMP110REF User Manual

2.3.4 Duct installation kit for HMP60, HMP110, and HMP110T
The duct installation kit includes a plastic pipe with a flange (Vaisala item code 215619). To
install the probe with the duct installation kit, drill a hole to the duct wall, assemble the probe
to the duct installation kit, slide the probe head through the hole, and attach the flange to the
duct wall with 4 screws.
Ø 24 [0.94]
1
2
mm
[in]

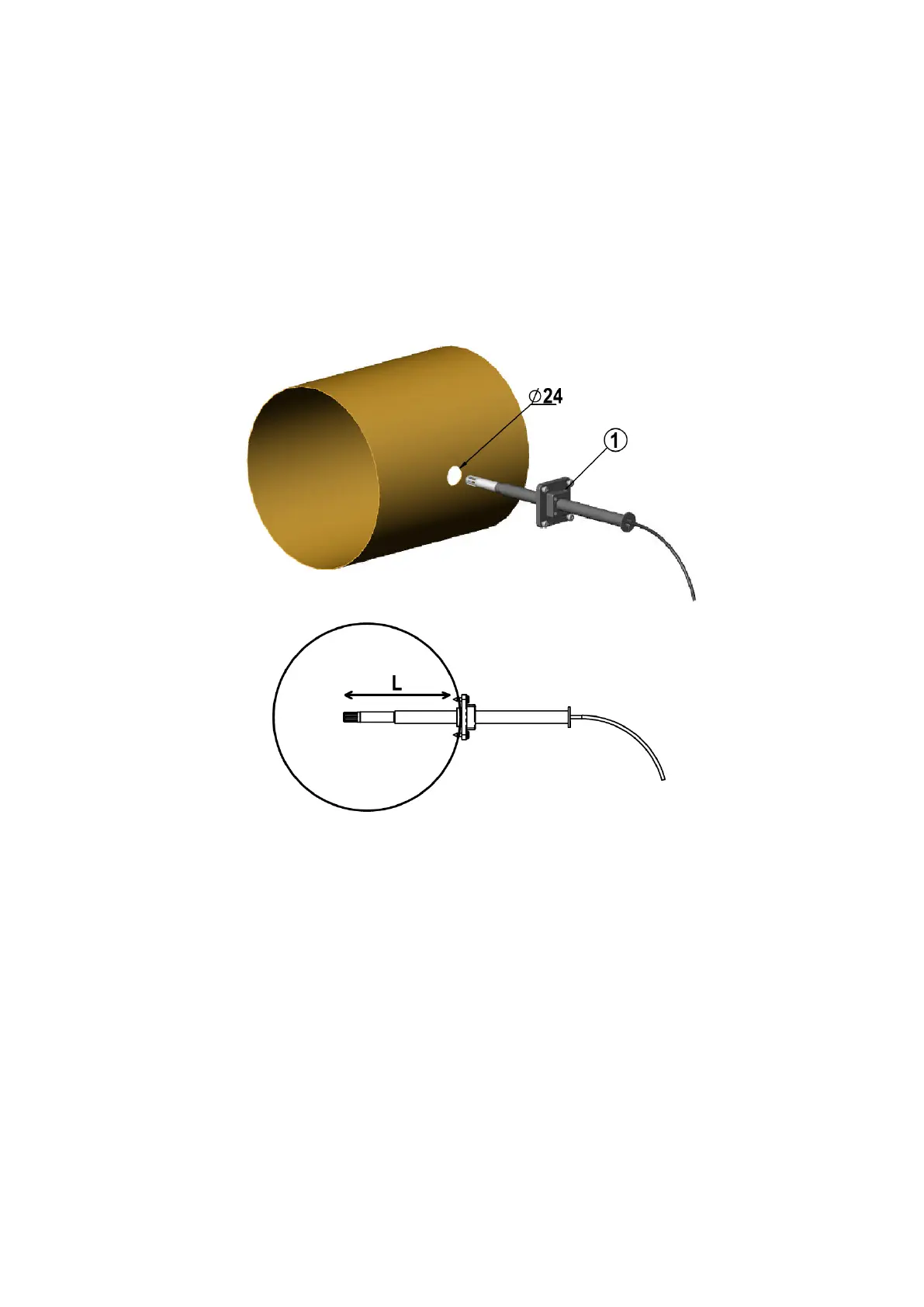

Figure 7 Probe installation with the duct installation kit
1
Tension screw
2 Installation depth. Adjust the depth and lock in place with the tension screw.
More information
‣
Mounting HMP60, HMP110, and HMP110T probes (page 22)
HMP60 and HMP110 Series User Guide M211060EN-J
18
