2.3.5 Loop power converter
The loop power converter is an open frame module that converts one 0 ... 2.5 VDC voltage
output to a 4 ... 20 mA current output. To use the loop power converter module, the probe
must be in the analog output mode. The desired parameter is on channel 1, which must be
scaled to 0 ... 2.5 V.

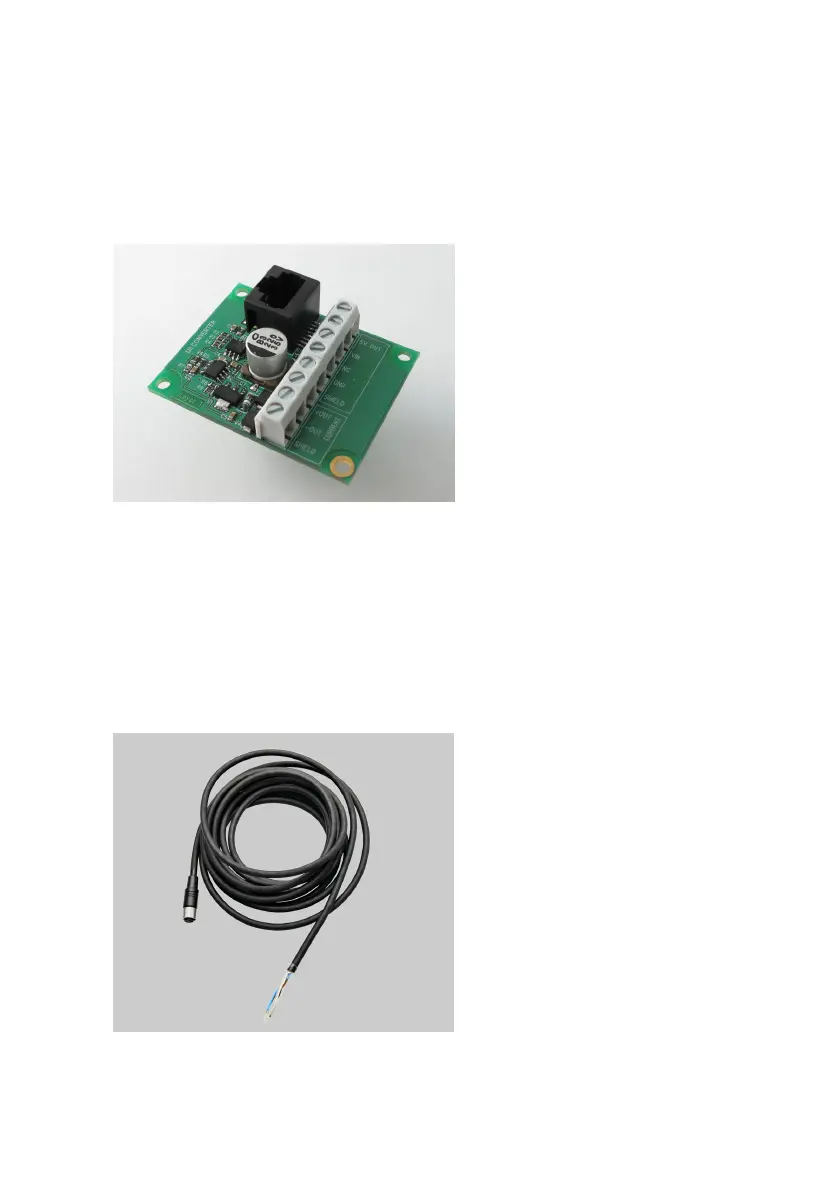

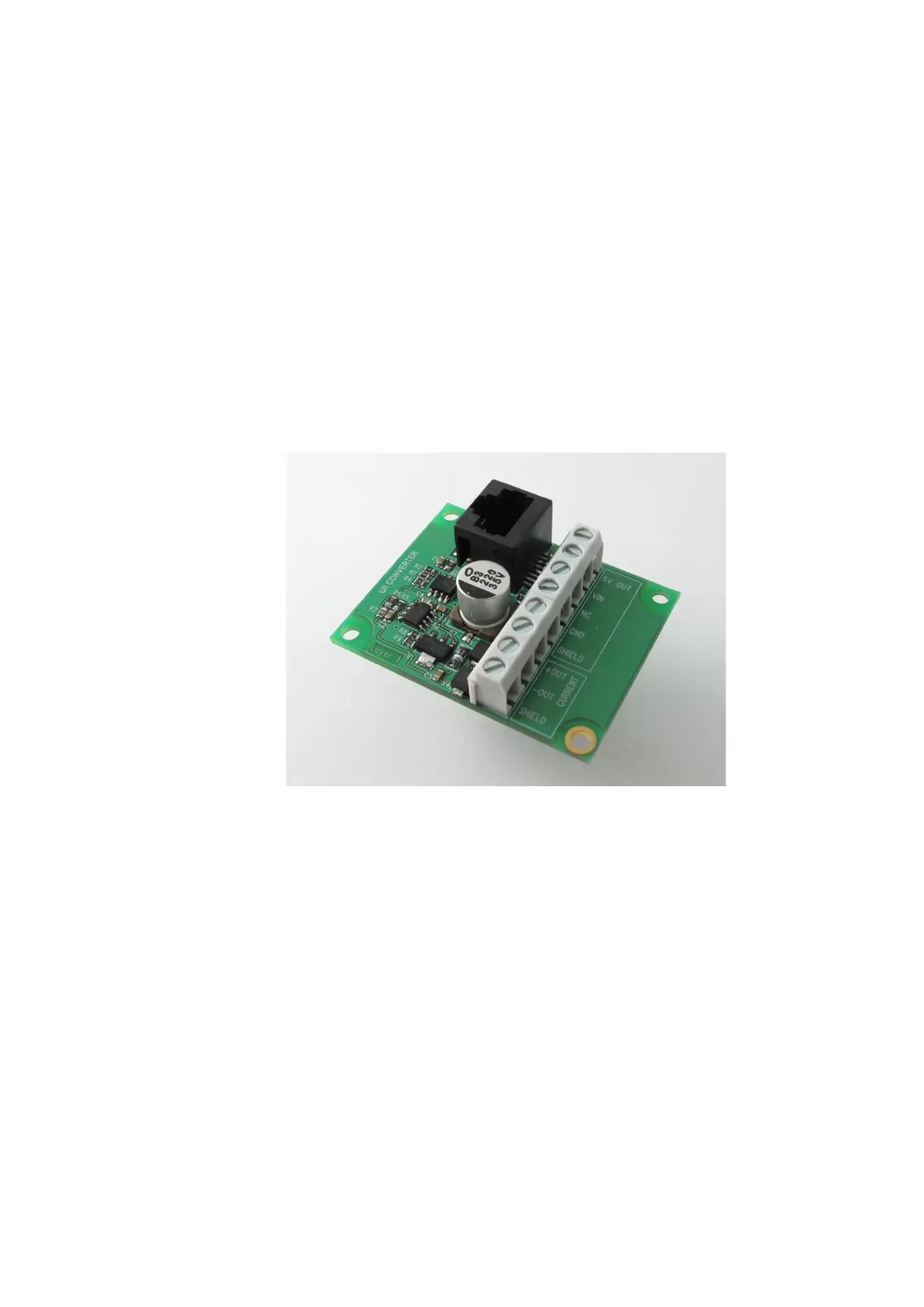

Figure 8 Loop power converter
More information
‣
Wiring with the loop power converter (page 26)
2.3.6 Cables
Connection cables have a straight, threaded female M8 connector on one end and open wires
on the other end. You can use other compatible M8 series cables.
Figure 9 Cable with threaded connector
