USER'S GUIDE____________________________________________________________________
14 __________________________________________________________________ M010117EN-H
To manually enter Station Position settings:
1. Select Tools - Station Position – RT20 to open the Station
Position dialog.
0203-121

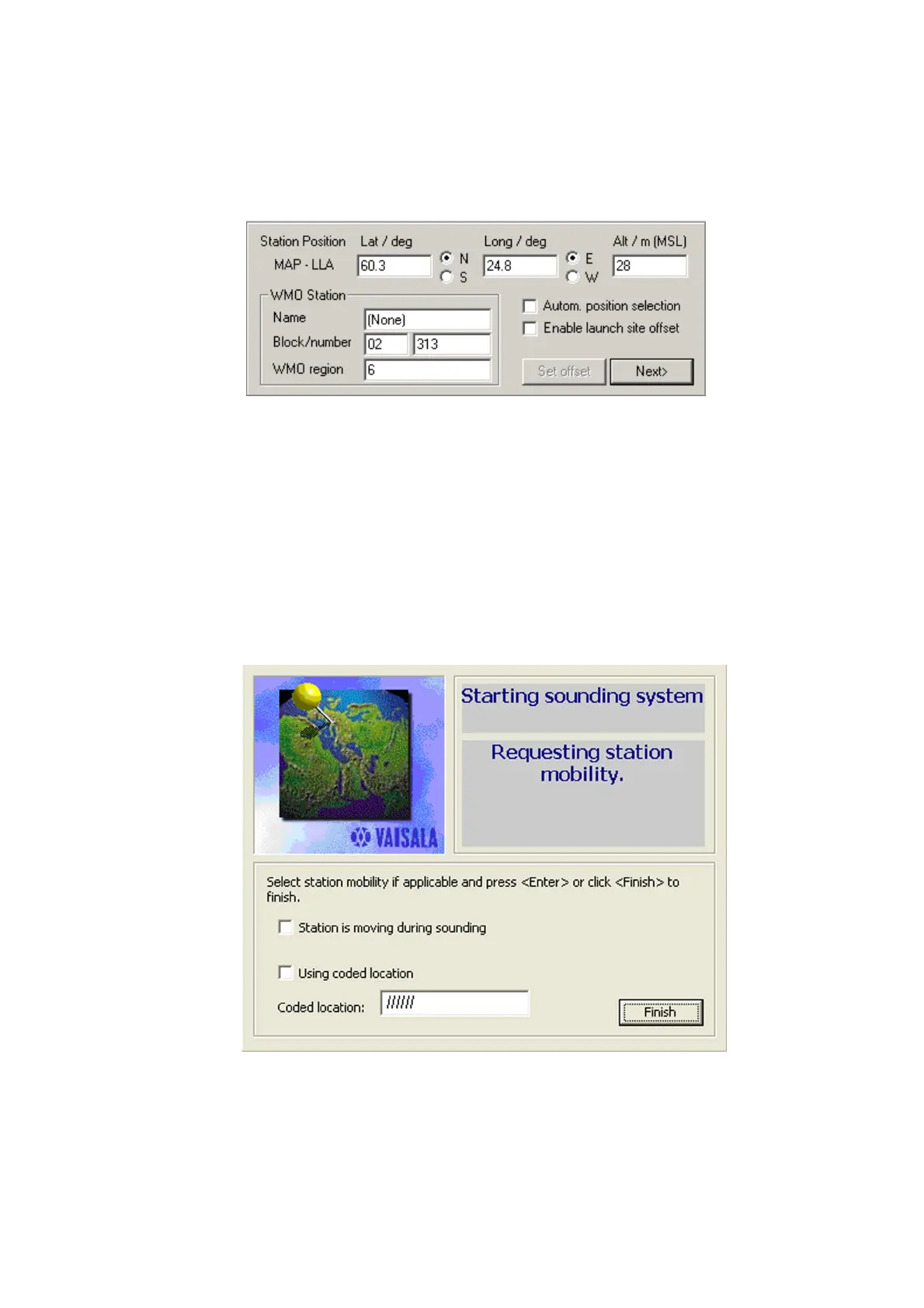

Figure 2 Station Position Dialog
2. If the MWG or MRG card is not available, clear the selection from
the Autom. position selection check box.
3. Fill in the Lat/deg, Long/deg, and Alt/m [MSL] fields.
4. If you create messages during the sounding, enter also the station
name, number, and region in the WMO Station field.
5. Accept the values by selecting Next.
6. Select station mobility if applicable.
7. Click Finish.
Figure 3 Starting Sounding System
