USER'S GUIDE____________________________________________________________________
16 __________________________________________________________________ M010117EN-H
Steps 5 and 6: Entering Calibration Coefficients
The procedures for entering calibration coefficients for radiosonde RS92-
D and RS80-67 are described below.
RS92-D
When entering calibration coeffients for radiosonde RS92-D with a
radiosonde cable, it is also possible to recondition the radiosonde, or to
perform a ground check (when reading coefficients via Ground Check
Set GC25) after reading the coefficients. These are explained below in
their own sections.
Cable
1. The window Selecting sonde appears.
2. Select the Cable option.
3. Connect the radiosonde to the workstation with the radiosonde
cable or via GC25.
4. The sounding system now reads the coefficient information. Once
the coefficients have been read successfully, click Next to proceed.
0312-152

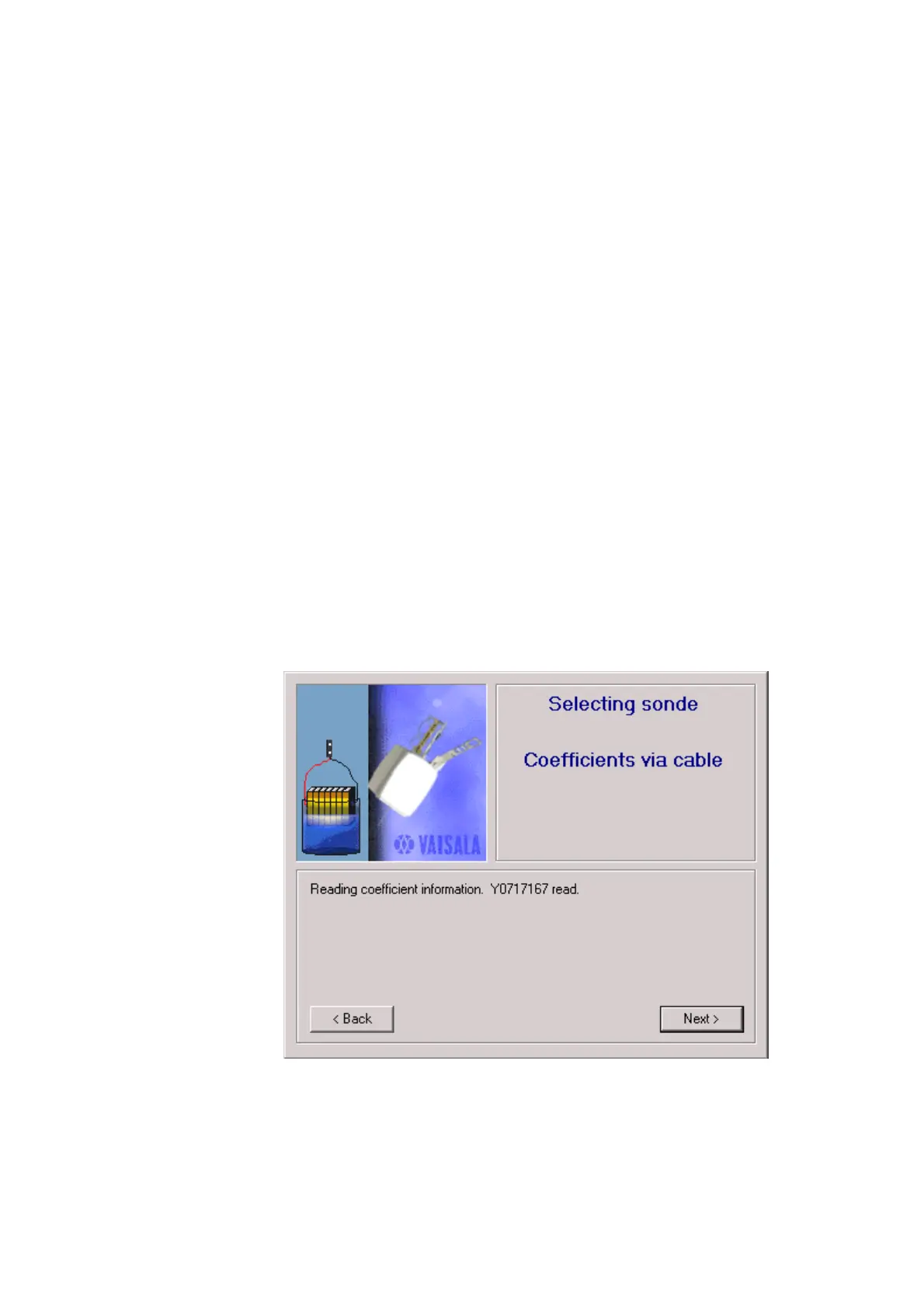

Figure 4 Coefficients Successfully Read via Cable
