Chapter 3
________________________________________________________________
Operation
VAISALA
_______________________________________________________________________
23
Step 7: Selecting Triggering Profiles
Select the triggering prof
iles for the sounding (see
Figure 11) . By
default, the options
VoiceNotifications
and
WMOmessages
are selected.
To disable message spooling
for this sounding, select the
Disable
Spooling
check box.
0
301-014

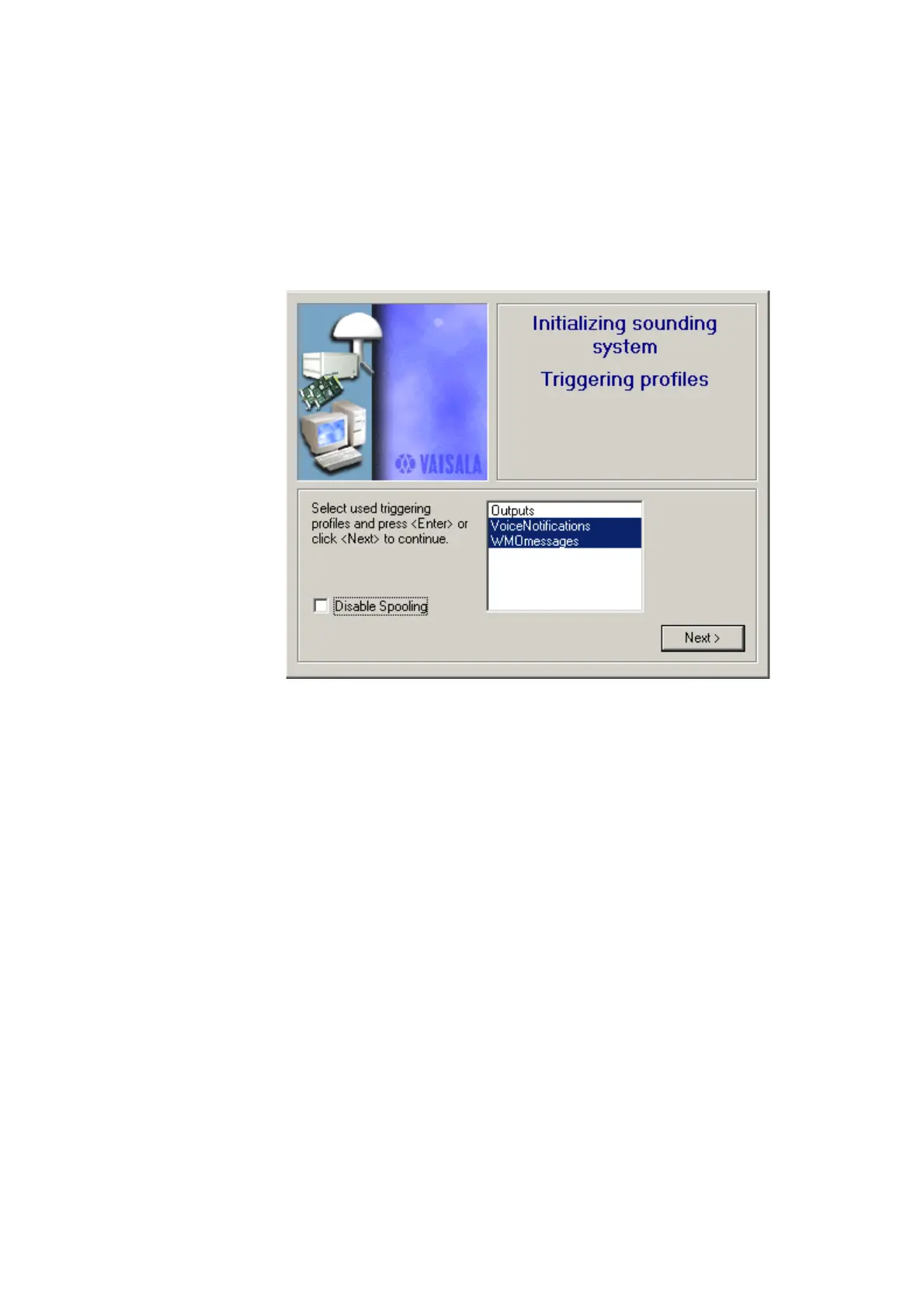

Figure 11
Profiles Window
