Chapter 3
________________________________________________________________
Operation
VAISALA
_______________________________________________________________________
33
Enter the surface observation values and click
Next
to proceed.
0210-050

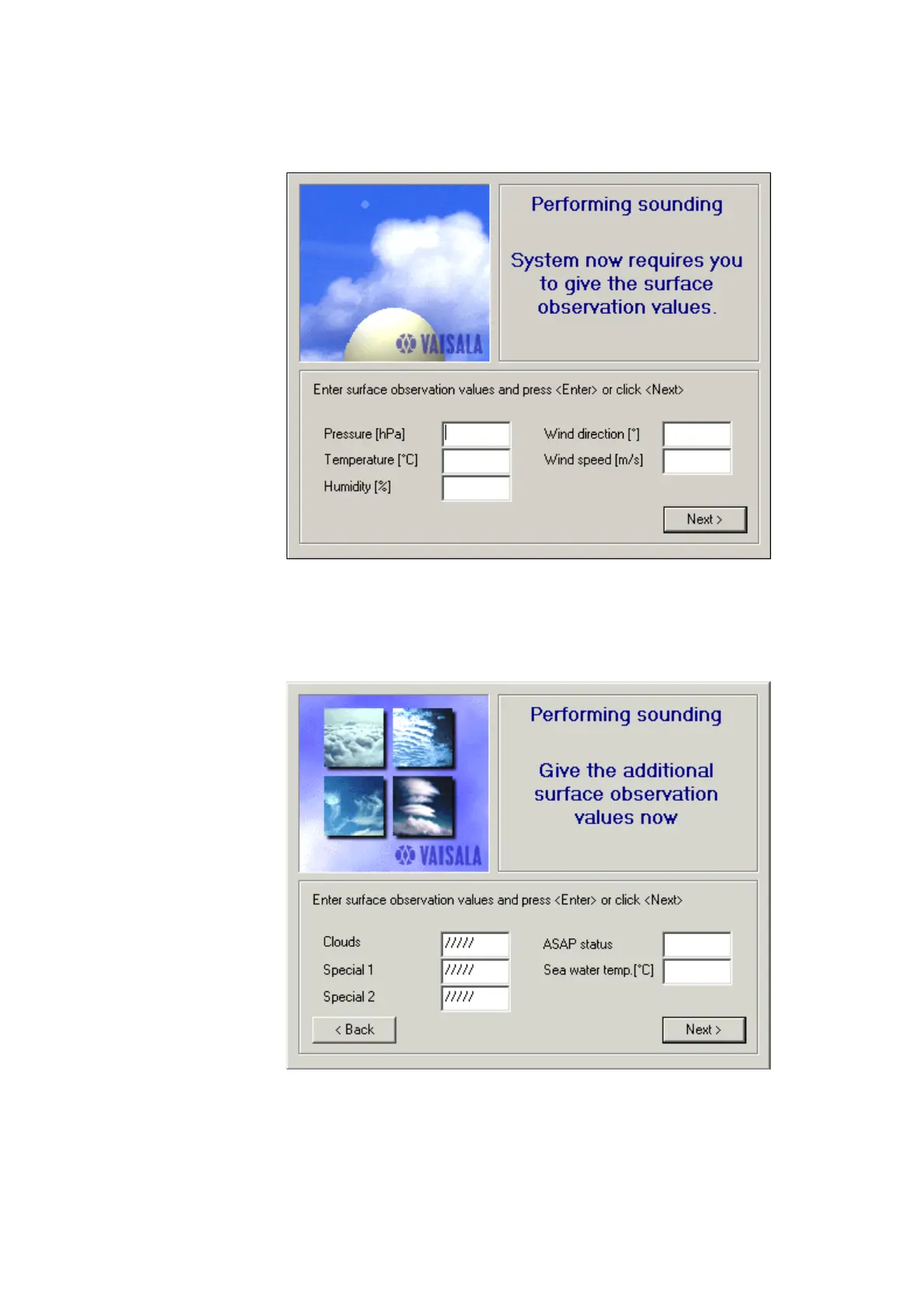

Figure 21
Surface Observation V
alues
If necessary, enter the cloud group in
formation and additional surface
observation values and click
Next
.
0312-173
Figure 22
Additional Surface Observation Values
32
34
