602

REVO-E Heat pump 6 Wiring plan

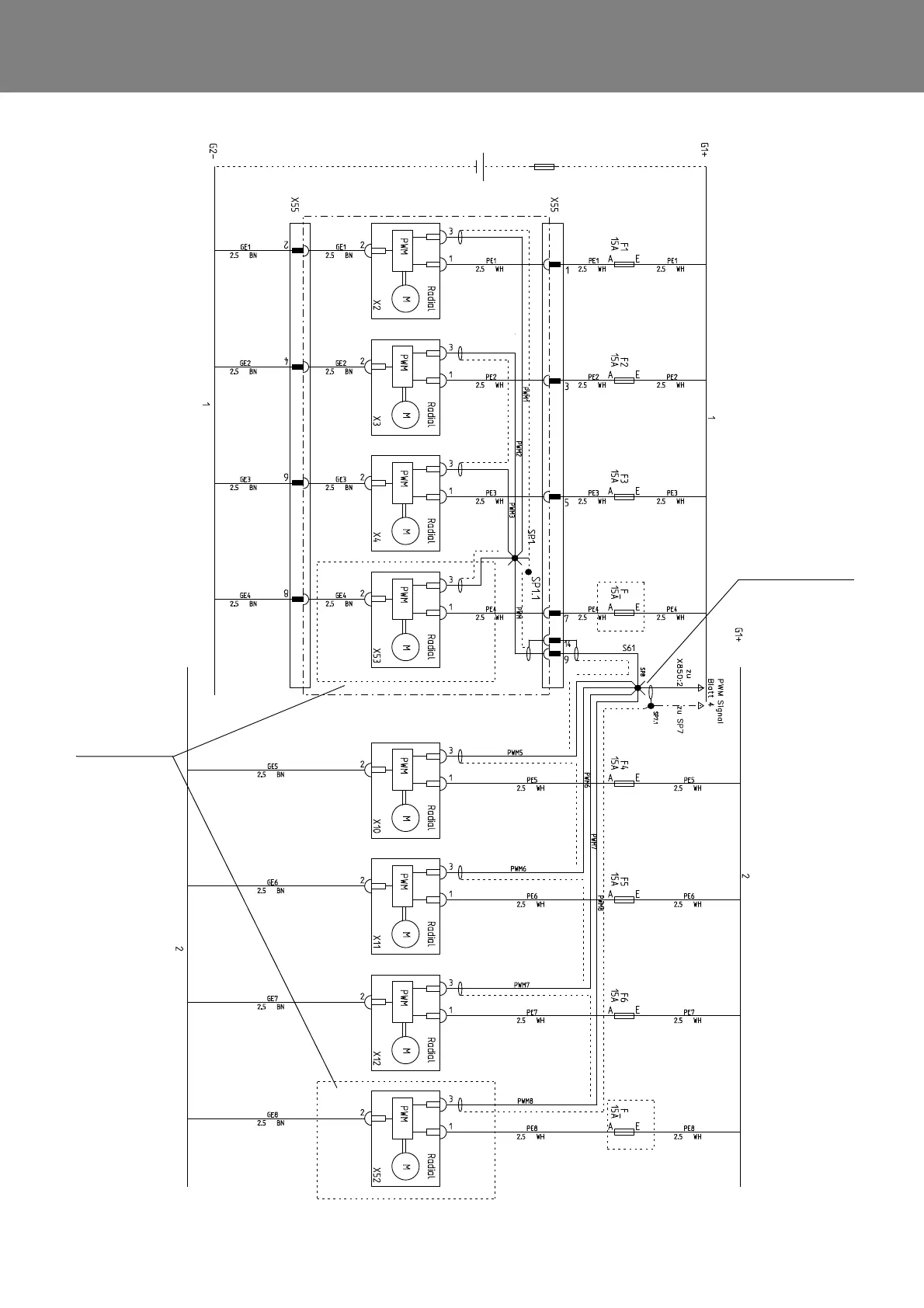

Fig. 601 Wiring diagram for REVO-E HP (Sheet 1)

These fans will

not be used in short

run

from SP7 and SP8

PWM signal see sheet 5
