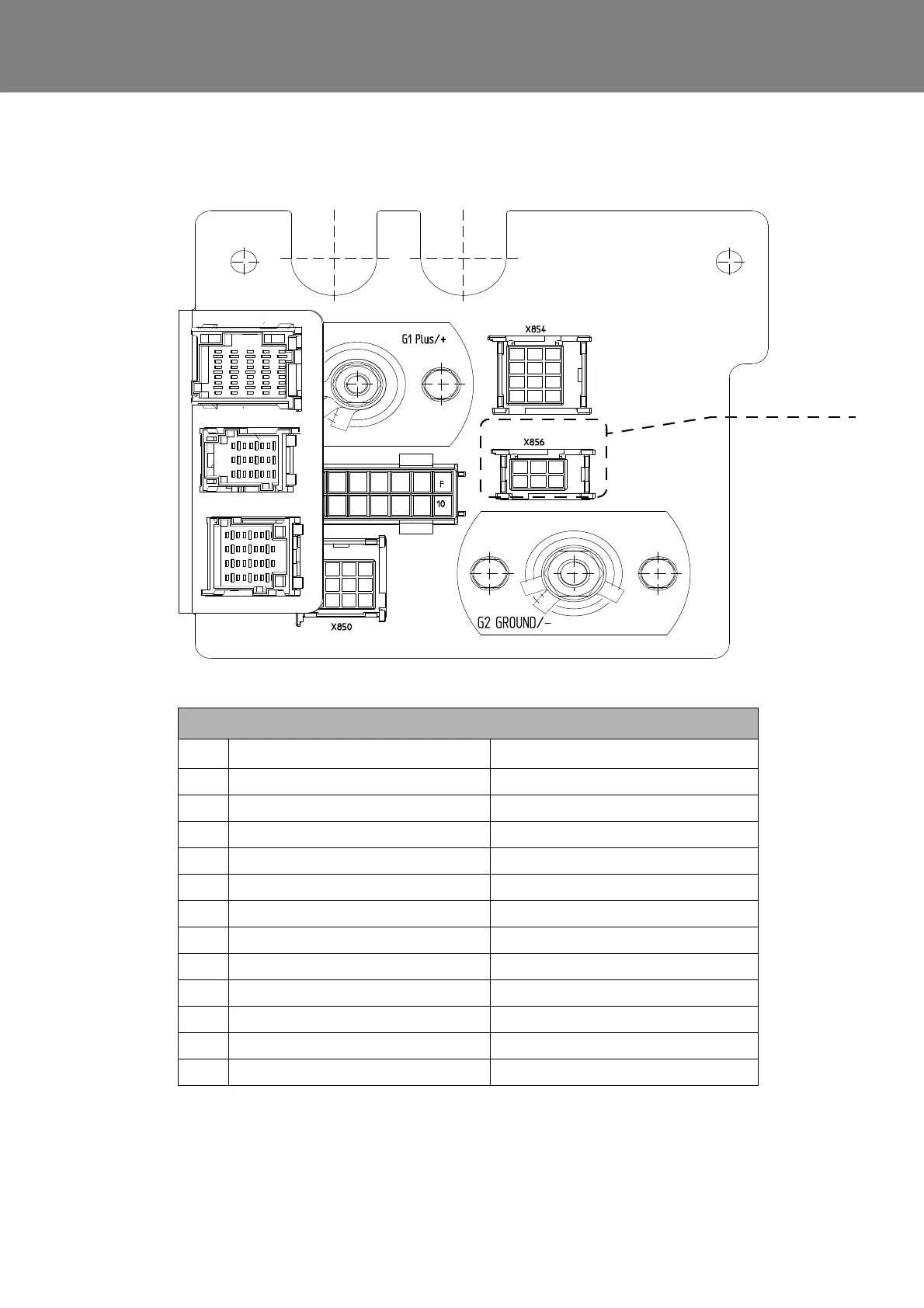

Fig. 601 Wiring diagram for REVO-E HP (Sheet 6)
Connector will not be
used in this application
(REVO-E HP)
Connector pin assignment
Pin X854 X850
1 Compressor Speed Condenser Fan PWM
2 Electromagnetic valve (+) Evaporator Blower PWM
3 LP/HP/Drive Error Fresh Air Flap +/-
4 HVIL - detect 1 in Fresh Air Flap +/-
5 HVIL detect 2 out WV+
6 Analog Ground Press Sensor WV-
7 Pressure Sensor Return HP GND
8 Pressure Sensor Supply (+5V) HP Return
9 Analog Ground Recirc inlet Sensor
10 Cooling Liquid Temp Sensor Analog Ground
11 Enable Roof Channel Sensor
12 Analog Ground Analog Ground
To Next Page
