REVO-E Heat pump 6 Wiring plan
6.4 Frequency converter - electrical connections
6.4.1 600V DC power supply including HVIL connector
The air-conditioning system is linked to the HVIL monitoring system via the 600V DC wiring harness.
Inspect the operating voltage at the connections L1 (Pos1) and L3 (Pos2) with the designated voltage tester
(CAT IV), see Fig. 603.

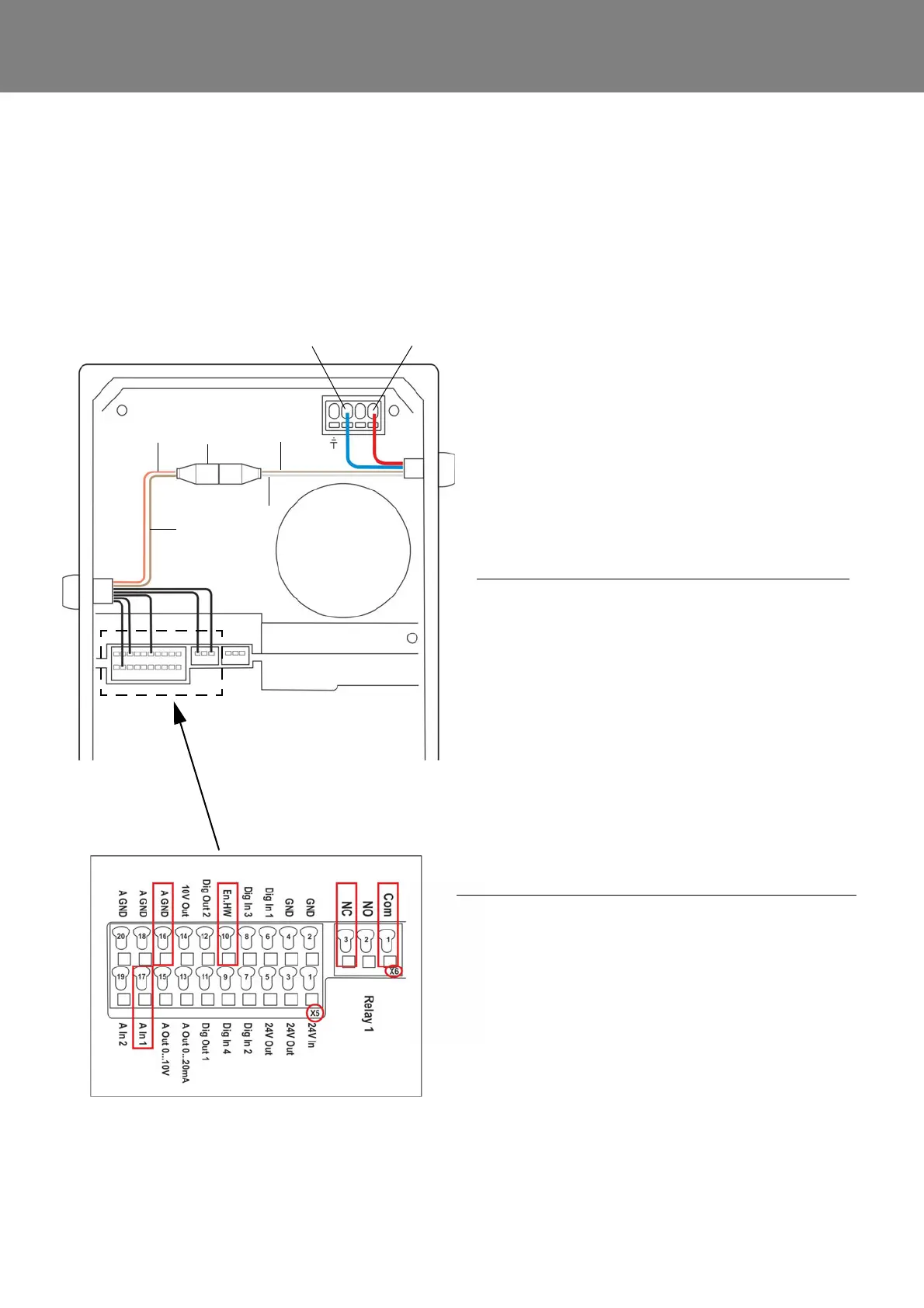

Fig. 603
Power supply 600V DC including HVIL connector
No. Designation Configura-
tion
Cable color
1 L1 DC network
(+)
Red
2 L3 DC network (-
)
Blue
3 HVIL in vehicle X61 Pin 1 White
4 HVIL out of vehicle X61 Pin 2 Brown
5 HVIL in system X61 Pin 1 Pink
6 HVIL out of system X61 Pin 2 Brown
4
3
5
6
7
1(L1)2(L3)
Strip No. Designation Configura-
tion
Cable
color
Cable
no.
X5 10 EN-HW Approval Yellow 4
16 A GND
(Ground 10V)
Ground Gray 3
17 A. In 1 Desired
speed of
compressor
Brown 6
X6 1 Com Center con-
tact of relay 1
Green 5
3 NC Break con-
tact of relay 1
White 7
Application map
Cable assignment for application map
