VAMP 210 - Disturbance Recorder Menu DR

VAMP 210 Generator protection relay
Operation and configuration
VAMP Ltd
24
Vamp 24h support phone: +358 (0)20 753 3264 VM210.EN004

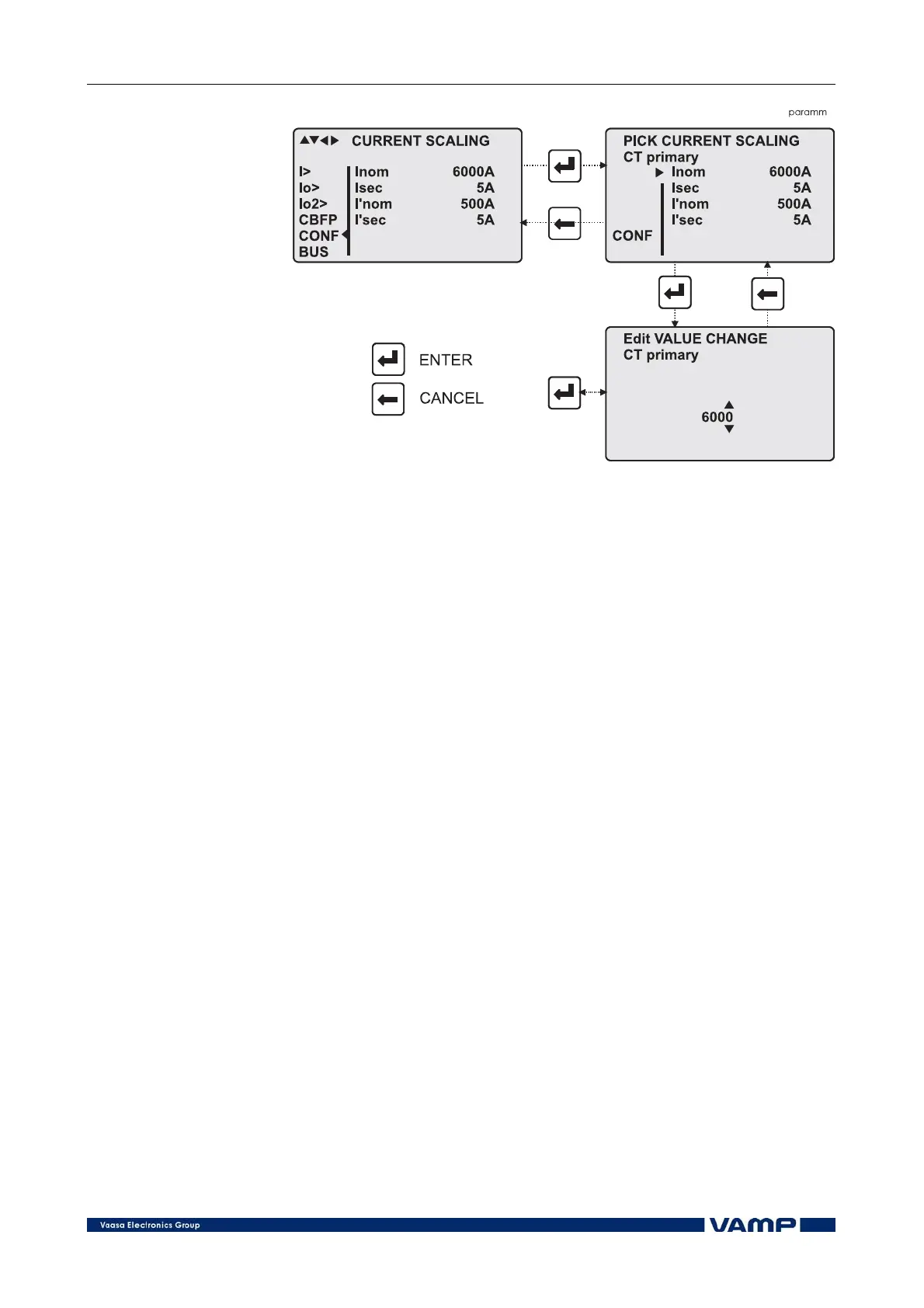

Figure 5.1-1 Changing parameters.
5.2. Disturbance recorder menu DR
Via the submenus of the disturbance recorder menu the
following functions and features can be read and set:
DISTURBANCE RECO
• Recording mode (Mode)
• Sample rate (Rate)
• Recording time (Time)
• Pre trig time (PreTrig)
• Manual trigger (MnlTrig)
• Count of ready records (ReadyRe)
REC. COUPLING
• Add a link to the recorder (AddLink)
• Clear all links (ClrLnks)
Available links:
• DO, DI
• Uline, Uphase
• IL
• U2/U1, U2, U1
• I2/Ign, I2/I1, I2, I1
• CosFii
• PF, S, Q, P
