VAMP 210 User Manual

VAMP 210 Generator protection relay
Technical description
VAMP Ltd
58
Vamp 24h support phone: +358 (0)20 753 3264 VM210.EN004
7. Order information
When ordering, please, state:
Type designation: VAMP 210
Quantity:
Auxiliary voltage:
Rated current:
Rated earth fault current:
Options:

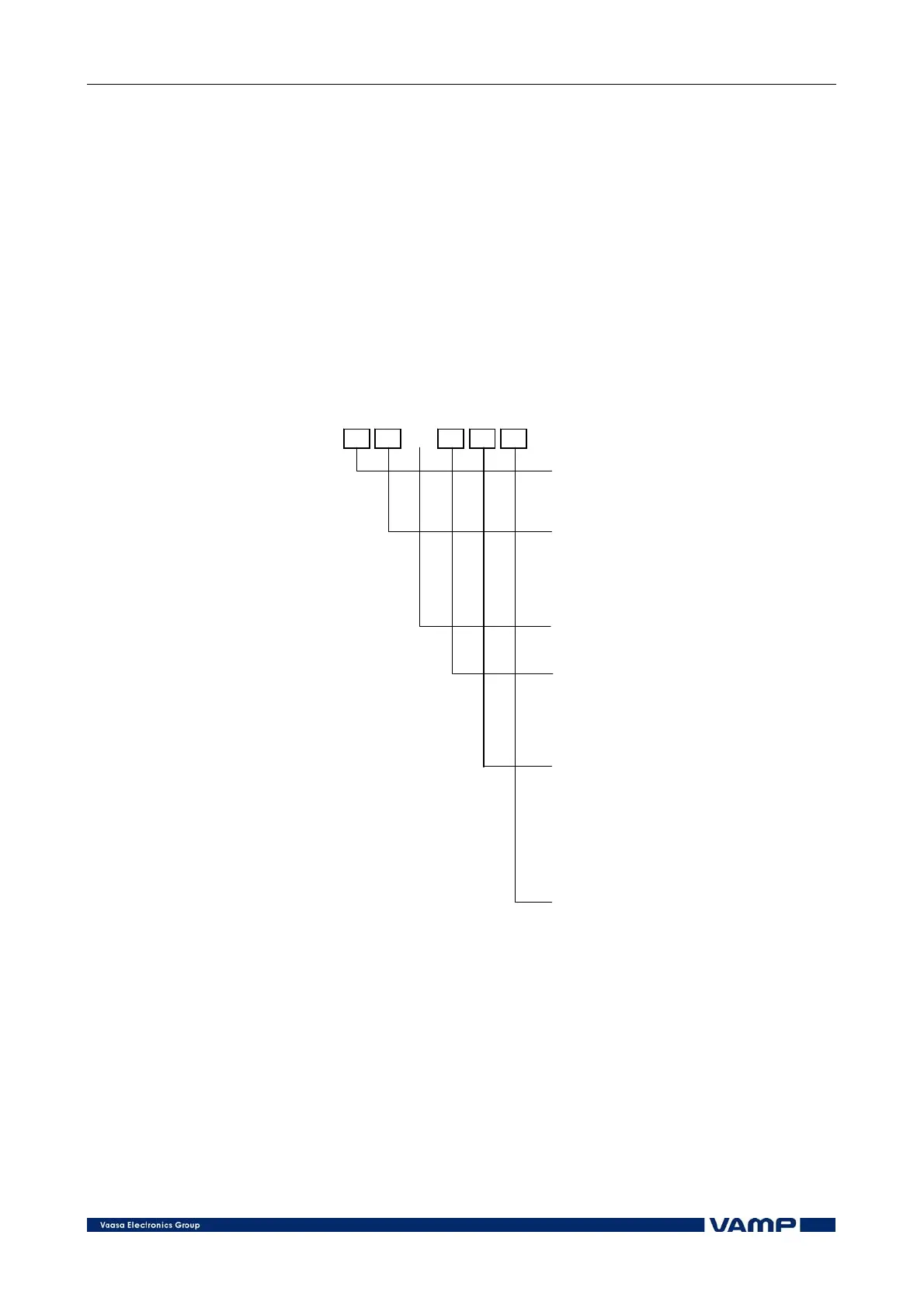

VAMP 210 ORDERING CODE
VAMP 210
-7
Nominal current [A]
1
=1A
5 =5A
Nominal earth-fault currents I
01
& I
02
[A]
A
= 5A & 5A
B
= 5A & 1A
C
= 1A & 5A
D
= 1A & 1A
Frequency [Hz]
7
= 50/60Hz
Supply voltage [V]
A
= 40.. 265Vac/dc
B
= 18.. 36Vdc
C = 40.. 265Vac/dc + ARC Protection
D
= 18.. 36Vdc + ARC Protection
Optional hardware
A
= None
B = Plastic/Plastic fibre interface
C
= Profibus interface
D
= RS 485 interface
E
= Glass/Glass Optic Interface
F
= Plastic/Glass Optic Interface
G
= Glass/Plastic Optic Interface
Optional software
A
= None
Accessories :
Order Code Explanation Note
VEA 3 CG
Ethernet Interface Module VAMP Ltd
VPA 3 CG Profibus Interface Module VAMP Ltd
VMA 3 CG RS485 Interface Module VAMP Ltd
VX003-3 Programming Cable (VAMPSet, VEA 3 CG+200serie) Cable length 3m
VX004-M3 TTL/RS232 Converter Cable (for PLC, VEA3CG+200serie ) Cable length 3m
VX007-F3 TTL/RS232 Converter Cable (for VPA 3 CG or VMA 3 CG) Cable length 3m
VX015-3
TTL/RS232 Converter Cable (for 100serie+VEA3CG) Cable length 3m
VX008-4 TTL/RS232 Converter Cable ( for Modem MD42, ILPH, ..) Cable length 4m
VA 1 DA-6 Arc Sensor Cable length 6m
VYX076 Raising Frame for 200-serie Height 40mm
VYX077 Raising Frame for 200-serie Height 60mm
