VAMP Ltd Generator protection relay
Operation and configuration
VAMP 210
VM210.EN004 Vamp 24h support phone: +358 (0)20 753 3264
9
1. Enter and confirmation key (ENTER)
2. Cancel key (CANCEL)
3. Up/Down [Increase/Decrease] arrow keys (UP/DOWN)
4. Selection of submenus [selection of digit in value]
(LEFT/RIGHT)
5. Additional information key (INFO)
Inside brackets is the term used for the buttons in this manual.
2.2.3. Indicators
The relay is provided with eight LED indicators on the relay
front panel:
Power
Error
Com
Alarm
Trip
A
B
C

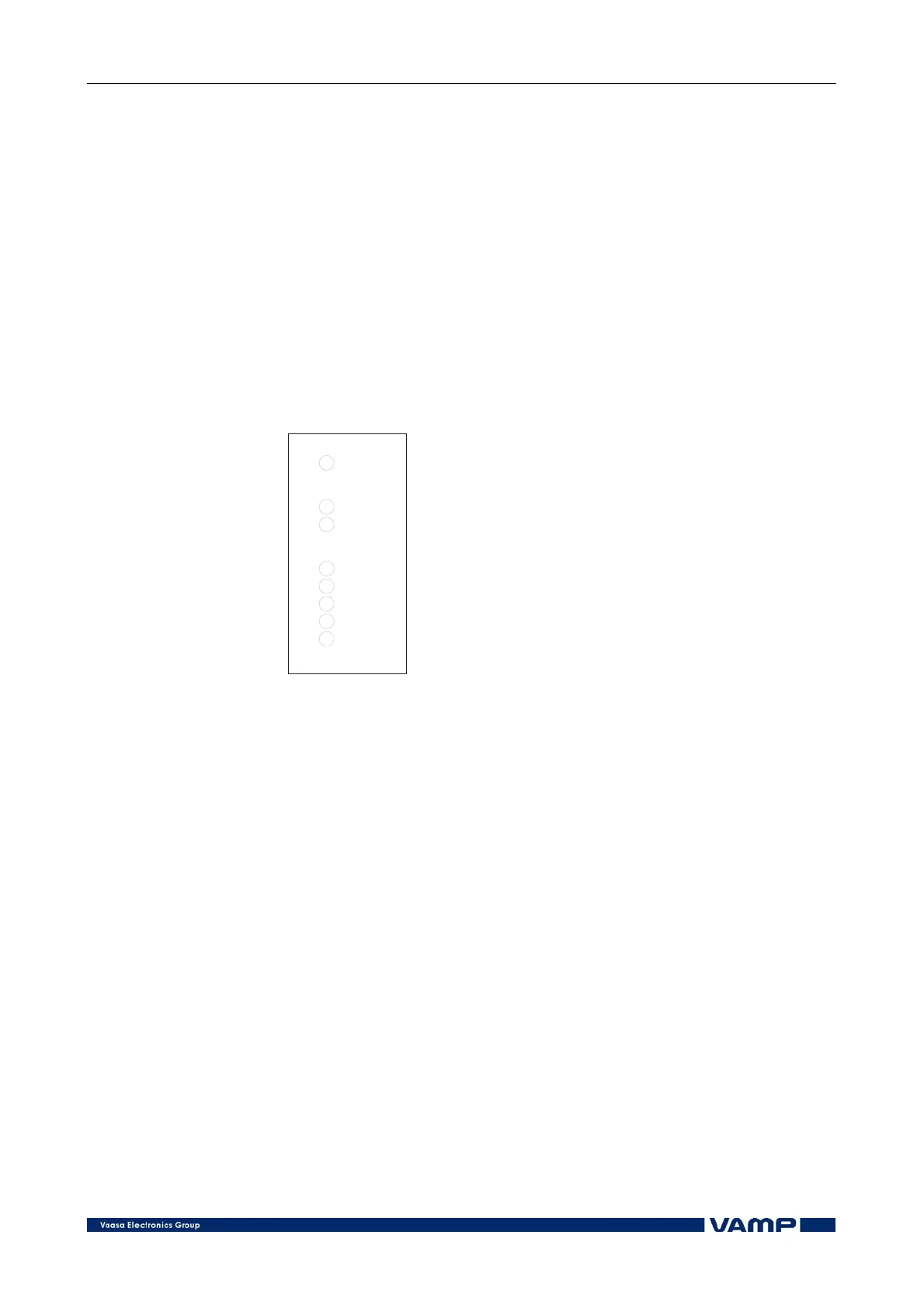

Figure 2.2.3-1 Operation indicators of the relay.
Relay operation indicators
Power Auxiliary voltage indicators
Error
Internal relay fault, operates in parallel with the self
supervision output relay
Com Serial communication indicator
Alarm Start indicator of protection stage
Trip Trip indicator of protection stage
A - C Can be programmed for application-related status indications
