VAMP 210 Generator protection relay
Technical description
VAMP Ltd
28
Vamp 24h support phone: +358 (0)20 753 3264 VM210.EN004
Parameters of the reverse power protection:
P<, P<< (32)
Parameter: Value/unit:
Measured
value
P kW Primary value of active power
P<, P<< kW Primary value of set value
P<, P<< %Pm
Setting value as compared to the
rated shaft power Pm
Setting
values
t<, t<< s Operating time
SCntr Cumulative start counter
TCntr Cumulative trip counter
Flt %
Max. value of reverse power as
compared to Pm
Recorded
values
EDly %
Elapsed time as compared to the
set operating time, 100% =
tripping
2.2.12. Overfrequency protection (81H)
The overfrequency protection operates when the generator
frequency exceeds the set start value, e.g. due to a sudden loss
of load, for instance when a power plant is islanding. The
frequency may also rise due to a fault in the generator
excitation system.
The resolution of the frequency measurement is 0.01 Hz and
the overfrequency protection has two adjustable frequency
stages.

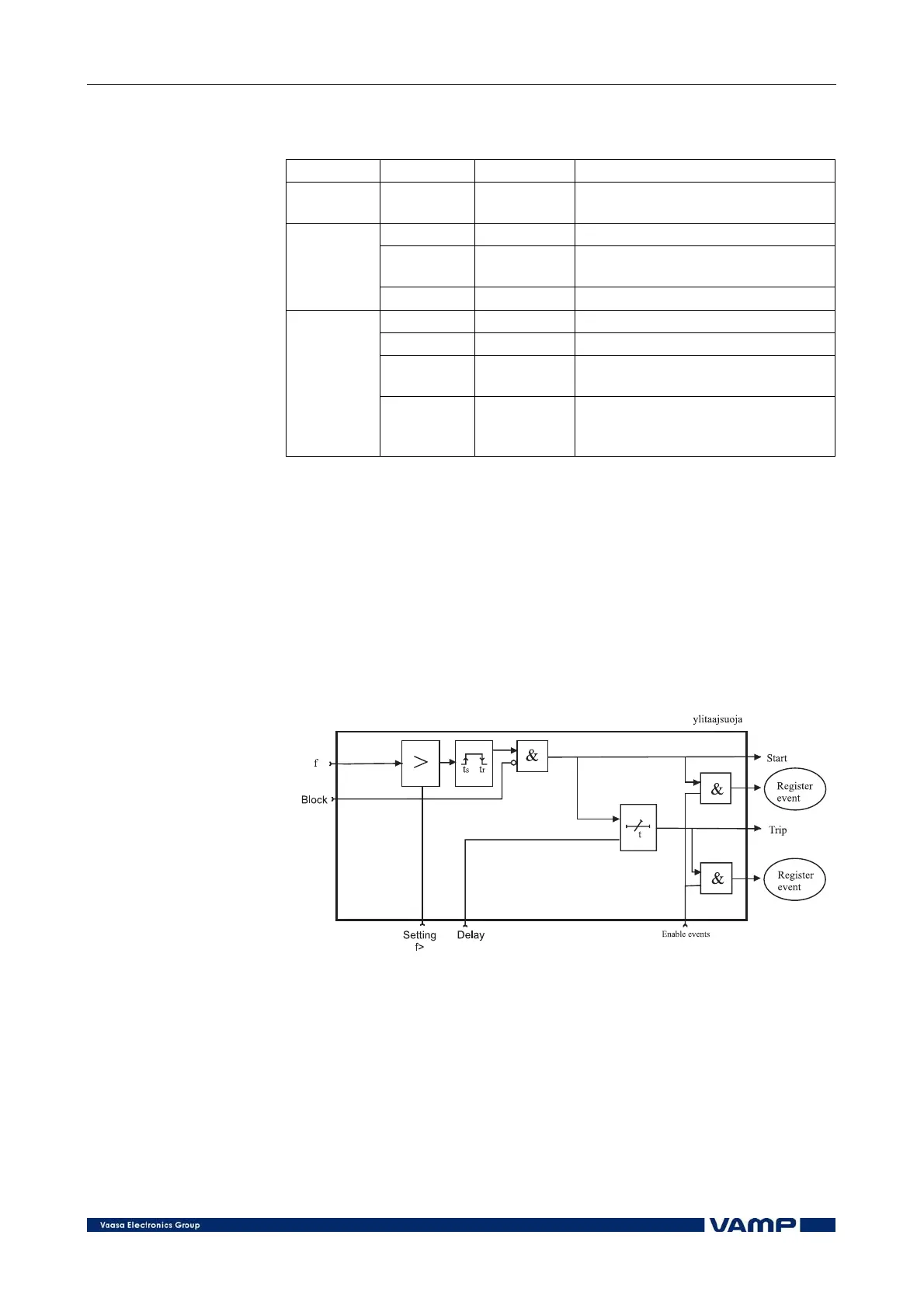

Figure 2.2.12-1 Block diagram of the overfrequency protection.
