6.2. Panel mounting

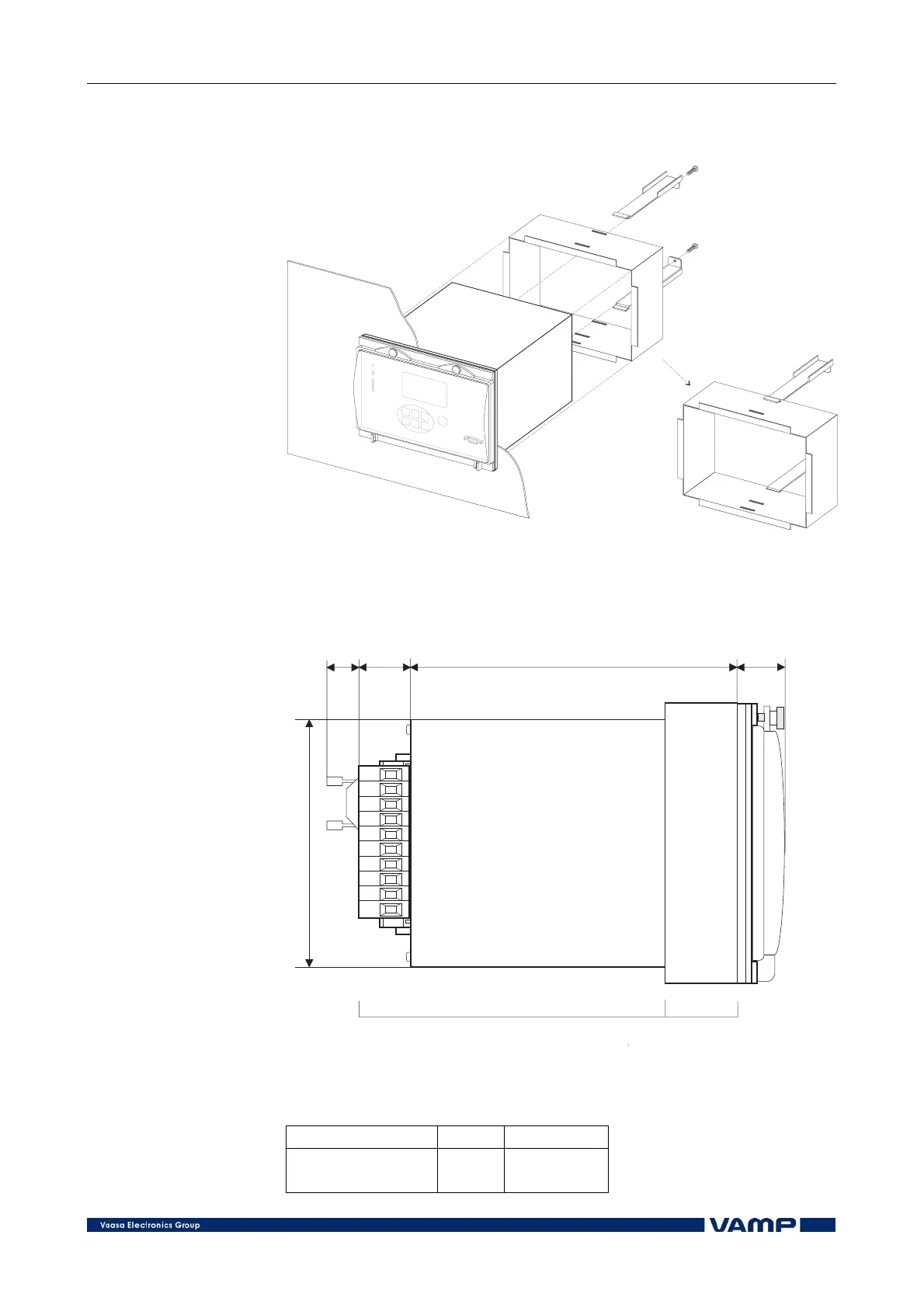

Figure 6.2-1 Flush-mounting of protection relay in panel.
6.3. Semi-flush mounting
27.0
181.0
28.0
137.0
P200_semi-flush
b
a
21.0
Figure 6.3-1 Semi-flush mounting of protection relay
Depth with raising frames
Type designation a b
VYX076 40 mm 169.0 mm
VYX077 60 mm 149.0 mm
