VAMP 210 User Manual

VAMP 210 Generator protection relay
Technical description
VAMP Ltd
42
Vamp 24h support phone: +358 (0)20 753 3264 VM210.EN004

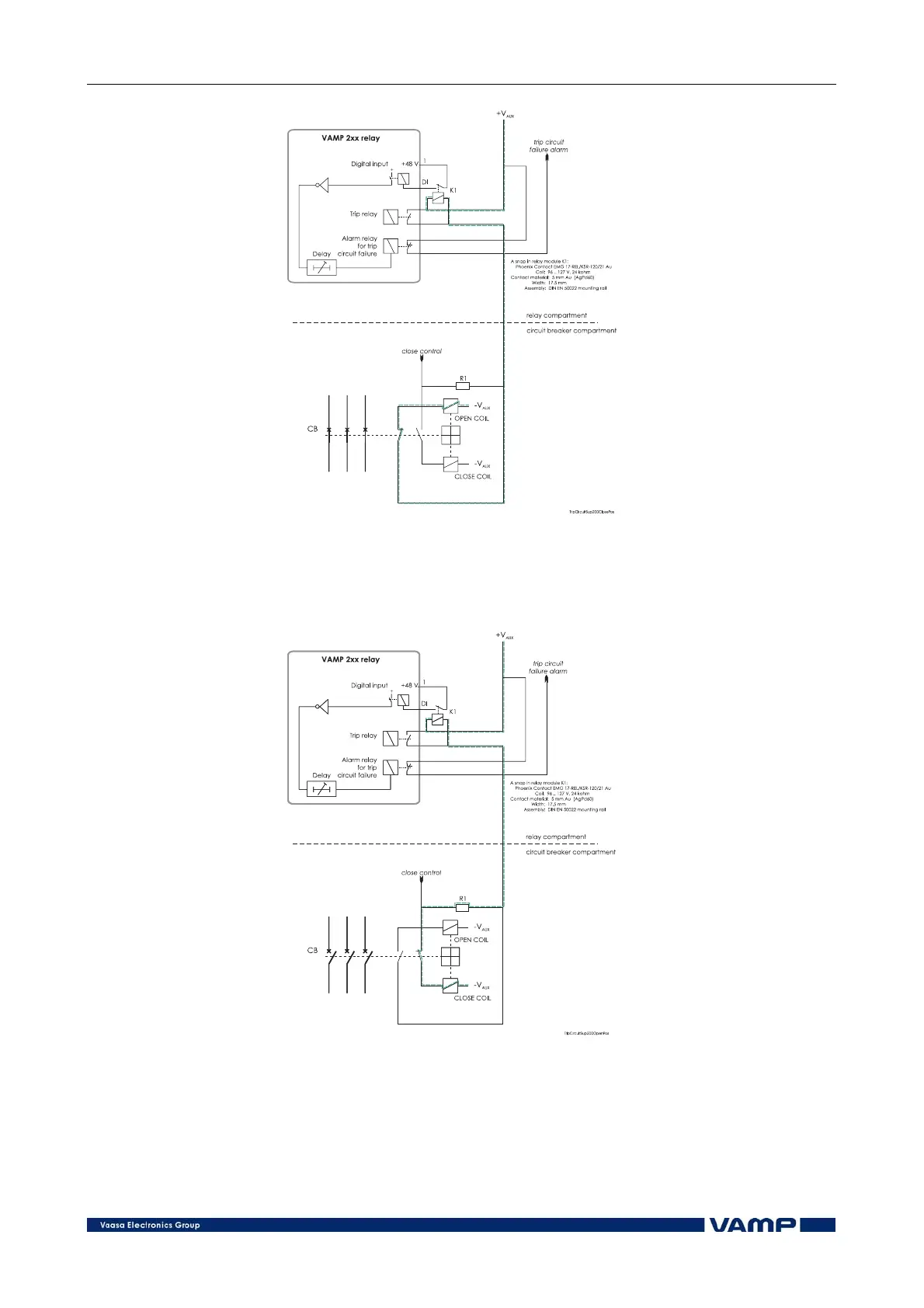

Figure 3.4-1. Trip circuit supervision when the circuit-breaker is closed.
The supervised circuitry in this CB position is double-lined. The digital
input is in active state. The value for R1 in this application is 3k3 and 2W.
These can be calculated from the resistance and voltage operating range of
the coil of K1 and the tolerance of the wetting voltage.
Figure 3.4-2. Trip circuit supervision when the circuit-breaker is open. The
supervised circuitry in this CB position is doubled-lined. The value for R1 in
this application is 3k3 and 2W. These can be calculated from the resistance
and voltage operating range of the coil of K1 and the tolerance of the
wetting voltage.
