Technical description
7 Applications
7.4 Trip circuit supervision
VM259.EN007
VAMP 24h support phone +358 (0)20 753 3264
241

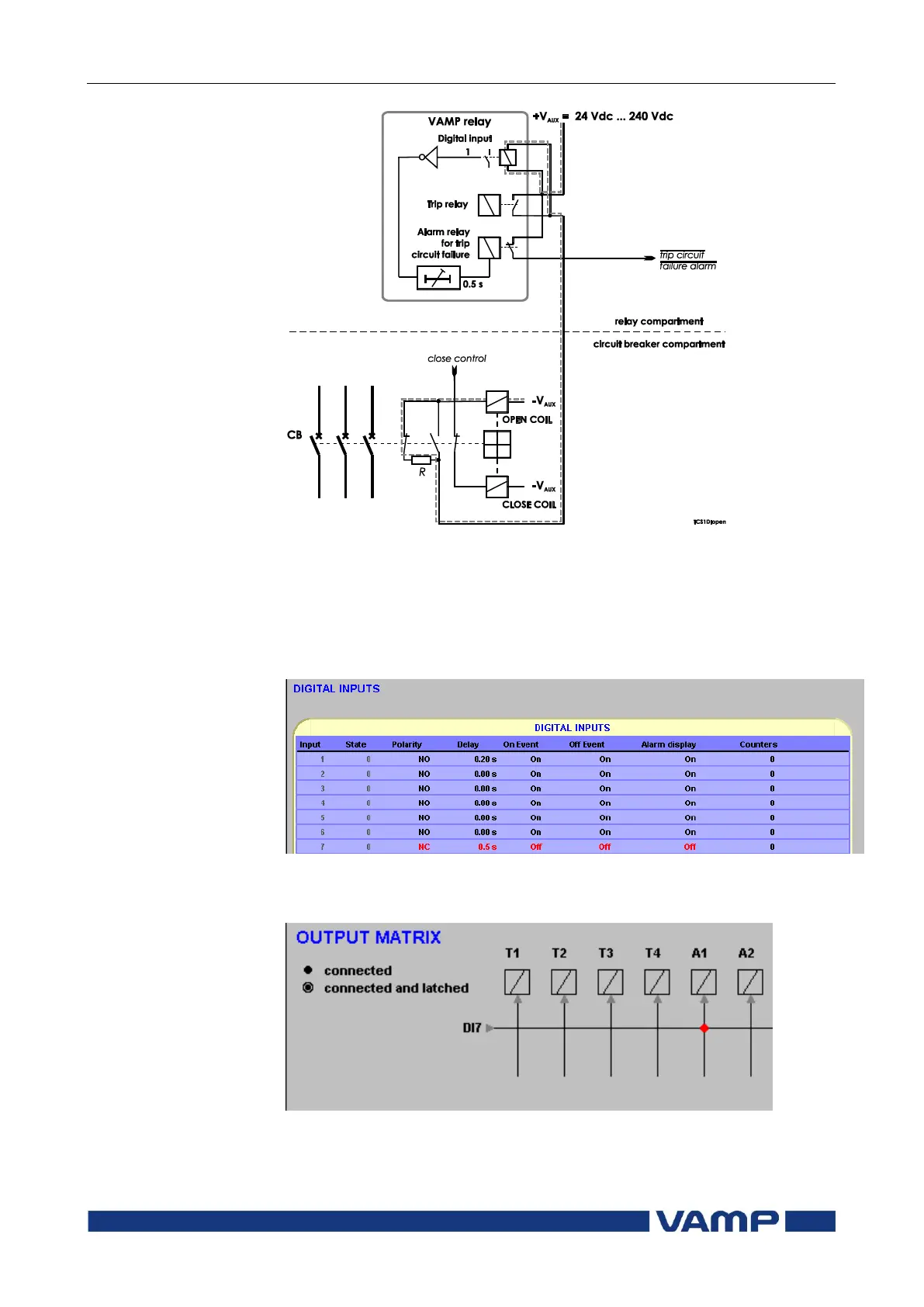

Figure 7.4.2-2 Trip circuit supervision using a single dry digital input, when
the circuit breaker is in open position.
Note: If for example DI7 is used for trip circuit supervision, the usage of DI8 ...
DI14 is limited to the same circuitry sharing the V
aux
in the common
terminal.
Figure 7.4.2-3 An example of digital input DI7 configuration for trip circuit
supervision with one dry digital input.
Figure 7.4.2-4 An example of output matrix configuration for trip circuit
supervision with one dry digital input.
