VAMP 259 - Page 254

8.1 Rear panel view
8 Connections
Technical description
254
VAMP 24h support phone +358 (0)20 753 3264
VM259.EN007

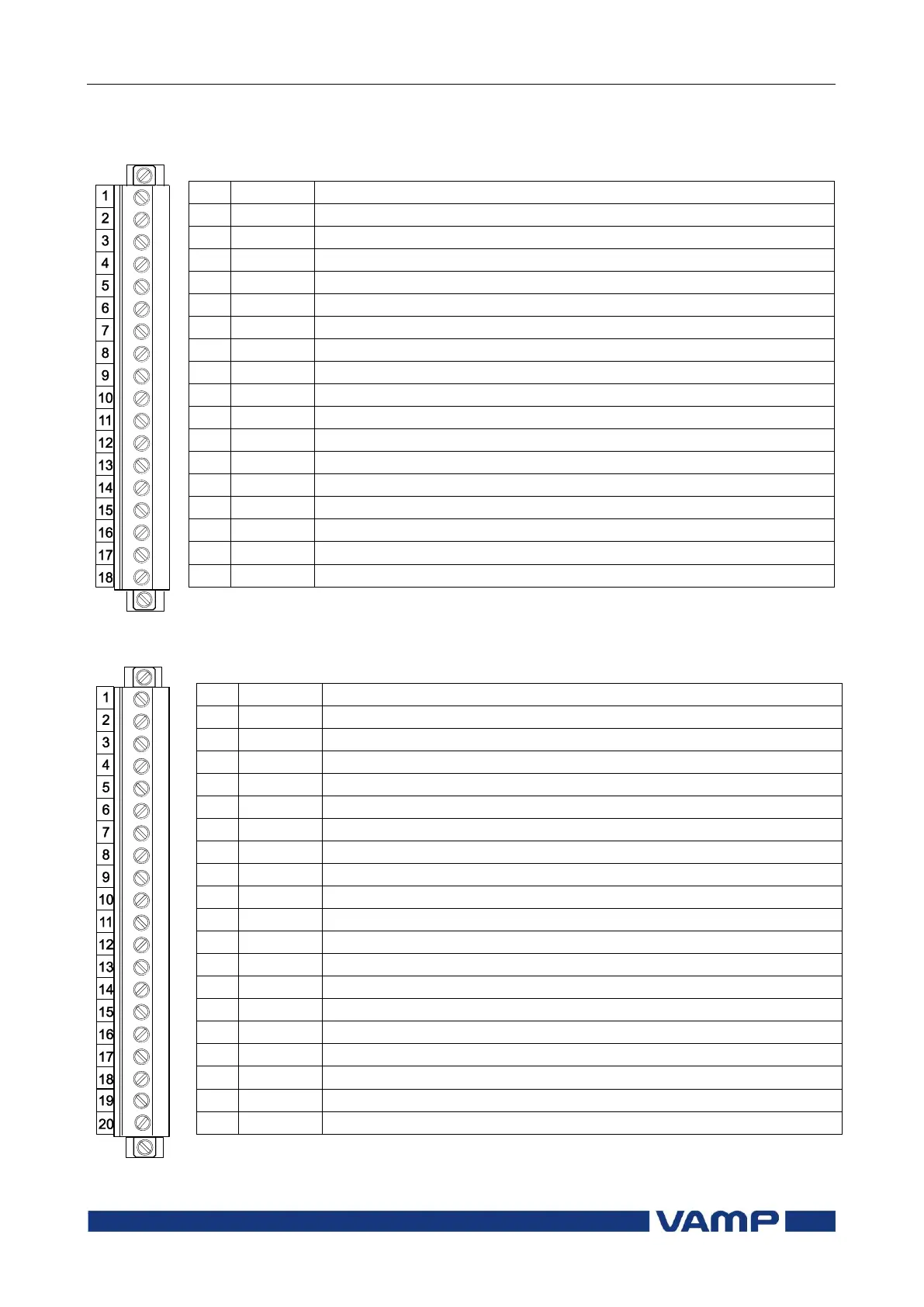

Terminal X7
No:
Symbol
Description
1
DI7
Digital input 7
2
DI8
Digital input 8
3
DI9
Digital input 9
4
DI10
Digital input 10
5
DI11
Digital input 11
6
DI12
Digital input 12
7
COM1
Common potential of digital inputs 7 – 12
8
DI13
Digital input 13
9
DI14
Digital input 14
10
DI15
Digital input 15
11
DI16
Digital input 16
12
D117
Digital input 17
13
DI18
Digital input 18
14
COM2
Common potential of digital inputs 13 – 18
15
T4
Trip relay 4
16
T4
Trip relay 4
17
T3
Trip relay 3
18
T3
Trip relay 3
Terminal X8 (VAMP 259-3C7)
No:
Symbol
Description
1
DI21
Digital input 21
2
DI22
Digital input 22
3
COM1
Common potential of digital inputs 21-22
4
DI23
Digital input 23
5
DI24
Digital input 24
6
COM2
Common potential of digital inputs 23-24
7
DI25
Digital input 25
8
DI26
Digital input 26
9
COM3
Common potential of digital inputs 25-26
10
DI27
Digital input 27
11
DI28
Digital input 28
12
COM4
Common potential of digital inputs 27-28
13
T8
Trip relay 8/ Digital input 32
14
T8
Trip relay 8/ Digital input 32
15
T7
Trip relay 7/ Digital input 31
16
T7
Trip relay 7/ Digital input 31
17
T6
Trip relay 6/ Digital input 30
18
T6
Trip relay 6/ Digital input 30
19
T5
Trip relay 5/ Digital input 29
20
T5
Trip relay 5/ Digital input 29
