Series 642 INSTALLATION
813316EB Edition 2017-11-24 31/
107

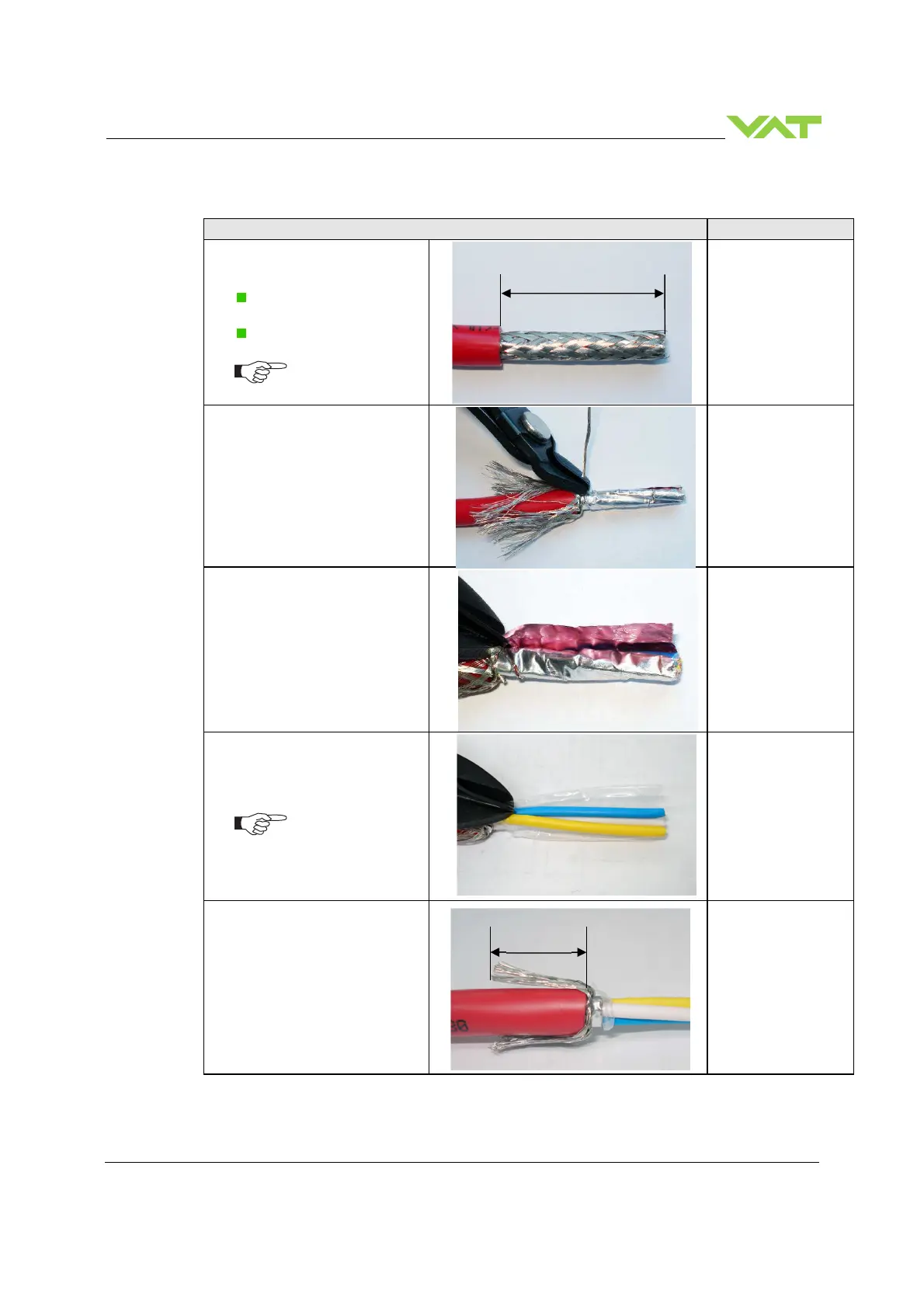

4.5.5.4 Install CC-Link cable at valve controller
Description
Required tool
3. Remove the cable coat
carefully
Cable Pos. A, x about
30mm
Cable Pos. B, x about
40mm
Pos. see step 8
Knife
4. Cut off the shield wire Side-cutting pliers
5. Cut off the aluminum shield
and remove it
Side-cutting pliers
6. Cut off the plastic and remove
it
Take care to the wires. Do not
damage the isolation of wires!
Side-cutting pliers
7. Cut off the shield wires about
15mm
8. Separate the shield wires in
two equal quantum and place
them 180° opposite
Side-cutting pliers
15mm
x
