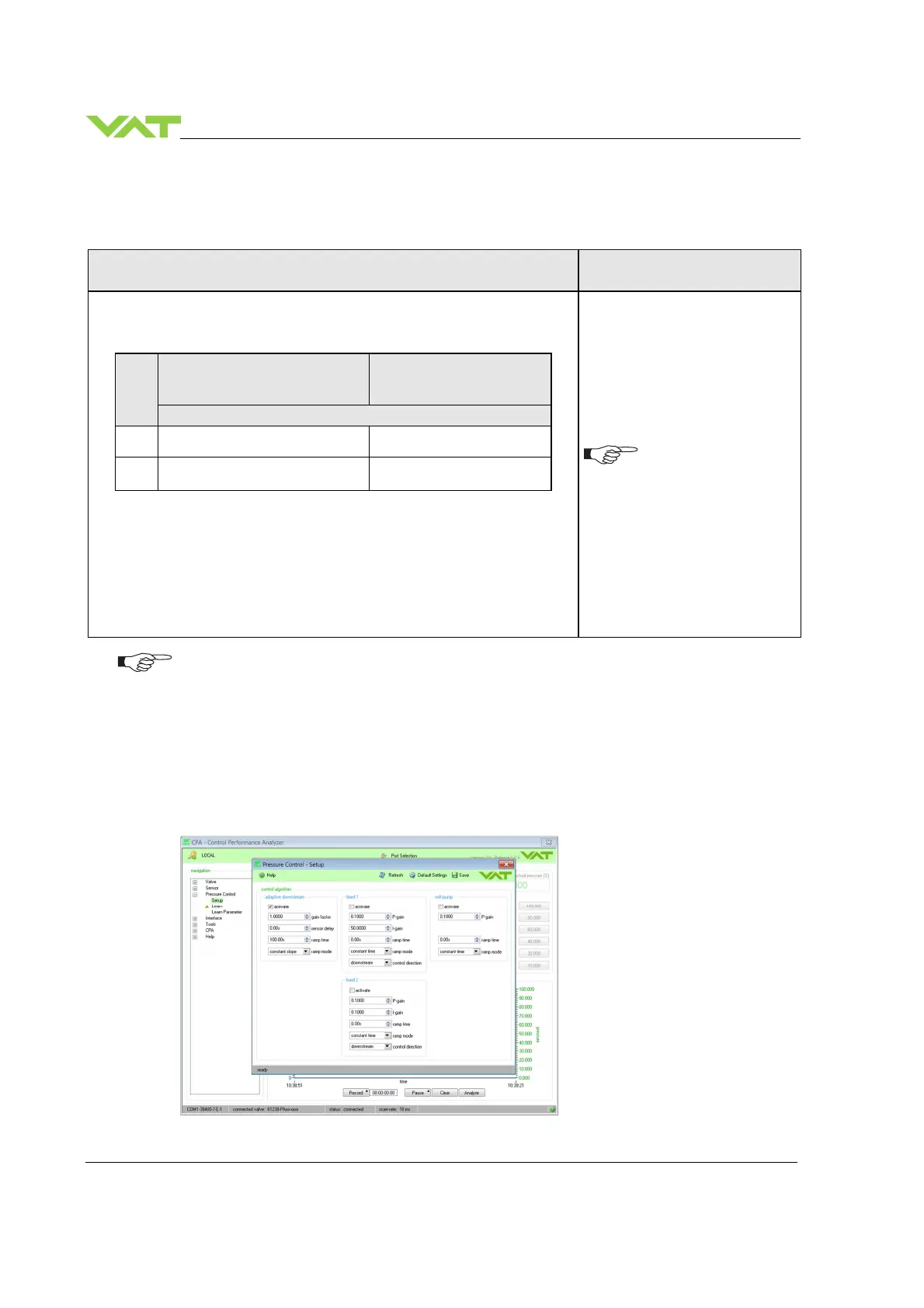

4.5.2.1 Pressure controller
Configuration of three possible pressure controller.
Local operation:
(‘Control View’ or ‘Control Performance Analyzer’)
Remote operation:
1. Open CV or CPA
2. Go to «Tools» > «Terminal» and send setup command s:02 according to
application needs. (possibility of adjustment see below)
Command
Acknowledgement
(within 10ms after reception of
command)
Describtion
Set
s:02Z00a
configure pressure controller a
Get
i:02Z00
get the actual pressure controller a
i:02Z00a
This command selects pressure controller.
a
Pressure controller
0 = Adaptive downstream
1 = Fixed 1
2 = Fixed 2
3 = Soft pump
It is not possible with
remote operation.
For easy setup (Local operation) of ‘Pressure controller’ and ‘Pressure control parameter’ please
use the VAT “Control Performance Analyzer” CPA 3.0.
There is a free download on the VAT home page, refer to: http://www.vatvalve.com/customer-
service/informations-and-downloads/control-performance-analyzer
4.5.2.2 With CPA 3.0 direct setup (standard)
Open the CPA. In menu ‘Pressure Control’ / ‘Setup’, select the ‘Pressure controller’ and do the setup for
pressure control algorithm (parameter).
