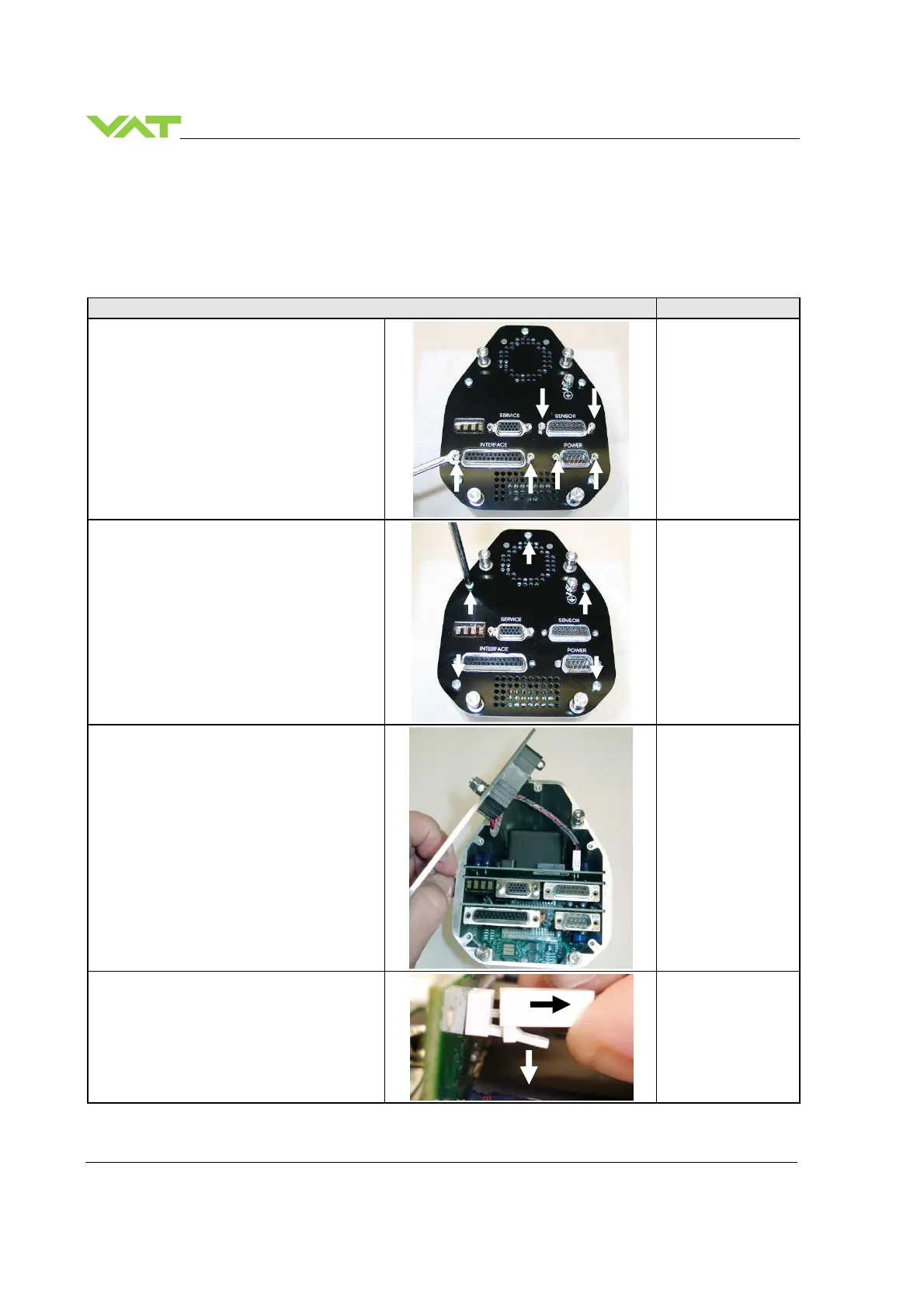

7.2.4.1 Required tools
• Pozidriv screw driver size 1
• Open end wrench 4.5mm
Description
Required tool
1. Remove female screw locks from
POWER, SENSOR and INTERFACE
connectors.
Open end wrench
4.5 mm
2. Remove the panel screws.
Pozidriv screw driver
size 1
3. Lift the panel carefully.
4. Pull out the option board a little.
5. Push the connector release (1) a little
down and disconnect fan cable (2) from
option board.
2
1
