8 Tuners

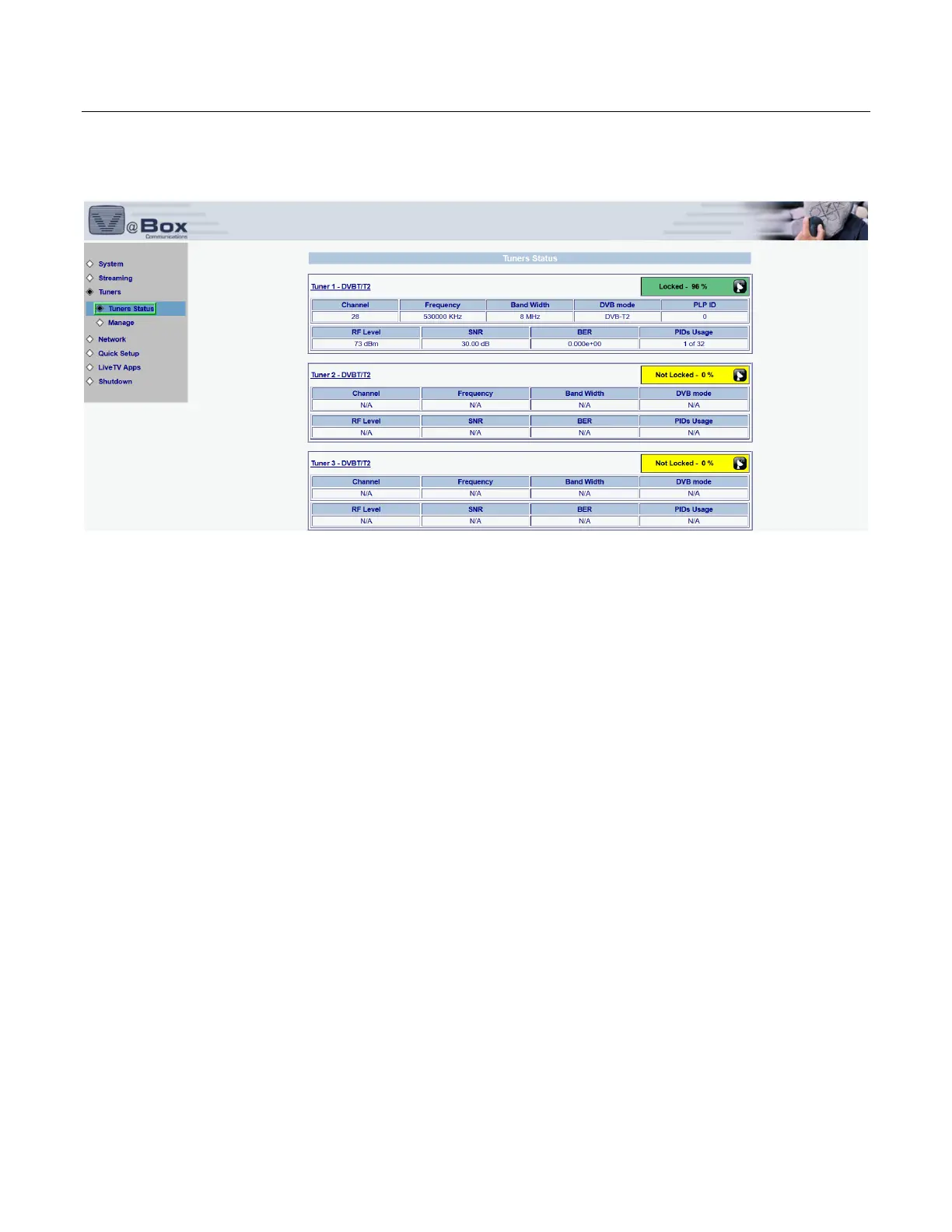

Select Tuner/Tuner Status option. The following screen displays.
Figure 31: Tuners Status
The signal strength indicates the strength of the signal being received as a relative percentage of
the total range of the XTi receiver. The background color is green if the signal strength is within
the acceptable range of 22% to 88% and yellow if it is outside of this range.
When the XTi is locked onto the frequency, the signal lock bar is green and states ‘Lock’.
Otherwise, the bar displayed is yellow with the text ‘Not Locked’.
