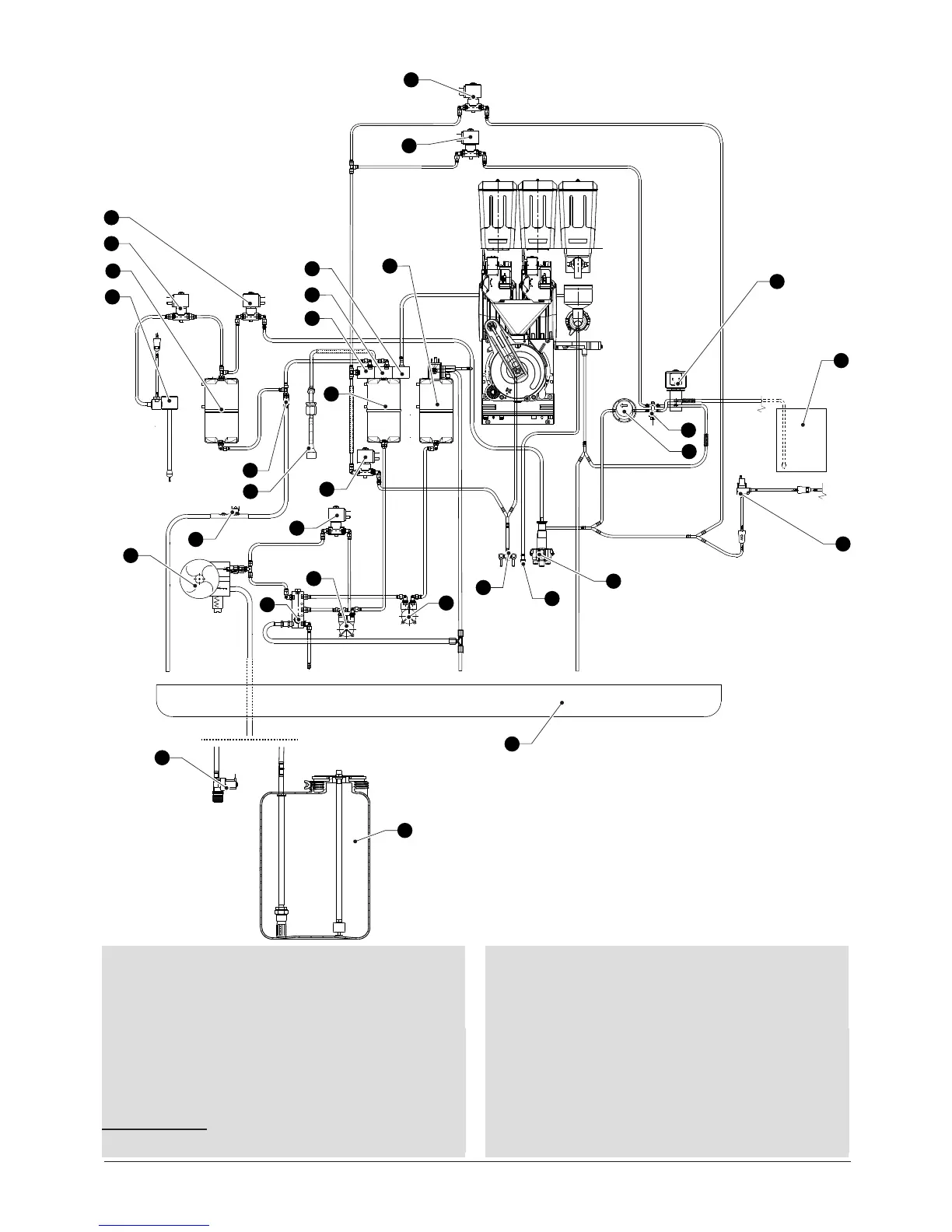

VendCo KARISMA - 2 Espresso Cappuccino Hydraulic Circuit

© by N&W GLOBAL VENDING S.p.A. 02-2014 4535 00
1- MAINS WATER SOLENOID VALVE (EEA)
2- WATER PUMP
3- PRESSURE SWITCH
4- INSTANT BEVERAGE BOILER VOLUMETRIC COUNTER
5- ESPRESSO BOILER VOLUMETRIC COUNTER
6- INCREASED WATER FLOW SOLENOID VALVE (EV2H2O)
7- THERMOSTAT
8- "HOT WATER" SPOUT
1
9- WATER ADDITION SOLENOID VALVE (EVAG)
10- SAFETY SOLENOID VALVE
11- INSTANT BEVERAGE BOILER
12- STEAM SPOUT
1
13- STEAM BOILER
14- "STEAM" SPOUT SOLENOID VALVE (EVLVAP)
1
15- STEAM SOLENOID VALVE (EVVAP)
2
1 Only some models
2 Only models with cappuccino maker
16- STEAM BOILER LOAD SOLENOID VALVE (EEAVAP)
17- "HOT WATER" SPOUT SOLENOID VALVE (EVH2O)
1
18- INSTANT BEVERAGE SOLENOID VALVE
19- ESPRESSO BOILER
20- CAPPUCCINO MAKER WASH SOLENOID VALVE (EVWMLK)
2
21- MILKER NOZZLE WASH SOLENOID VALVE (EVWEMU)
2
22- PIPE CLAMP SOLENOID VALVE (EVPINZ)
2
23- MILK CONTAINER
2
24- FITTING
2
25- MILK PUMP
2
26- "AIR" SOLENOID VALVE (EVAIR)
2
27- MILKER NOZZLE
2
28- INSTANT BEVERAGE NOZZLE
29- FLOW DIVIDER COFFEE NOZZLE
30- LIQUID RESIDUE CONTAINER
31- SELF-SUPPLY TANK
2 ESPRESSO CAPPUCCINO HYDRAULIC CIRCUIT
