Vento Phantom R4i - Engine Cowl Assembly

VENTO MOTORCYCLES
Rev no.01/ page 27of 84

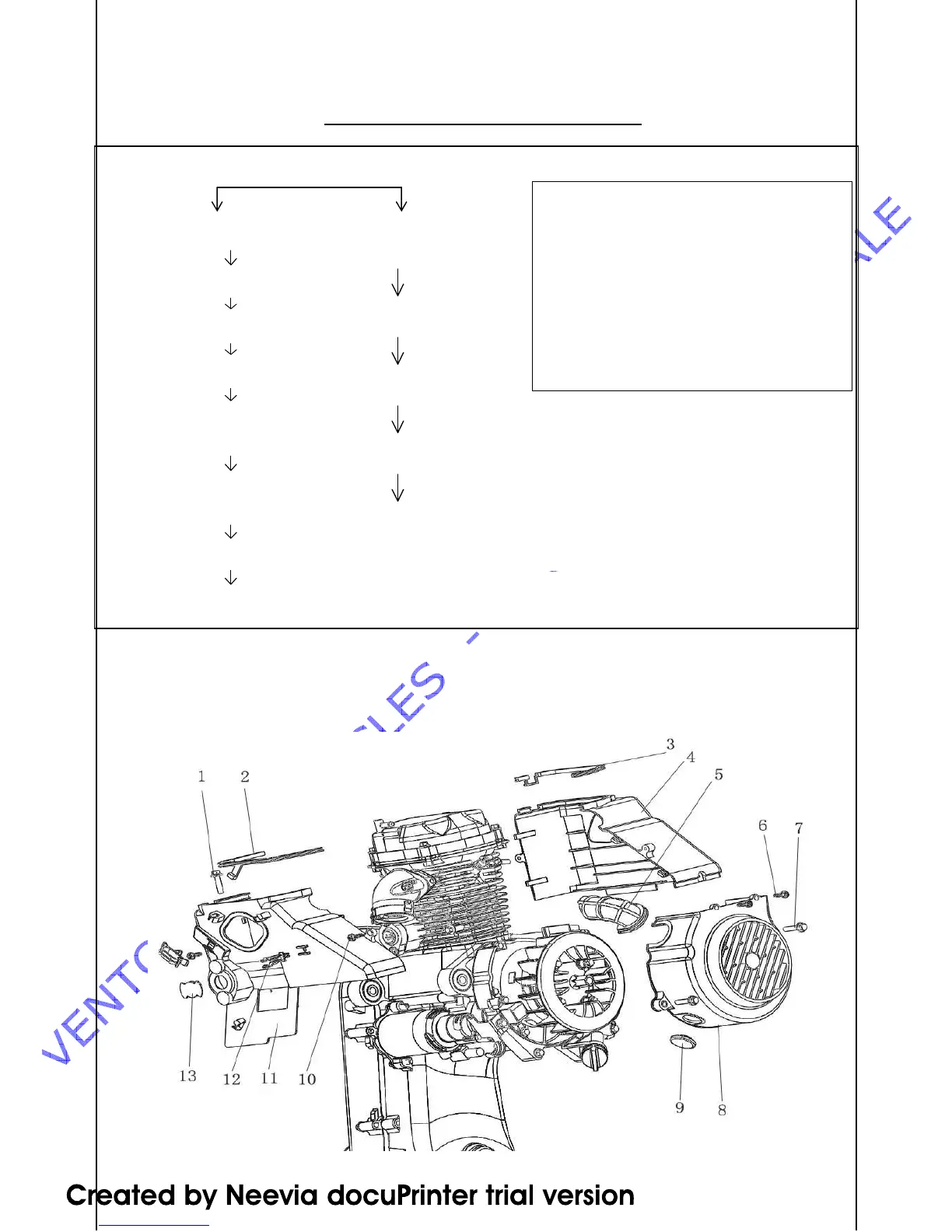

E N G I N E C O W L A S S E M B LY
Disassembly
• Assembly sequence is just reverse of disassembly
C Y L I N D E R H E A D A S S E M B LY
Screw (6)
Bolt (7)
Fan cover assy. (8)
Cover (9)
Cooling pipe (5)
Screw (10)
Bolt (1)
Top cowling
Bottom cowling
Top cowling
Seal gasket (2)
Bottom cowling seal
gasket (3)
Coil clip (12)
Cover (13)
Specified torque value
Fan cover screw(6) 2NM
Fan cover bolt (7) 11NM
Guide fan cover screw (10) 2NM
Guide fan cover bolt (1) 11NM
