Vento Phantom R4i - Clutch Shoe;Movable Driven Face

VENTO MOTORCYCLES
Rev no.01/ page 38of 84
C L U T C H S H O E / M O VA B L E D R I V E N FA C E

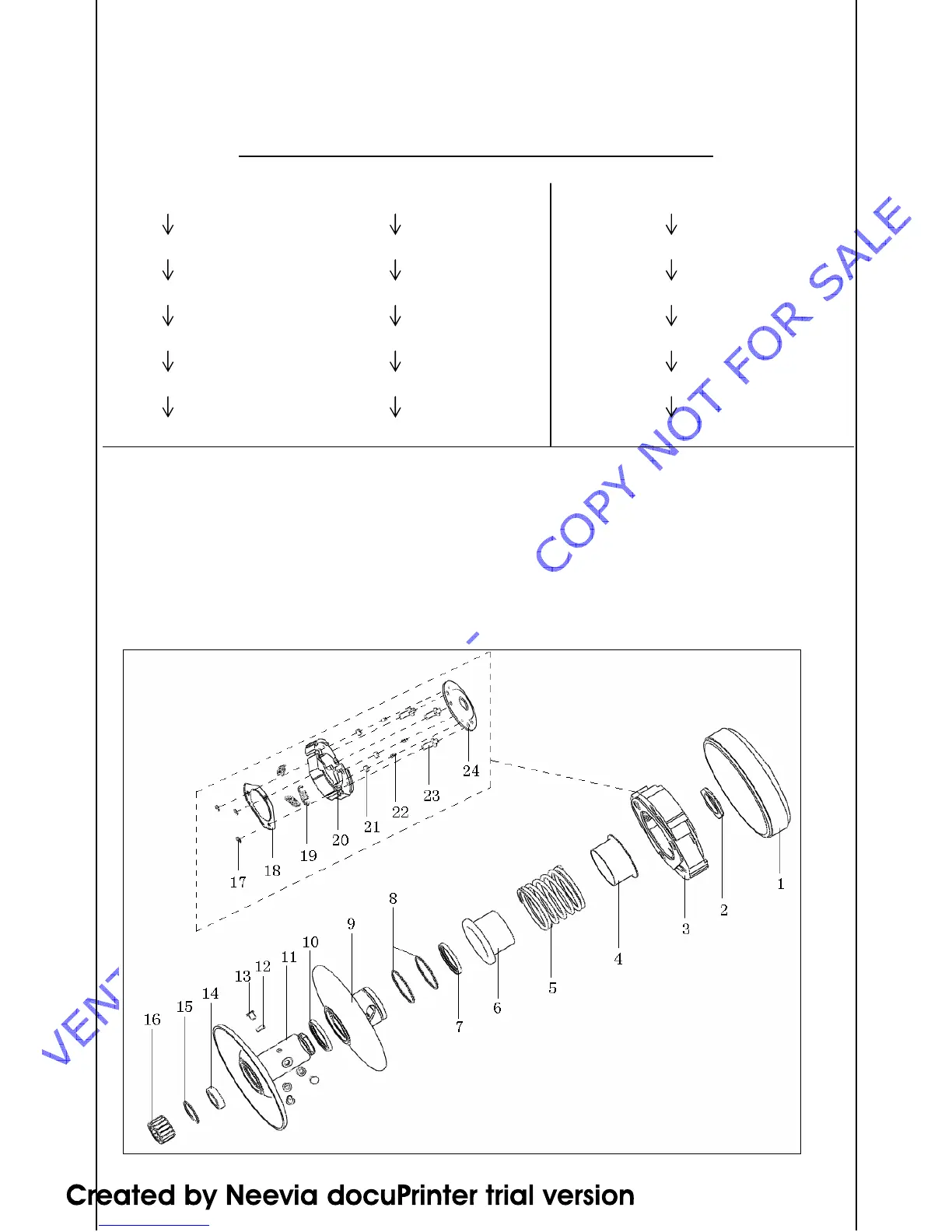

REMOVAL DISASSEMBLY
Driven wheel disc assy. spring bush (6) clip circle17
Clutch disc1 fixing axes13/sliding pin12 clutch side board18
Nut2 seal7/driven step less shifting disc9 spring19/clutch mass20
Clutch driving board assy.3 rolling needle bearing16 damper rubber21
Spring holder bush4 clip circle (5)/ball bearing14 limiter22/pin shaft23
Compression spring5 rear transmission main disc11 driving board bottom holder24
ASSEMBLY: The assembly sequence is just reverse of removal.
NOTE:
• When reinstalling clutch driving board assy., be sure to use new limiter and pin shaft, and ensure
stable connection.
• When installing ball bearing and roller needle bearing, use some lubrication to ensure free turning,
without sticky, and then use circlip (15) in proper position.
• Before installing driven step less shifting disc, cover the driven step less disc with 2 O-rings (8) and
assemble seal (l0).
