Vento Phantom R4i - Right Crankcase Cover Installation

VENTO MOTORCYCLES
Rev no.01/ page 33of 84

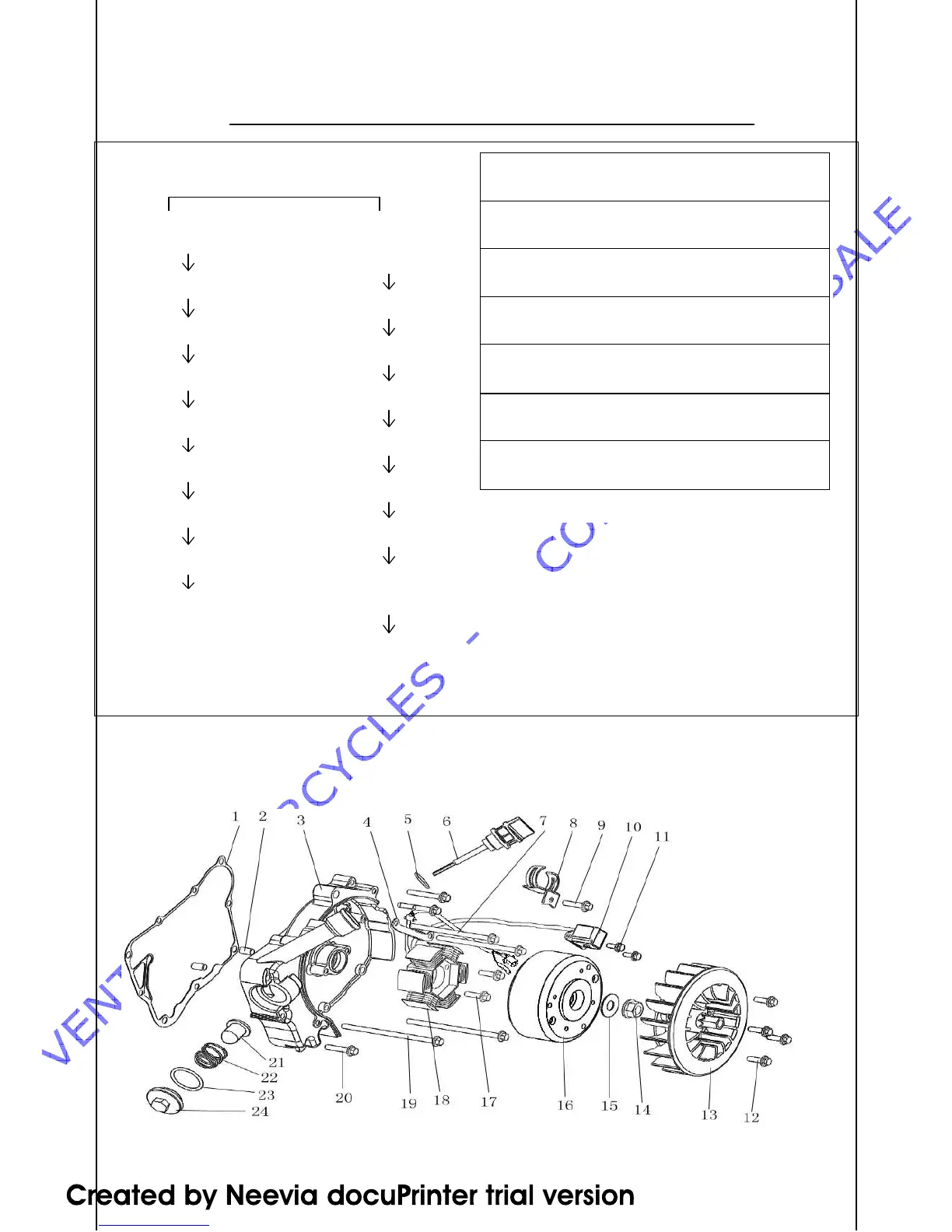

R I G H T C R A N K C A S E C O V E R A C C E S S O R I E S
REMOVAL:
INSTALLATIONThe installation sequence is just reverse of removal.
NOTICE1. The clearance between flywheel trigger and pickup is 0.5±0.2mm.
2. Check specified clearance between flywheel trigger and pickup.
Oil filter screw cap
(24)
O-ring (23)
Spring (22)
Filter assy. (21)
Oil gauge (6)
Seal (5)
Other bolts
Right crankcase
end cover (3)
Gasket (1)
Screw (12)
Fan assy.(13)
Nut (14)
Gasket (15)
Flywheel (16)
Screw (11)
Pickup assy. (10)
Bolt (7)
Cable holder (4)
Specified Torque Value
Nut (14) 50N.M
Magnet motor bolt (17) 7N.M
Fan bolt (12) 11N.M
Trigger screw (11) 6N.M
Oil filter screw cap (24) 57N.M
Other bolts for right crankcase cover 11N.M
