L E F T C R A N K C A S E C O V E R I N S TA L L AT I O N
REMOVAL

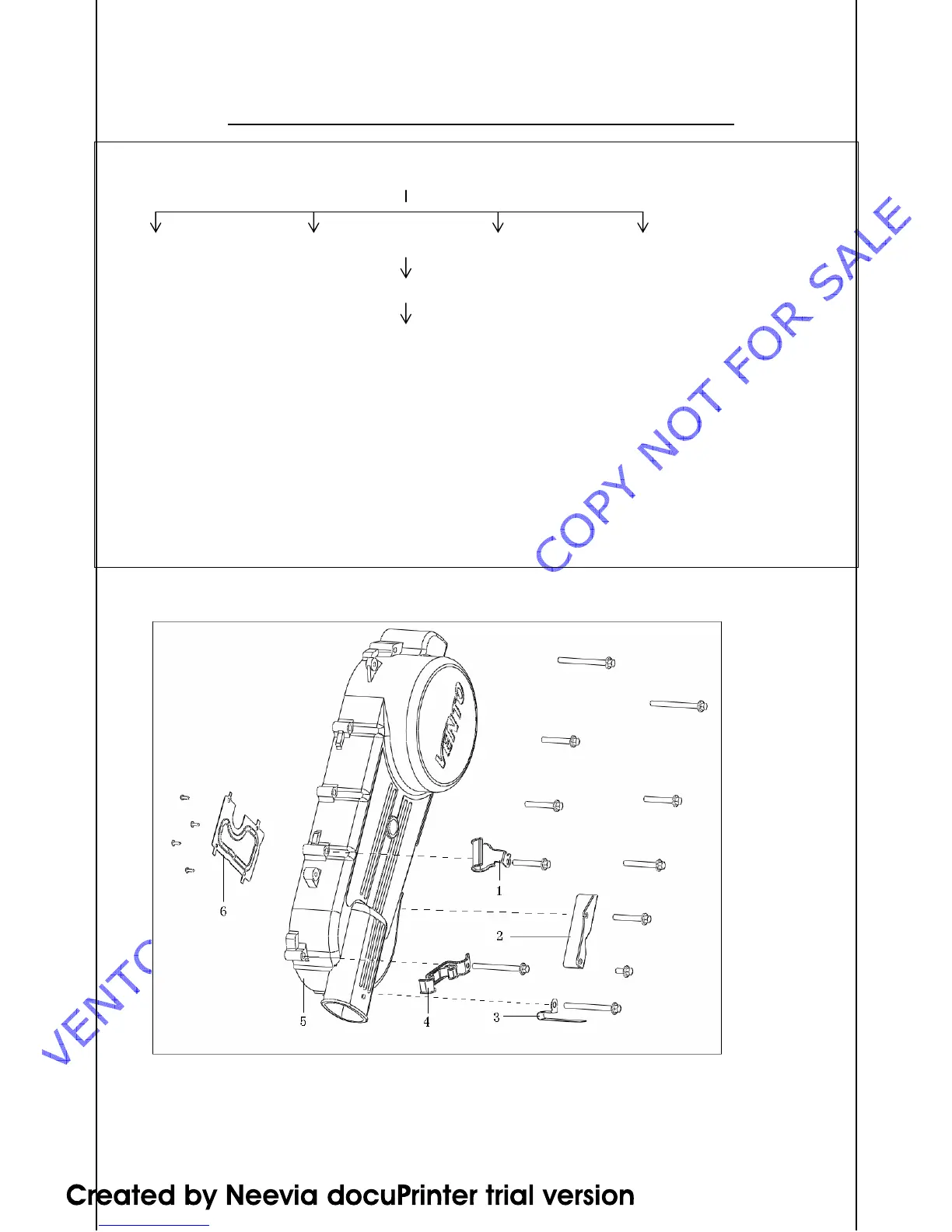

Left crankcase cover assy.
Brake cable clip (1) main stand stopping holder ventilation pipe clip (3) throttle cable holder (4)
Left crankcase cover (5)
Guide board (6)
INSTALLATION: The installation sequence is just reverse of the removal
NOTICE:
1. When installing ventilation board, respectively of 4 tapping screws, with specified torque 3-6N.M, and
tighten the board plate with same tool, then respectively cover tapping screw head.
2. When installing left crankcase cover, tap it to its proper position with wooden hammer or plastic hammer
not with metal hammer to avoid damaging the face of crankcase & crankcase cover.
3. Brake cable clip (1), main stand stopper holder (2), ventilated clip (3), throttle-fixing stand (4) must be
positioned correctly.
4. Tighten all the bolts diagonally with specified torque10-12N.M.
