S U P E R C L U T C H I N S TA L L AT I O N
REMOVAL

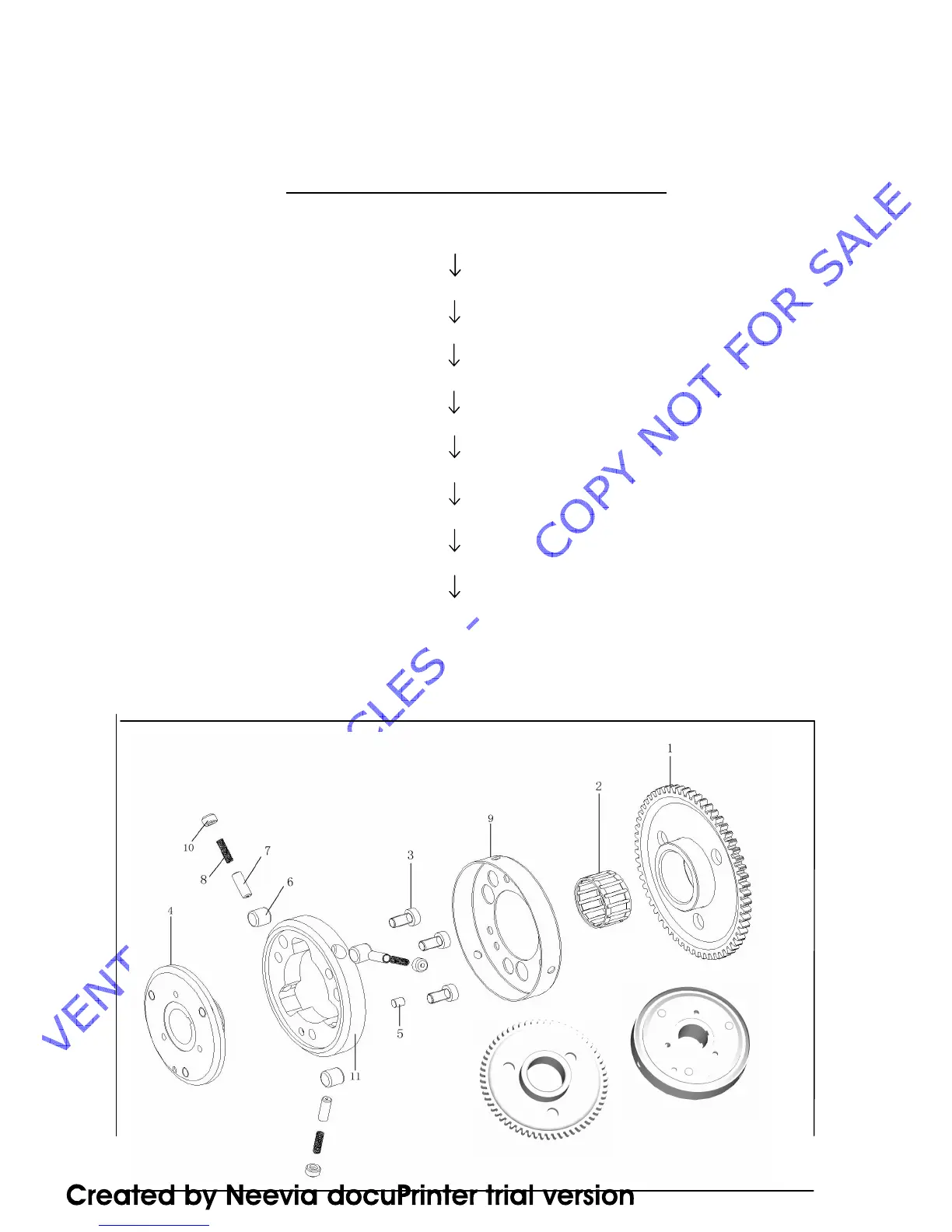

Clutch gear comp.1
Rolling needle bearing2
Screw M63
Clutch hub4
Pin5
Rolling pole6spring bush7and spring8
Clutch outside circle rubber9
Spring seat10
Clutch side circle11
InstallationThe installation sequence is just reverse of removal.
NOTE :
• Should not be loose clutch side cover, screw M6 and spring seat after installation.
• Clutch gear should turn only one direction.
