Vento Phantom R4i - Front Shock Absorber

VENTO MOTORCYCLES
Rev no.01/ page 62of 84

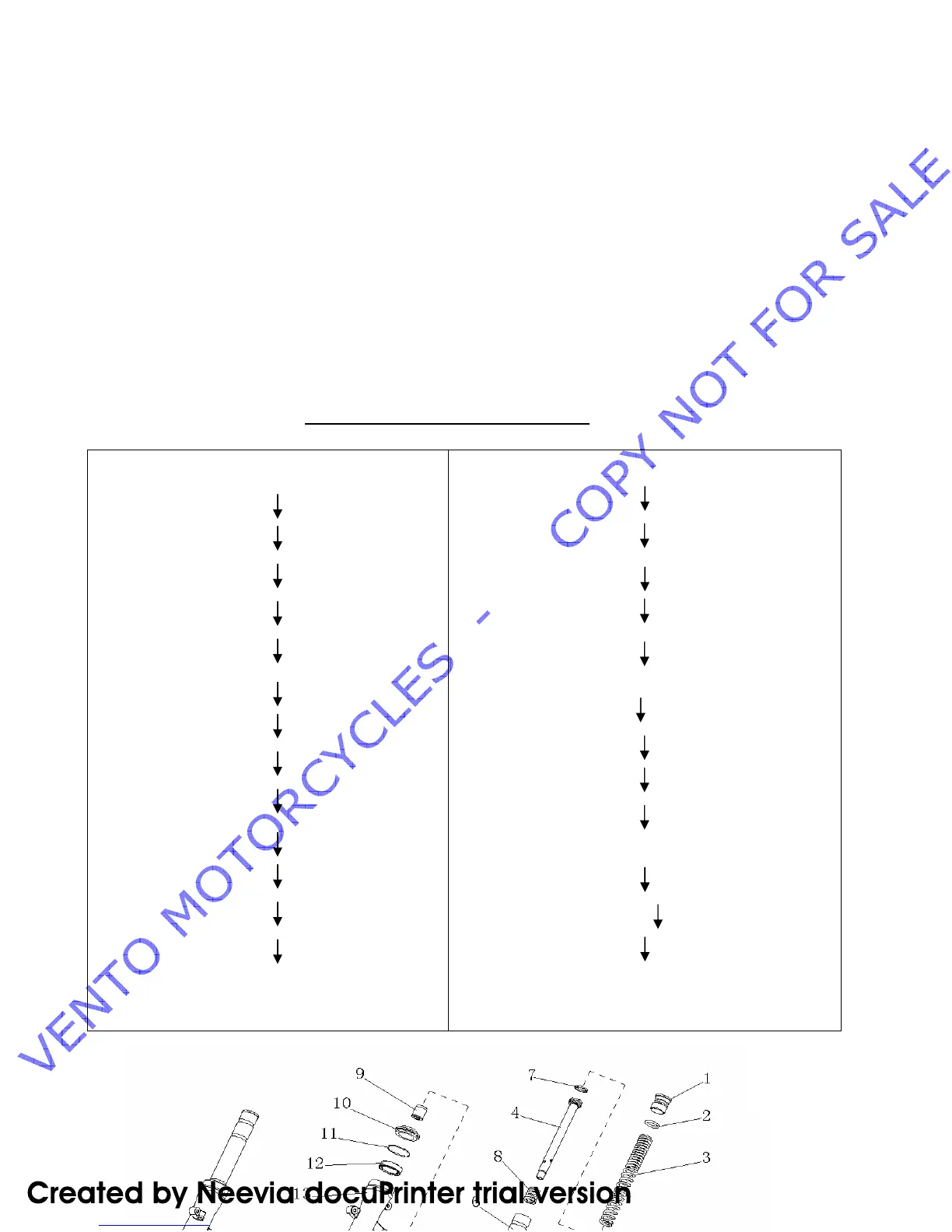

FRONT SHOCK ABSORBER
Disassembly
Bolt (1)
O-seal ring (2)
Absorber spring (3)
Piston lever4
Screw (5) and gasket
Inner tube assy. (6)
Piston lever/piston ring (7)
Buffer spring (8)
Outer tube assy.
Anti-dust ring assy.10
Oil seal stopper ring11
Oil seal assy.12
Aluminum outer tube13
Buffer prick9
Assembly
Install piston ring into piston lever
Install buffer spring into piston lever
Install above assy. into inner tube assy.
Cover piston lever with buffer prick bush
Install above accessories into aluminum outer tube
Tighten screwgasket
(Fixing torque is 20 Nm)
Oil seal assy.
Oil seal stopper ring
Anti-dust ring assy.
Add oil for absorber
(100±2 ml )
Buffer spring seal
O-seal ring
Bolt
Fixing torque is 23 Nm
