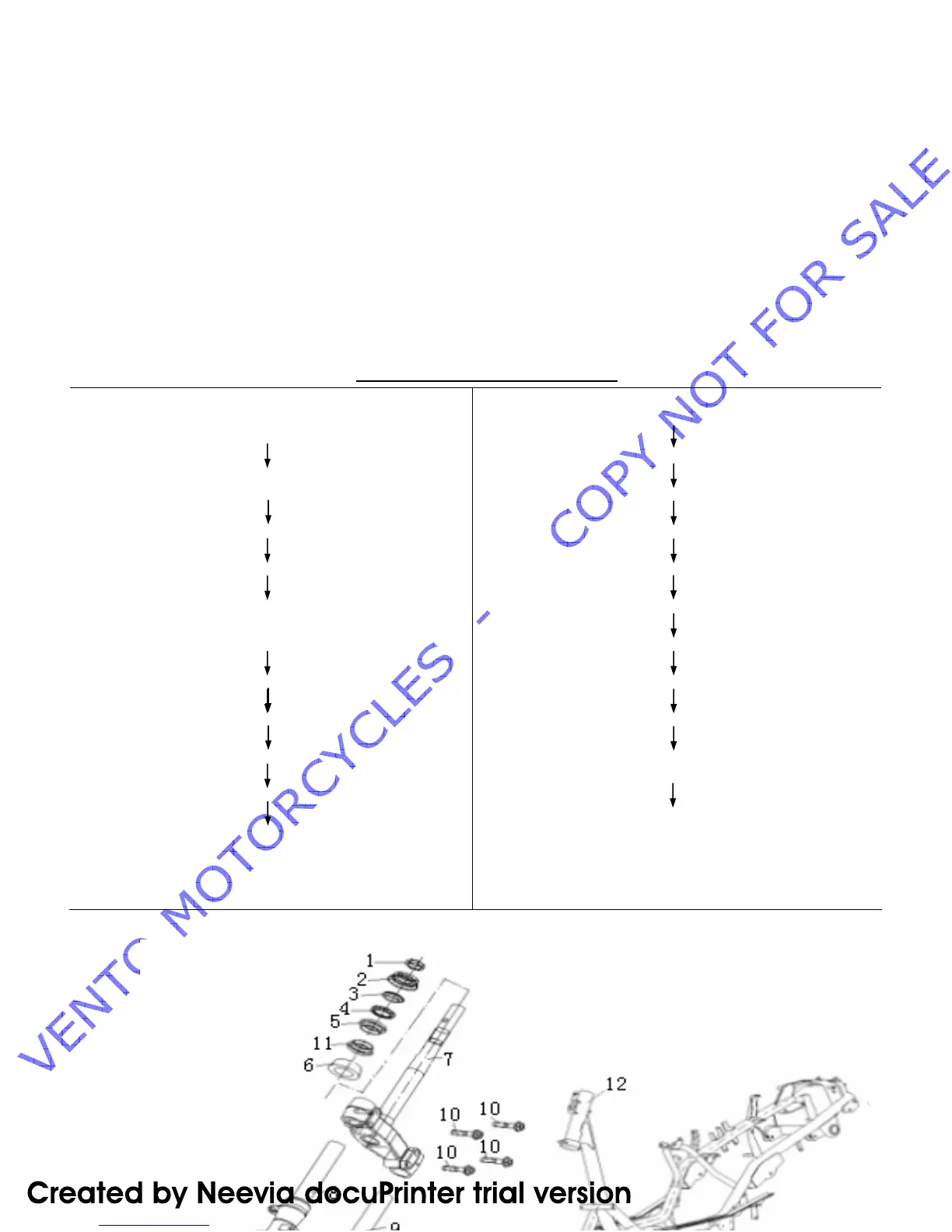

FRONT FORK ASSEMBLY
Disassembly
Nut M10X125X5010
Front left absorber assy.9, front right absorber
assy.8
Special locknut1
Anti dust spring assy 2
Upper steel bowl 3
Upper steel ball4
Under connecting support assy.7
Taper roller bearing (6)
Upper steel bowl holder5
Under steel bowl holder11
Frame assy.12
Assembly
Frame assy.12
Under steel bowl holder11
Upper steel bowl holder5
Taper roller bearing (6)
Under connecting support assy.7
Upper steel ball assy.4
Upper steel bowl 3
Anti dust spring assy 2
Special locknut 1
Front left absorber assy.9, front right absorber
assy.8 
Bolt M10X125X5010
