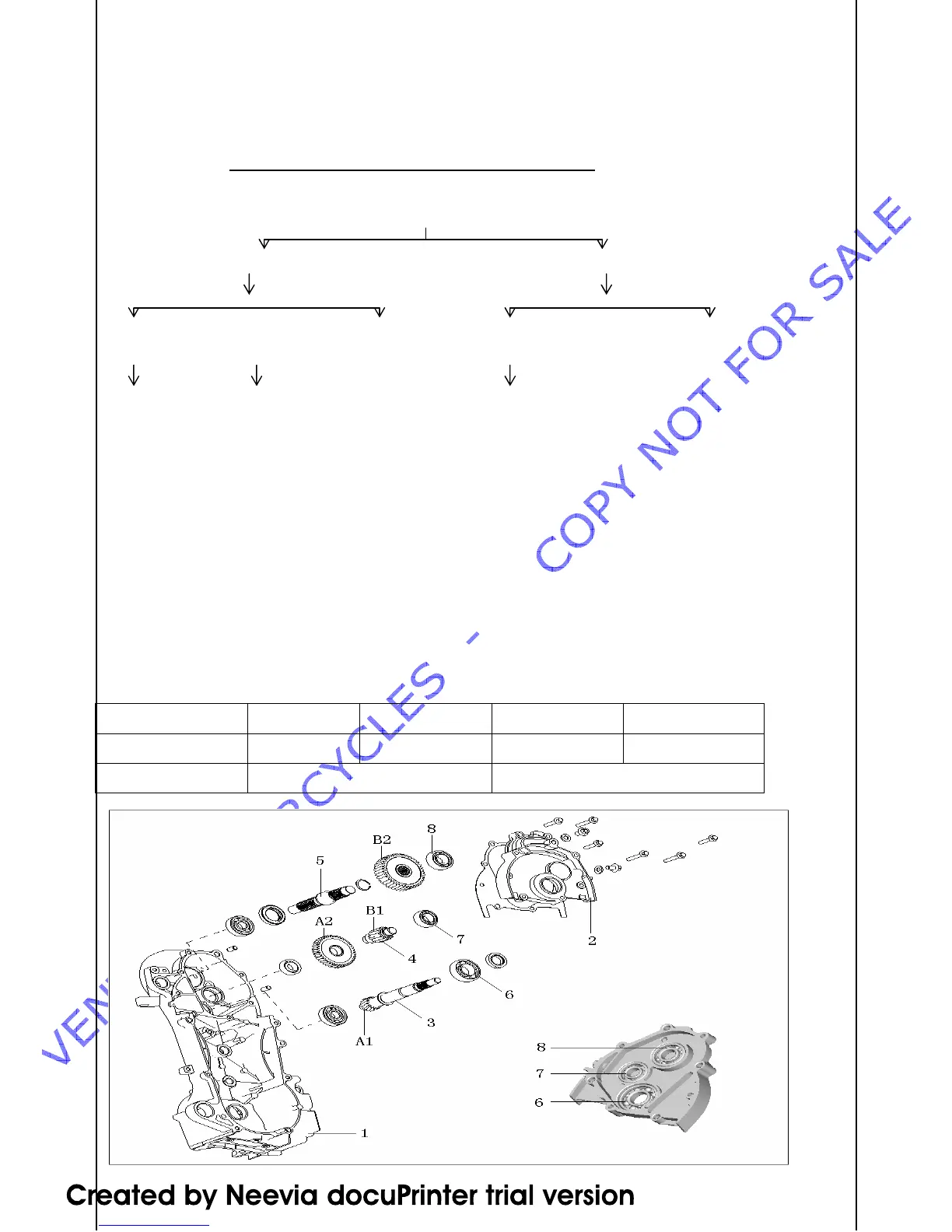

TRANSMISSION CASE INSTALLATION
REMOVAL
Transmission case assy.
Left crankcase assy.1 Transmission case cover assy.2
Middle shaft assy.4output shaft assy.5 Input shaft bearing input shaft (3) middle shaft bearing output
shaft bearing
Middle shaft bearing Output shaft oil seal and bearing Input shaft oil seal and bearing
INSTALLATIONThe installation sequence is just reverse of the removal.
NOTE:
• Check Correct position of each bearing, the mark of bearing should be outside and its rotation should
be freely, without any obstruction.
• During assembly of oil seal, should be apply little oil, don’t damage the oil seal.
• Various gears should be positioned properly and should be turn freely.
• To assemble 6 Bolts, first of all pre-fasten pin bolt, tighten various bolts, with specified torque
10~12NM.
• The specified torque 2 oil bolts is 22~25 NM.
Gears A1 A2 B1 B2
Gears qty. 15T 42T 13T 40T
Gear Ratio 2.8 3.077
