Vento Phantom R4i - Kick Shaft Assembly; Transmission Gear Shaft Assembly

VENTO MOTORCYCLES
Rev no.01/ page 39of 84

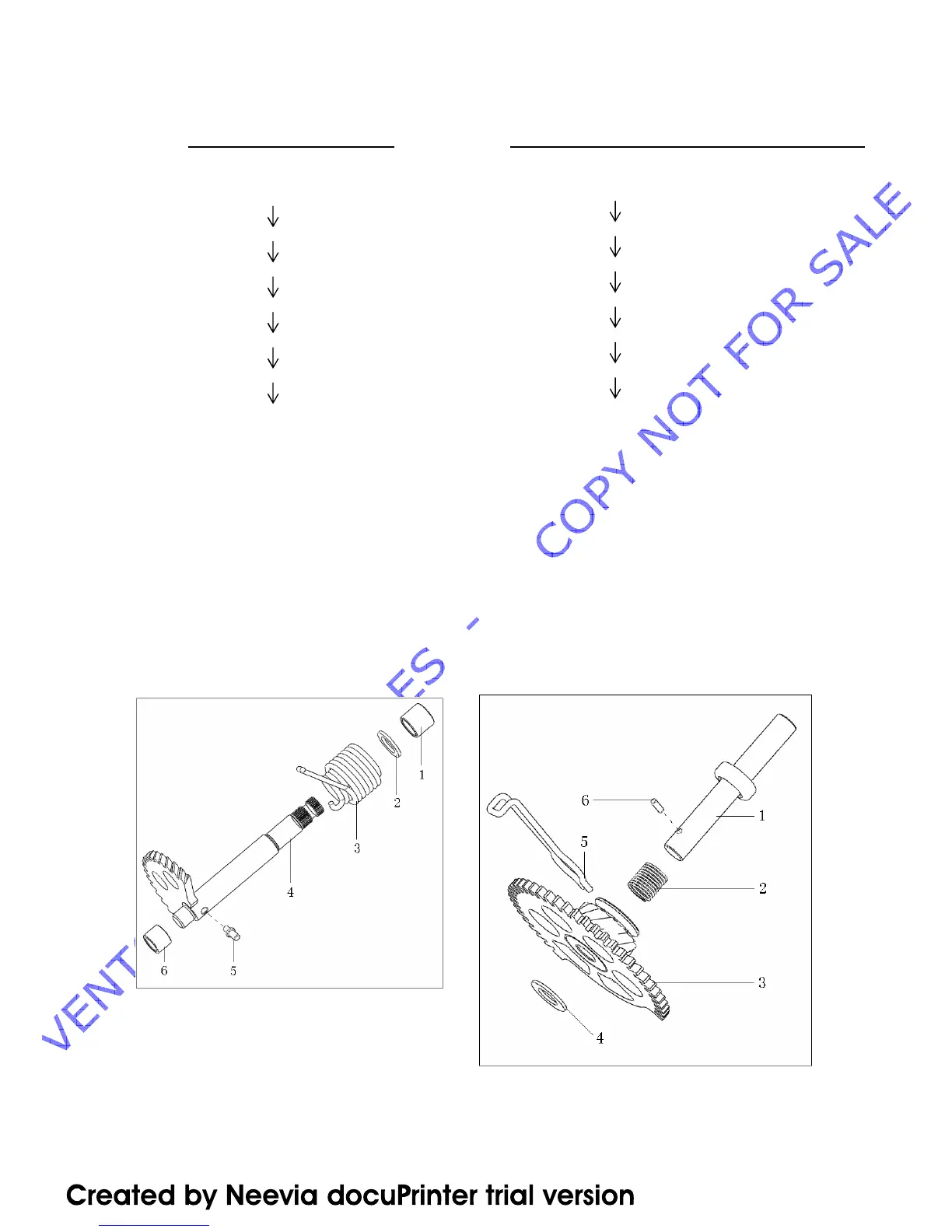

KICK SHAFT ASSEMBLY
REMOVAL
Kick start shaft assy.
Bush6
Bush1
Gasket2
Spring3
Pin5
Kick start shaft4
INSTALLATION
The installation sequence is the reverse of
removal.
NOTICE
• Daub bush1with proper lubrication to
install it.
• Daub shaft end with proper lubrication
to install bush6.
• Be sure to install pin proper tightly.
TRANSMISSION GEAR SHAFT ASSEMBLY
REMOVAL
Transition gear shaft assy.
Fixing pin6
Adjustment gasket4
Transition gear assy.3including5
Tension spring2
Transition gear shaft1
Clip 5
Installation
The installation sequence is the reverse of removal.
Notice:
• Before installing transition gear, install clip (5) in
transmission gear groove.
• Transmission gear can turn back well.
