VENTO MOTORCYCLES
Rev no.01/ page 70of 84
CHAPTER 6
ELECTRICAL

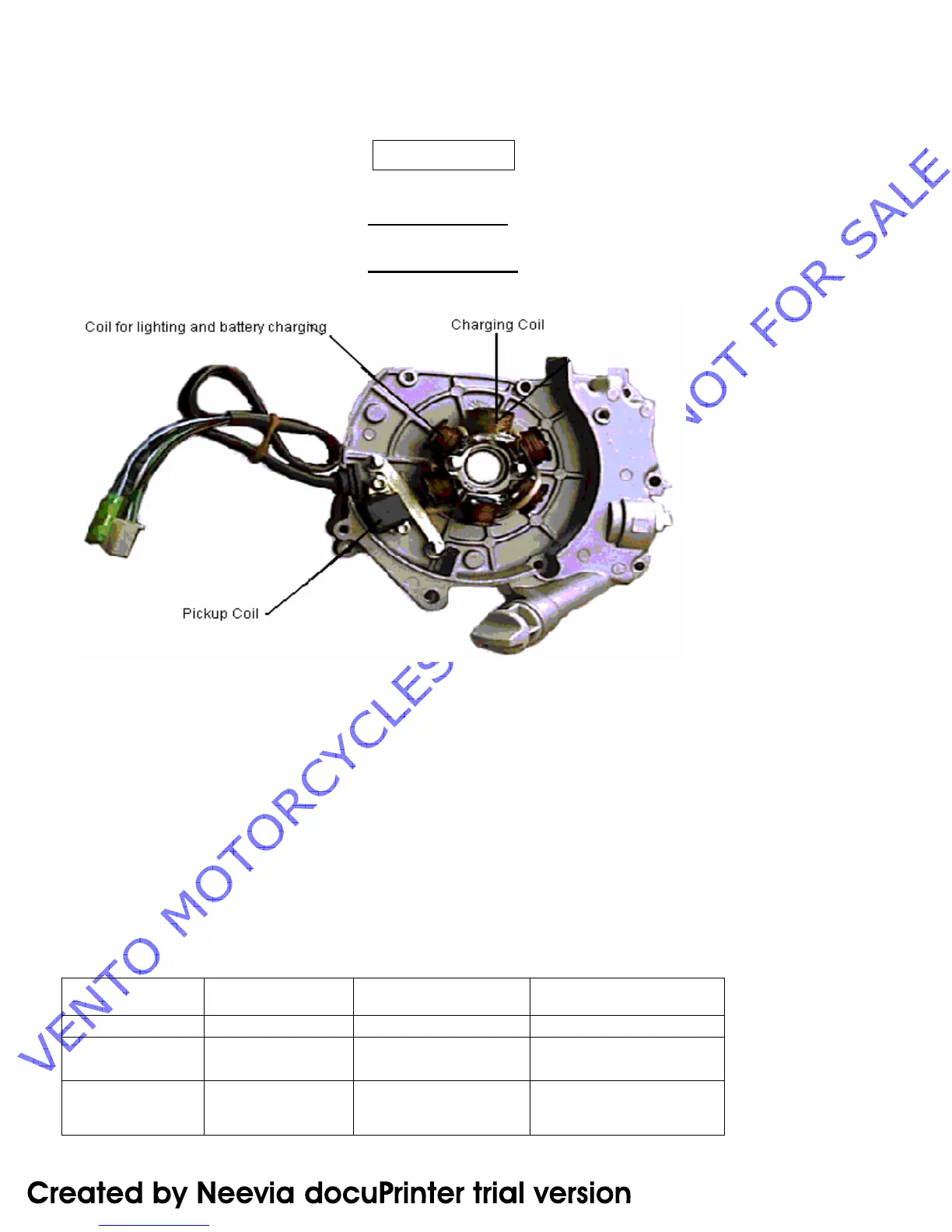

MAGNETO ASSY
CONSTRUCTION:
Magneto assembly consists of a stator & rotor Assy.
Type of stator coils construction: -- star connection.
STATOR ASSEMBLY:
• Six coils of stator: Seven coils for light/battery charging & one coil for charging purpose.
• Pick- up coil & stator assembly is externally mounted on crank case RHcover.
• CDI unit charging and pick-up coil are used for ignition purpose.
• Lighting coil & battery charging coil wire connections goes to Regulator cum Rectifier for
lighting & battery charging purpose.
Magneto wire color code & various coil resistance values are as follows:
S.NO. COIL
DESCRIPTION
RESISTANCE VALUE WIRE COLOR CODE
1. CHARGING COIL
300~500
Ω
Red and black
2. PICK-UP COIL
200±20Ω
AT 20ºC
Blue and white/green
and white
3.
Lighting battery
charging coil
LESS THAN 2 OHMS
LESS THAN 2 OHMS
Green, red, white and
black/black
