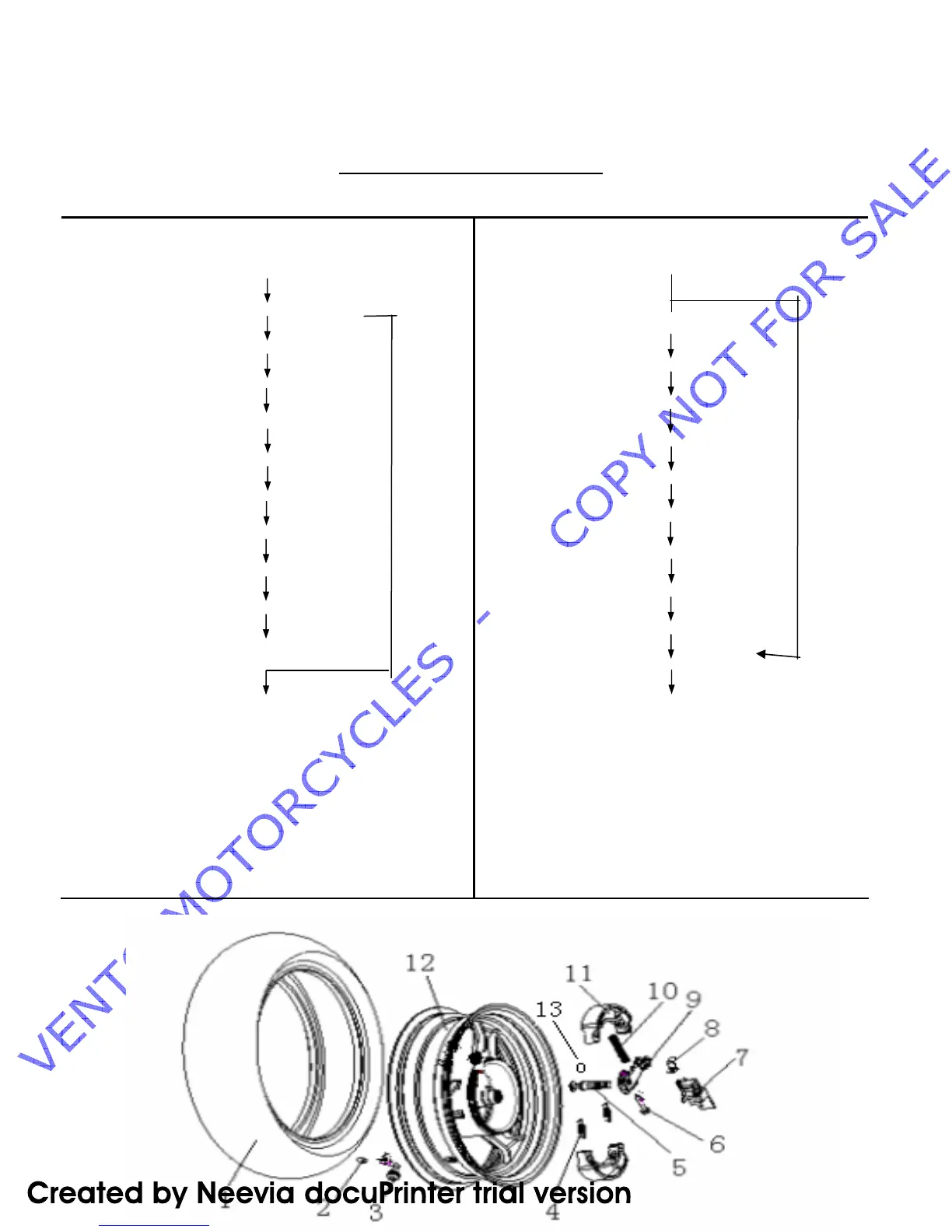

REAR WHEEL ASSEMBLY
Disassembly
Rear wheel assy.
Tire1Rear rim assy.
Brake shoe assy.11
Brake shoe pulling spring4
Brake tension spring10
Anti-dust cover (7)
Anti-dust assembling board (8)
Bolt M6X35 (6)
Rear braking rocker arm (9)
Seal ring (13)
Rear brake camshaft (5)
Rear rim12Valve 3,valve cap 2
Assembly
Rear rim12Valve3valve cap2
Rear brake camshaft (5)
Seal ring (13)
Rear brake rocker arm (9)
Bolt M6X35 (6)
Anti-dust assembling board (8)
Anti-dust cover (7)
Brake tension spring10
Brake shoe pulling spring4
Brake shoe assy.11
Tire (1), Rear rim
Rear wheel assy.
