Vento Phantom R4i - Left Crankcase Accessories Installation

VENTO MOTORCYCLES
Rev no.01/ page 35of 84

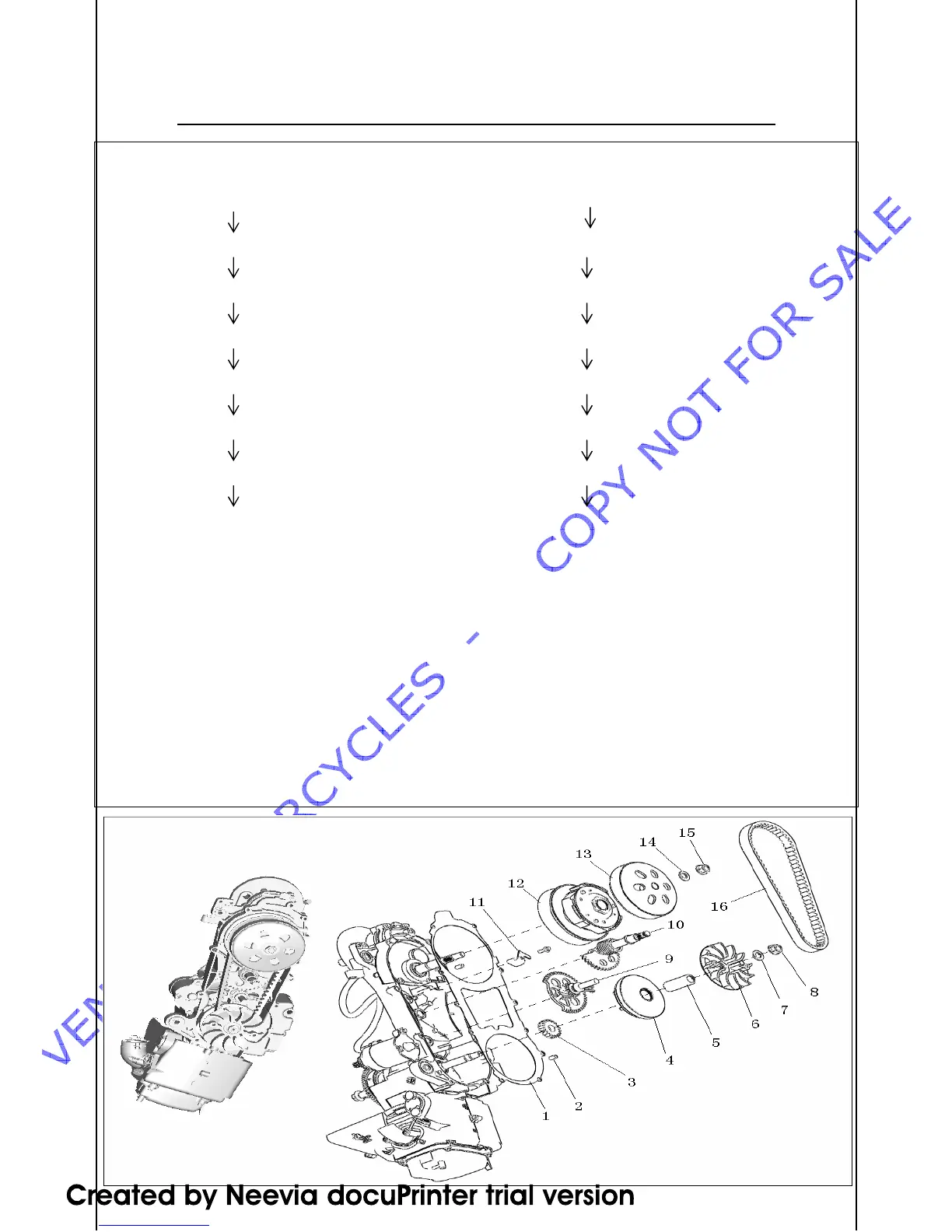

L E F T C R A N K C A S E A C C E S S O R I E S I N S TA L L AT I O N
REMOVAL INSTALLATION
NUT8Washer7Drive Impeller6 Starting gear sector assy.9Kick starting gear assy.10
Nut15CVT nut washer14Centric disc13 Starter spring plate11
V –Belt (16Driven wheel disc assy.12 Starter driven gear3
Pin2Gasket1 Drive wheel assy.4Bush5
Bush5Drive wheel assy.4 Pin (2) Gasket1
Starter driven gear3 Drive Impeller6Washer7Nut8
Starter spring plate11 V-Belt16Driven wheel disc assy.12
Kick starting gear assy. (10) Starting gear sector assy.9 Centric disc13Washer14Nut15
NOTE
►When installing starter gear wheel and kick start gear assy. Assemble with little grease; keep arrow mark on
transmission gear dead against crankshaft, align kick start gear dead against marking point on transmission
gear, carefully pull kick start shaft spring to correct position with special tool, be careful that spring doesn’t
turn back; position starting spring correctly and tighten the nut with specified torque 10~12NM.
►When installing V-Belt, rotate driven wheel assy anticlockwise install V-Belt into groove of driven wheel ,
then cover driving impeller groove with V- Belt and install driven wheel assy. into input axes, and then
assemble centric disc, dish washer and nut.
►Finally, tighten lock nut (15)and nut8with specified torque 45~55NMand then release driven wheel
disc freely. Assembled bush slides freely and convex side of washer7and washer14should towards out
side.
