VENTO MOTORCYCLES
Rev no.01/ page 34of 84

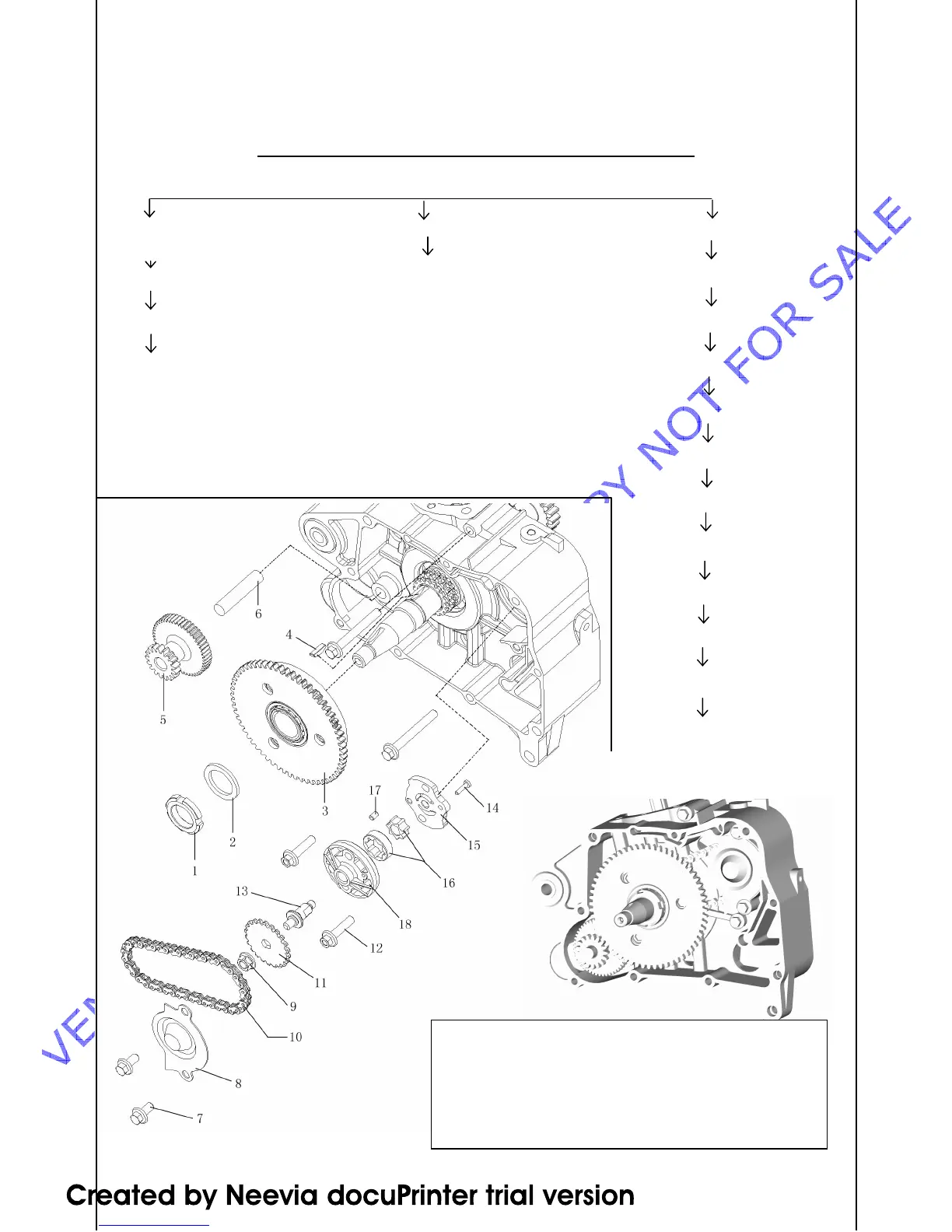

R I G H T C R A N K C A S E A C C E S S O R I E S
REMOVAL
Locknut1 Electric start transition gears5 Bolt7
special tool T05
Gasket2 Electric start transition gear shaft6 Oil pump sprocket end cover8
Start clutch complete (3 Nut9
Half round plate4 Oil pump chain (10)
Oil pump sprocket wheel11
Bolt12
Special Screw 13
screw14
Oil pump cover15
Rotor16
Pin17
Oil pump cover18
Specified Torque value
1. Clutch locknut: 35~40N.M
2. Oil pump fixing bolt: 10~12 N.M
3. Sprocket wheel locknut: 10~12 N.M
4. Sprocket wheel end cover bolt: 8~10 N.M
5. Pump cover fixing screw: 3~5 N.M
