Connecting a DSS Expansion Module 2-4
Chapter 2: Installing the IP Phone
Edge 5000 Installation / Configuration Guide
Connecting a DSS Expansion Module
The IP Phone can be equipped with a 12-button Expansion Module to increase the number of
flexible buttons available to the user. With the Expansion Module, the number of buttons
available is:
36 flexible buttons
Note all buttons may be assigned for line or feature access.
The Expansion Module is available in two models, IP8812DSS with paper labels and the
IP8812LSS, which employs an LCD for the labels. With the IP8812LSS, the LCD displays 10
characters for the label.
Both models connect to and receive power from the IP5000 series phone. Installation for both
models is described below.
• Disconnect the IP phone from power and the LAN
• Remove the Foot Stand from the IP phone
• On the bottom of the IP phone, remove the plug from the Expansion Module port.
• Plug the cable from the Module into the Expansion Module port.
• Align screw holes in Module Connecting arm with the mounting holes in the IP phone.
• Insert and tighten screws to attach the Expansion Module to the IP phone. Caution,
do not over-tighten as this may strip the plastic in the IP phone.
• Install the Foot Stands on the Module and IP Phone, see "Attaching the Foot Stand"
on page
2-3.

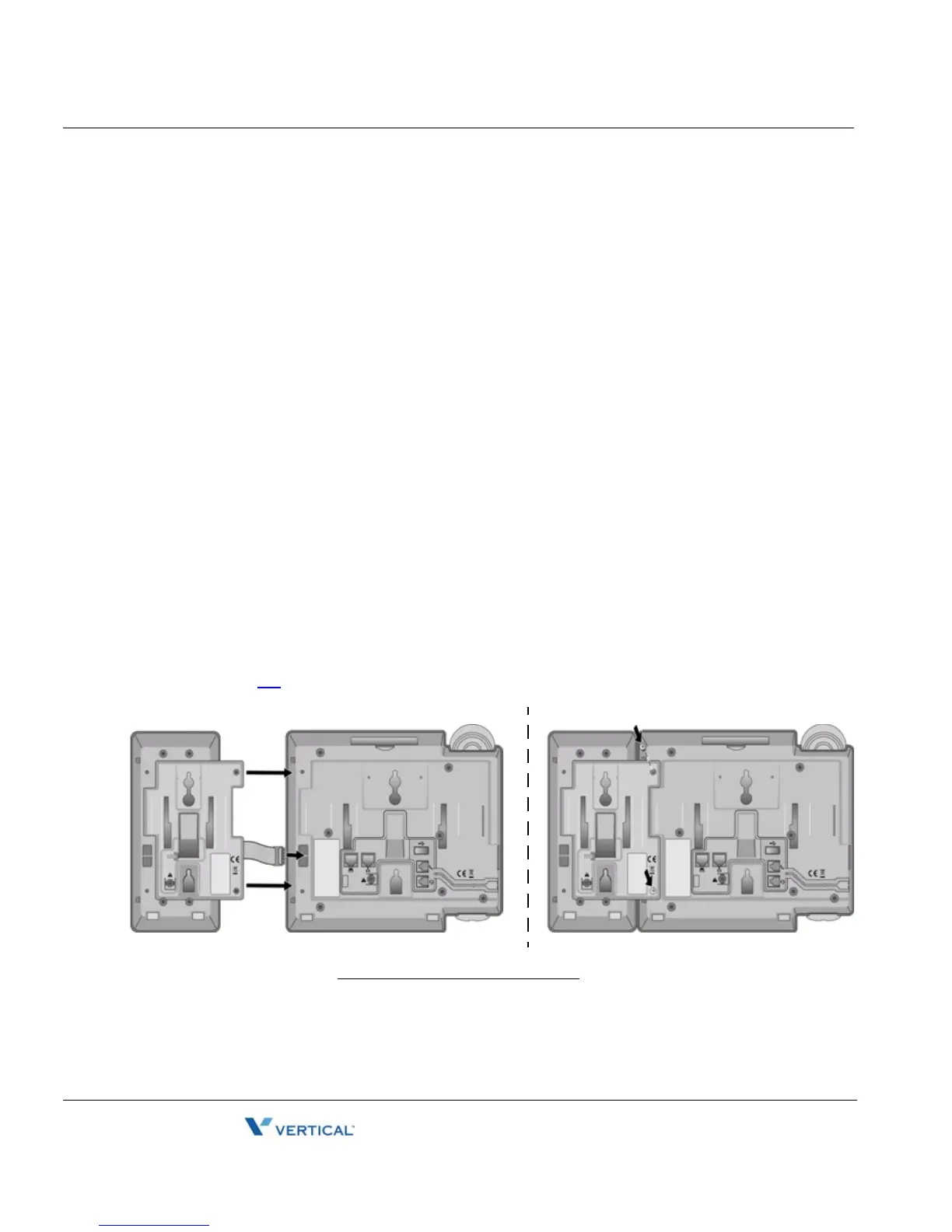

Expansion Module Installation
