REV : 3
REV DATE : 4/19
DPN003191
Page :1 /1

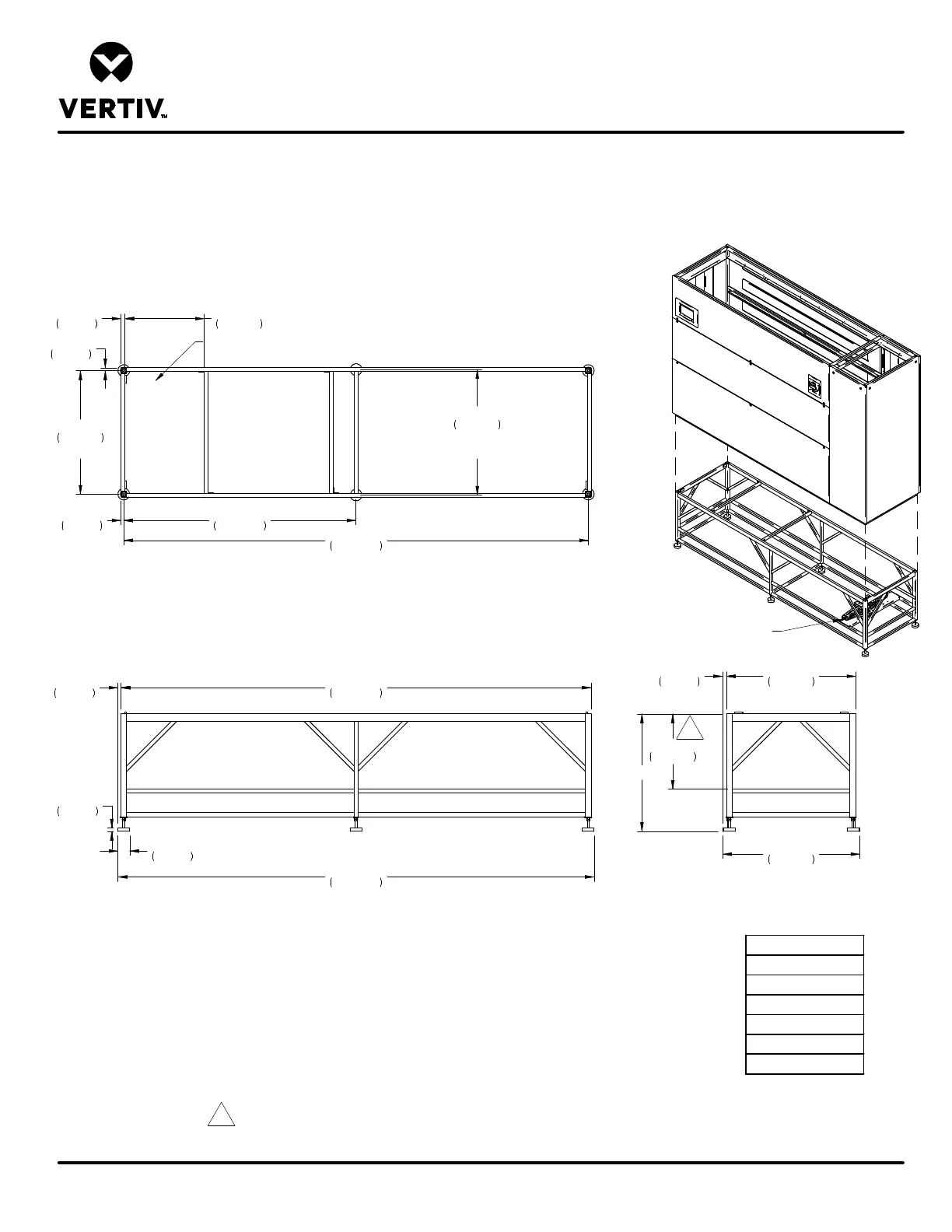

DOWNFLOW MODELS CW106 & CW114 W/ EC FANS
Form No.: DPN001040_REV4
FLOORSTAND & FLOOR PLANNING DIMENSIONAL DATA
LIEBERT CW
Piping access
area
NOTE:
1. This floor stand should be used when EC fans are intended to be lowered into
the floor stand. The standard Liebert CW floor stand can be used “if” the fans are to
remain in their original raised position.
2. All paneled sides of unit overhang floorstand 1” (25mm).
3. The floor stand used with EC units is not symmetrical and its orientation to the
Liebert CW is critical for lowering the EC fans. Unless the floor stand is installed in
the correct position, the blowers will not lower into the floor stand.
4. Jack and jack support are shipped loose and are intended to be placed into position
under each fan and utilized to lower or raise that fan as needed.
5. Does not apply to 24" high floorstand.
*Leveling feet are provided with
u
1-1/2” (38mm) adjustment from nominal height “A”.
See note 4
Height in ( mm )
A*
24 (610)
30 (762)
36 (914)
42 (1067)
48 (1219)
SUPPORT FEET CENTERS
20 1/4"
514mm
1"
25mm
3/4"
19mm
31 1/2"
800mm
CENTER FEET
3/4"
19mm
59 1/4"
1505mm
118 1/2"
3010mm
3/4"
19mm
120"
3048mm
7/8"
23mm
3"
76mm
TYP.
121 1/2"
3086mm
OVERALL
32"
813mm
CENTER FEET
TYP. (2) PLACES
33"
838mm
1"
25mm
A*
19 1/4"
489mm
35"
889mm
OVERALL
5
