REV : 3
REV DATE : 6/17
DPN003222
Page :1 /1
DOWNFLOW CW038 - CW041 W/ EC FANS & FRONT DISCHARGE
Form No.: DPN001040_REV4

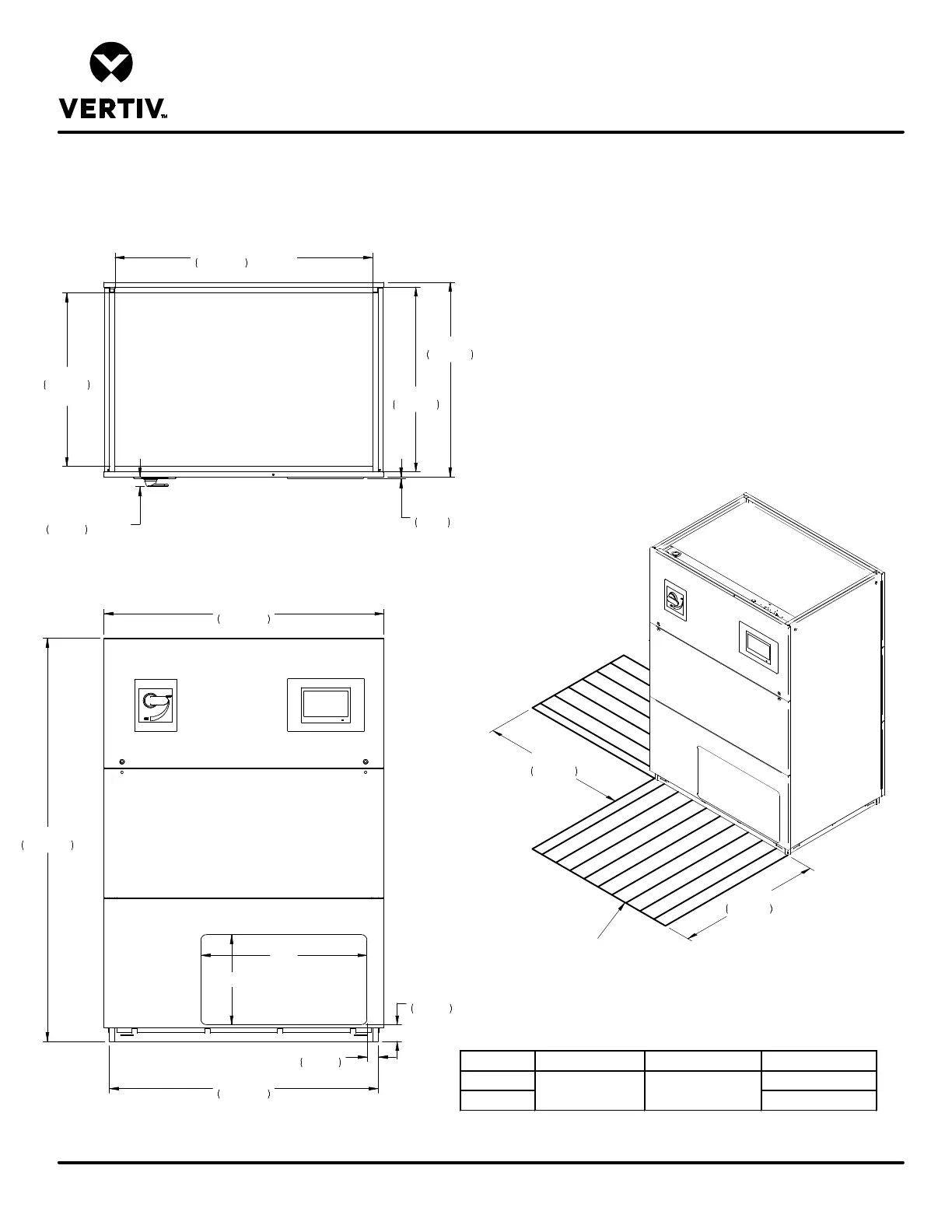

CABINET DIMENSIONAL DATA
LIEBERT CW
Notes:
1. Customer piping and wiring connections
a) Standard bottom connections require unit to
be placed on a minimum of a 9" floorstand.
b) If unit is to be placed directly on the
floor, additional modifications are required
to relocate customer connections. Contact
your local Liebert Sales Representative.
H
W
2"
51mm
3"
76mm
48"
1219mm
AIR DISCHARGE
OPENING
72"
1829mm
50"
1270mm
33"
838mm
35"
889mm
31"
787mm
Opening
46"
1168mm
Opening
Striated area indicates the
recommended minimum
clearance to be provided
for component access.
36"
914mm
RETURN AIR
OPENING
TOP VIEW
FRONT VIEW
1 3/4"
44mm
Handle
5/16"
8mm
Bezel
36"
914mm
Model H W Dry Weight lbs. (kg)
CW038 840 (381)
CW041 900 (408)
16-1/16" (408mm) 29-11/16" (754mm)
