UPFLOW MODELS CW106 & CW114 LOW VOLTAGE
ELECTRICAL FIELD CONNECTIONS
LIEBERT CW
Form No.: DPN001040_REV4
REV : 0
REV DATE : 2/18
DPN004551
Page :1 /2

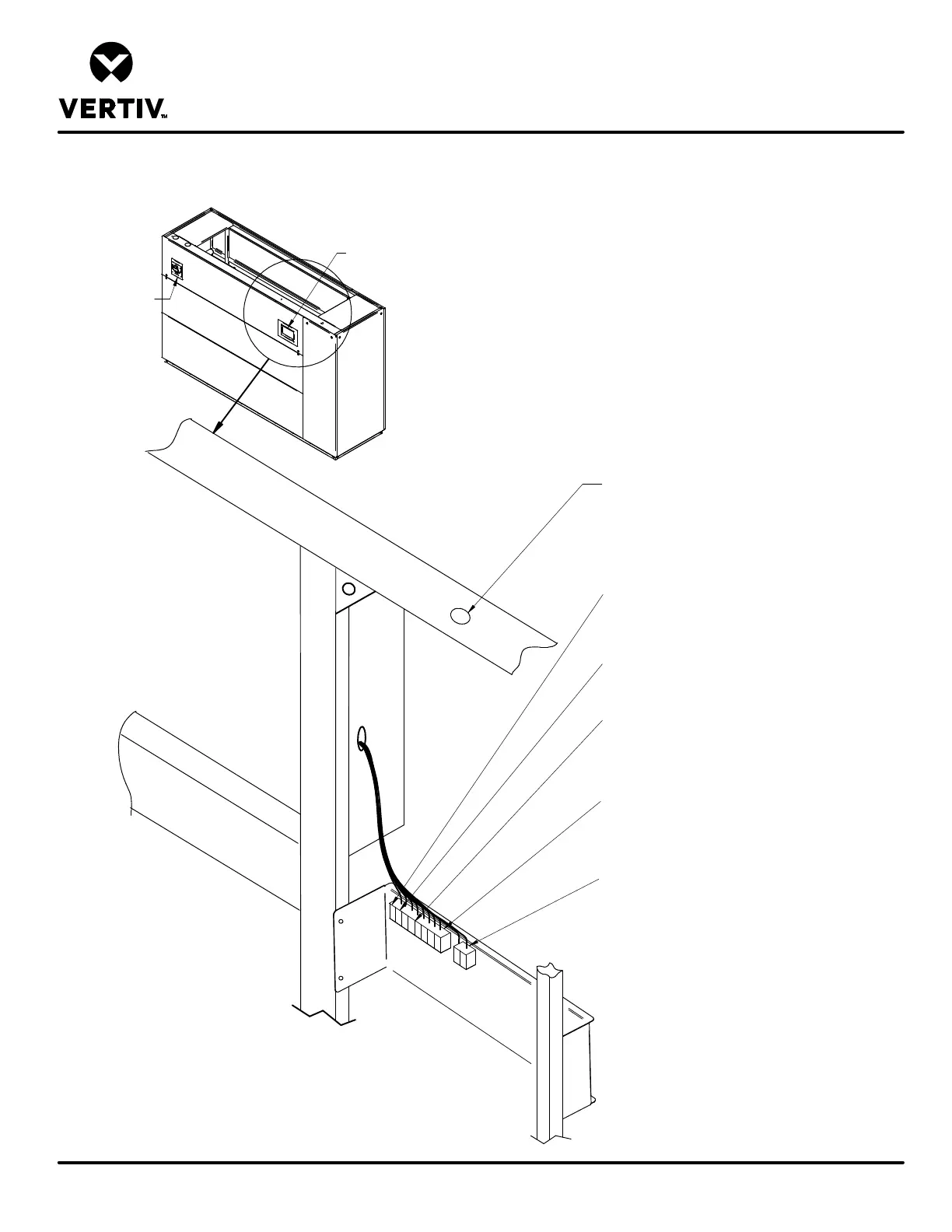

Monitoring panel.
Knockout for low voltage
wiring connections in
top frame member.
Knockout size 7/8" (22mm)
Disconnect Switch
Replace
field supplied 24V Class 1 wire.
having a minimum 50VA rating. Use
37 + 38 with normally closed switch
existing jumper between terminals
Remote unit shutdown.
alarms.
supplied 24V. Class 1 wire for special
Field
Special alarm connections.
common alarm relay (R3).
which are factory connected to
supplied 24V. Class 1 wiring to
Common alarm connection.
Field
common alarm pigtails 75 + 76
NOTE: Refer to specification sheet for full load amp and wire size amp ratings.
Smoke detector alarm connections.
Field
supplied 24V. Class 1 wire to remote alarm circuits.
Factory wired terminals from optional smoke detector
are #91-comm., #92-NO, and #93-NC. Supervised
contacts, 80 & 81, open on sensor trouble indication.
This smoke sensor is not intended to function as,
or replace, any room smoke detection system
that may be required by local or national codes.
Liqui-Tect shutdown and dry contact.
On Liqui-Tect
activation, normally open dry contact is closed across
terminals 58 & 59 for remote indication (Liqui-Tect
sensor ordered separately). 1 AMP, 24VAC max load.
Use Class 2 field supplied wiring.
To Next Page
